Description
Product Description

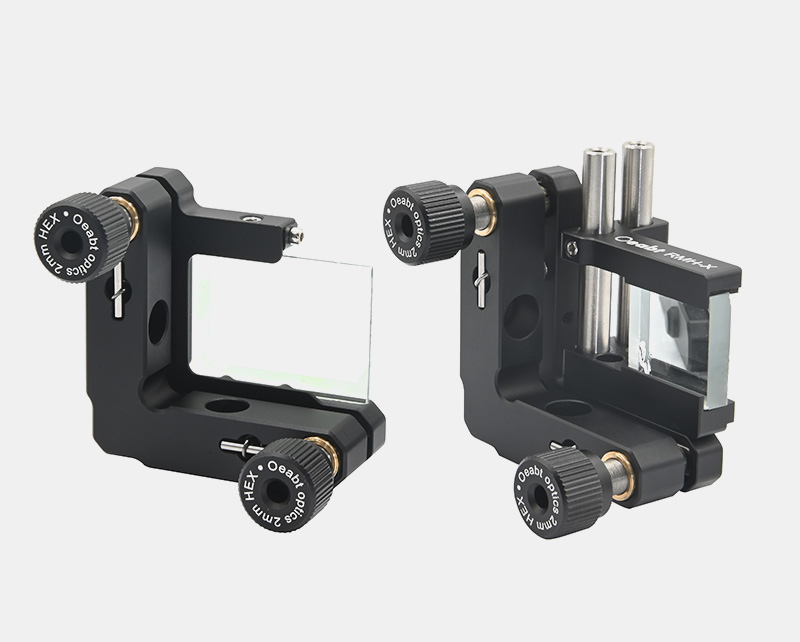

Designed for mounting and clamping square or rectangular optical components.
Optical components with a thickness of ≥1mm are fixed on the front of the front plate via nylon set screws.
Provides ±4° pitch/yaw adjustment.

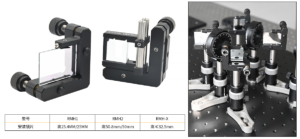

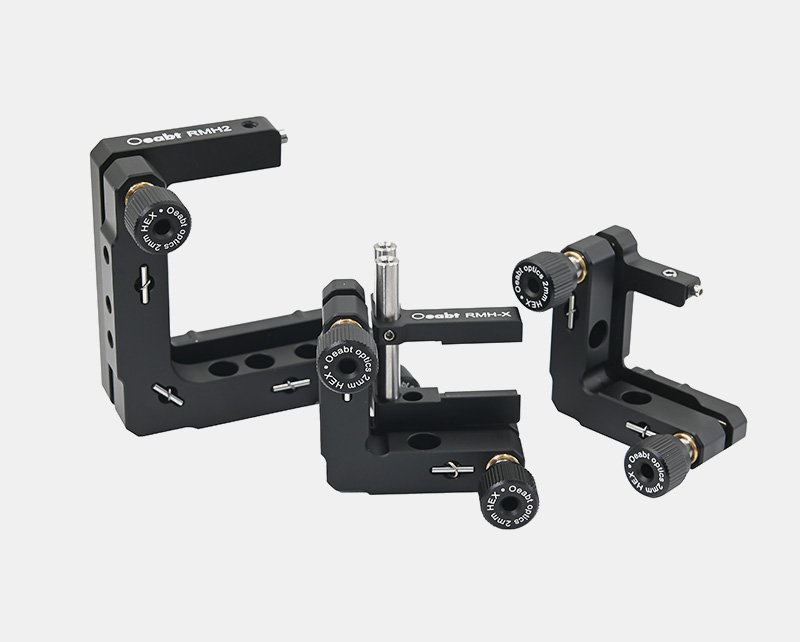

Offers fixed mounting height options for 1-inch or 2-inch components.
RMH-X features adjustable height, suitable for mounting rectangular components with a maximum height of ≤32.5mm and a maximum width of 65mm.
The RMH series adjustment mirror mounts are specifically designed for square or rectangular optical components, such as square mirrors, diffraction gratings, plate beam splitters, and cylindrical lenses.
Model | RMH1 | RMH2 | RMH-X |
| Dimensions | 49.1*19.8*49.9mm | 78.3*22.5*76.5mm | 49.9*19.0*55.3mm |
Mounting Lens Height | 25.4mm/25mm | 50.8mm/50mm | ≤32.5mm |
| Fixing Method | Set screw fixation | Set screw fixation | Pressure arm clamping |
Weight | 65.7g | 117.5g | 87.5g |
| Adjustment Range | ±4° | ±4° | ±4° |
Adjustment Accuracy | 10.2mrad/rev | 10.2mrad/rev | 10.2mrad/rev |
| Material | 7075 aluminum alloy | 7075 aluminum alloy | 7075 aluminum alloy |
Technical Description
(1) The RMH series adjustment mirror mounts are specifically designed for square or rectangular optical components, such as square mirrors, diffraction gratings, plate beam splitters, and cylindrical lenses. The mount is equipped with two M6*0.35 adjusters, providing angular displacement (pitch and yaw) adjustment of the mirror surface.
(2) It offers mount options with fixed heights (1-inch or 2-inch) and adjustable height (≤32.5mm in height, maximum 65mm in width). The mount fixes rectangular optical components (thickness ≥1mm and ≤7.6mm) through 2.0mm hex set screws and a flexible pressure block mechanism. The screws press the flexible pressure plate along the edge of the optical component to ensure stable clamping and prevent component sliding.

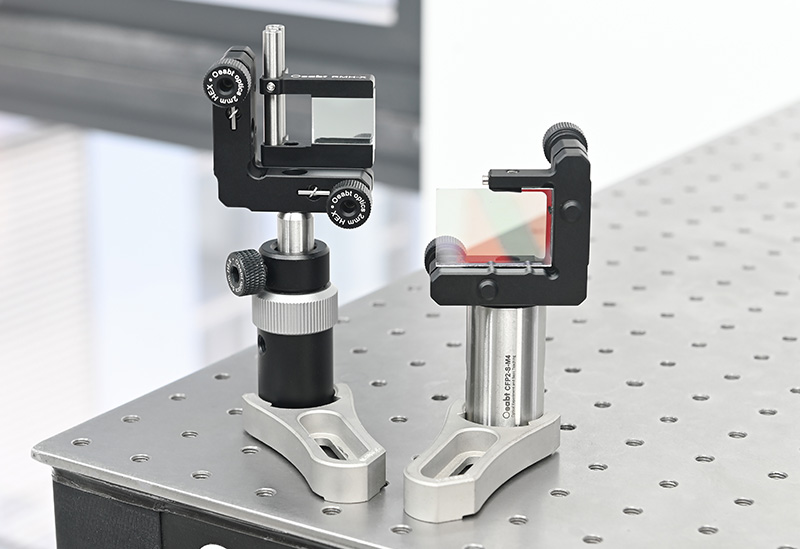

(3) The mounting base is also equipped with two M4 counterbores, enabling horizontal or vertical installation. It is used for mounting Ø12mm stainless steel rods.

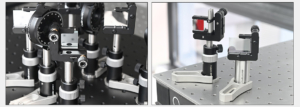

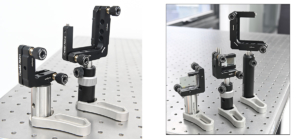

Application Example
Engineering Drawing Download
