Product Description Mount single or multiple optomechanical components compactly onto a single post column. Provide a spaceefficient platform to elevate optical components above dense areas of the optical table. Support both center mounting and offset mounting.
PJ30-A Series Post Mount Beam
$11.80
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- S/N0002_3 Universal Joint
- CRD-25 30mm Cage Rotation Mount
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Mount single or multiple optomechanical components compactly onto a single post column.
- Provide a spaceefficient platform to elevate optical components above dense areas of the optical table.
- Support both center mounting and offset mounting.
- Feature standard M4 mounting holes and counterbored slots.
The PJ30A Series Post Mount Beam is a spacesaving solution ideal for crowded optical tables and breadboards. These mounting beams are compatible with our 1/2inch and 1inch diameter posts, allowing multiple mounts to be installed as compactly as possible on a single post, eliminating the need for multiple posts and post holders.
| Model | PJ30A2 | PJ30AB |
| Dimensions | 86.4×15.3×9.5 mm | 86.4×15.3×9.5 mm |
| Counterbore / Counterbored Slot | 1×M4 counterbore; 2×Ø4.5×30.2 mm counterbored slots | 1×M4 counterbore; 2×Ø4.5×30.2 mm counterbored slots |
| Counterbored Slot Orientation | Same direction | Opposite directions |
| Weight | 23.3 g | 22.7 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
The post mount beam is a space-saving mounting accessory that installs multiple optical components in limited space without extra posts and post holders, making it ideal for compact optical tables and breadboards.

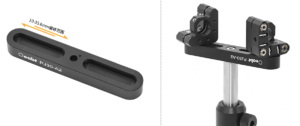

The mount beam enables alignment of optomechanical components in-line or adjustment of offset individual components via a mounting post. PJ30A2 has counterbored slots oriented in the same direction, keeping optical mounts coplanar and allowing mounting on either side of the center hole, with an offset range of 10–35.6 mm.

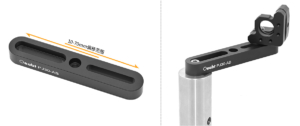

PJ30-AB has counterbored slots oriented in opposite vertical directions, allowing optical mounts to be installed upright or inverted. The post mounting position can extend from the center counterbore into one side’s counterbored slot, extending the offset range to 10–70 mm.

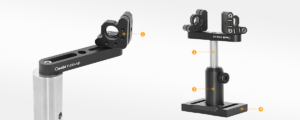

Assembly

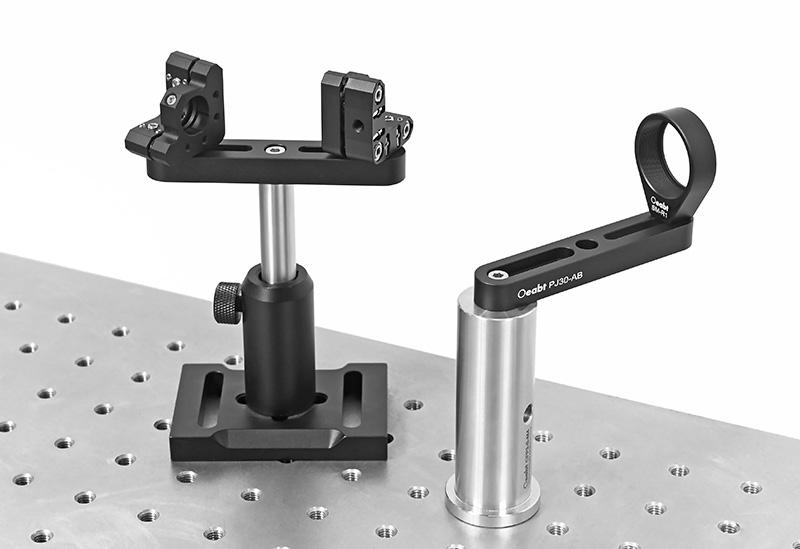

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | PJ30-A2, PJ30-AB |
| Optic Type |
