Product Description
Thick backplate and heavy-duty springs for high stability.
Compatible with mounting Ø2-inch (50mm) optical components.
Provides ±4° pitch and yaw adjustment.
TAMH-T2: SM2 (2.035”-40) internal thread, supplied with 2 retaining rings.
TAMH-S2: Ø52.5mm smooth bore, fixed with set screws.
M4 counterbore for rod mounting.
Precision thickened design: Adopts a thick backplate and heavy-duty spring structure, providing a stable reference platform for optical components and effectively suppressing micro-movement.
。
| Specifications | 80.580.525.5mm (excluding adjusters) |
| Adjustment Range | ±4° (pitch & yaw), 5mm Z-axis translation |
| Adjustment Accuracy | 9.77mrad/turn |
| Adjuster Thread | M6*0.35 (non-lockable) |
| Screw Hole Type | 1 M4 counterbore |
| Material | 7075 aluminum alloy |
| Model | TAMH-T2 | TAMH-S2 |

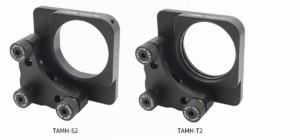

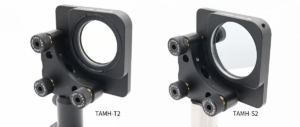

| Central Aperture | SM2 (2.035”-40) internal thread | Ø52.5mm smooth bore |
| Compatible Components | Ø2-inch, thickness ≤10mm | Ø2-inch, thickness ≥3mm |
| Weight | 172.8g | 175.6g |
TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
Thick backplate and heavy-duty springs for high stability.
Compatible with mounting Ø2-inch (50mm) optical components.
Provides ±4° pitch and yaw adjustment.
TAMH-T2: SM2 (2.035”-40) internal thread, supplied with 2 retaining rings.
TAMH-S2: Ø52.5mm smooth bore, fixed with set screws.
M4 counterbore for rod mounting.
Precision thickened design: Adopts a thick backplate and heavy-duty spring structure, providing a stable reference platform for optical components and effectively suppressing micro-movement.
Technical Description
(1) Offers an adjustment range of ±4° for both pitch and yaw, with an adjustment precision of 9.77mrad per turn. When using three adjusters simultaneously, linear Z-axis translation of 5mm can be achieved. Compared with conventional optical adjustment mounts, this mount features a thicker backplate and tighter springs, enhancing stability. It is an ideal choice for laser optical path construction, as well as the installation of mirrors and filters.
(2) TAMH-T2: Features an SM2 (2.035”-40) internal thread at the center, compatible with SM2 threaded components. Supplied with 2 retaining rings, it can securely mount lenses with a thickness of ≤10mm.

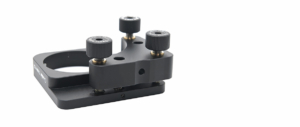

(3) The base is equipped with an M4 counterbore, allowing direct installation on rods for quick and easy integration into existing optical platforms or breadboard systems

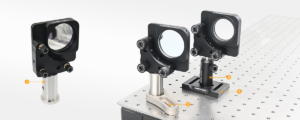

Assembly

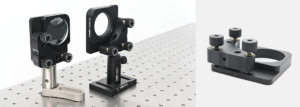

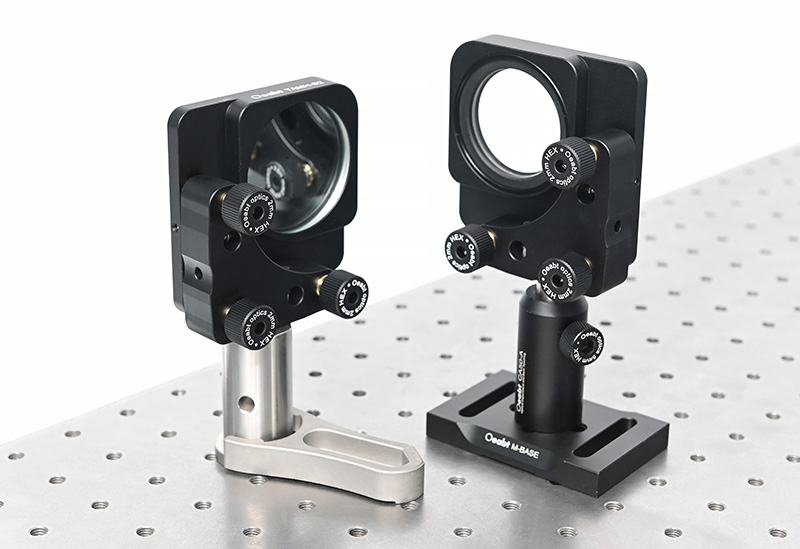

Application Example
Engineering Drawing Download
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | TAMH-T2, TAMH-S2 |
| Optic Type |
