FFMA Filter Holder

Description

• Suitable for 50mm square filters and compatible with square filters larger than 50mm;
• Filter mounting thickness: 1~5mm;
• Supports through-holes, allowing stacking of multiple filter holders;
• M4 counterbore for rod mounting;

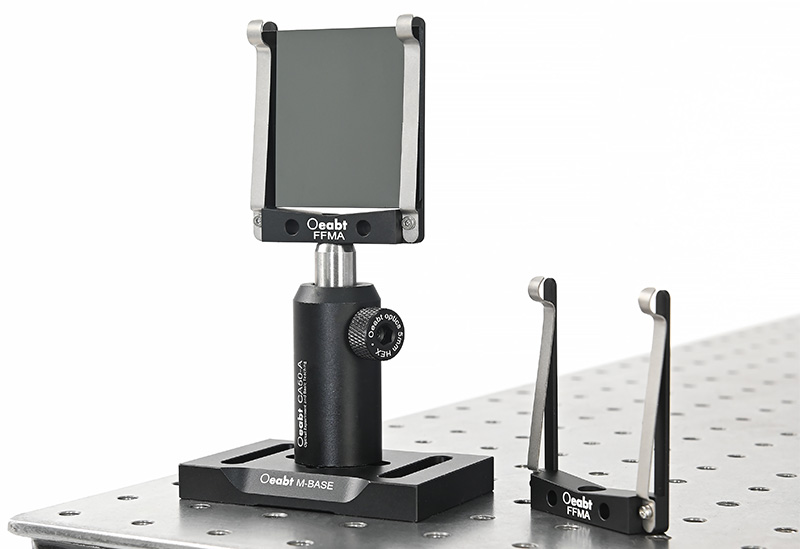

The FFMA Filter Holder is ideal for holding square filters. Its long support arms enhance the stability of the filter.

Technical Description

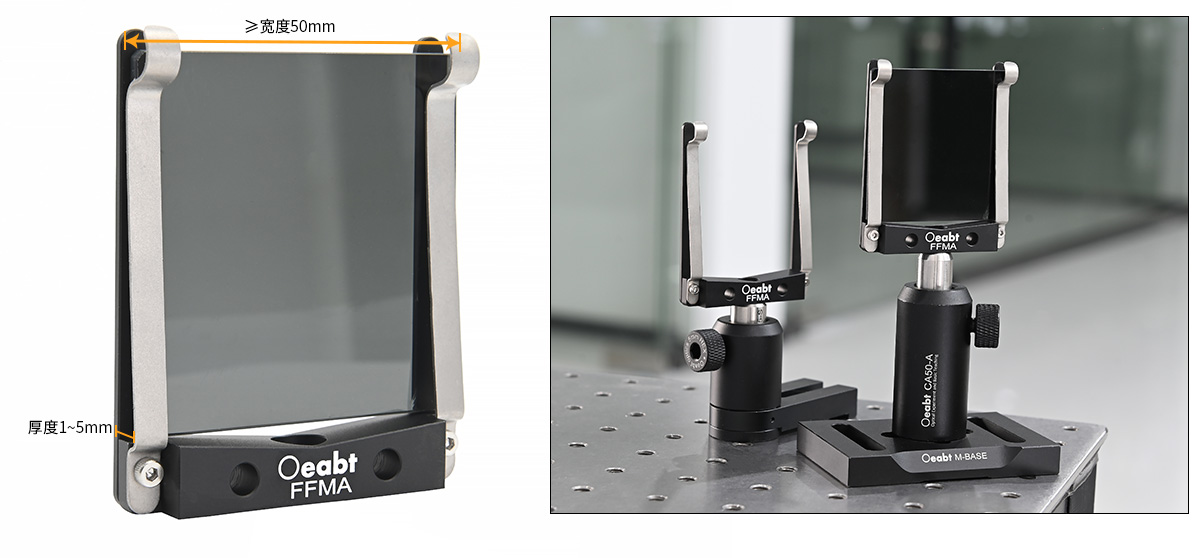

• The FFMA Filter Holder is highly suitable for clamping square filters. Its long support arms provide increased stability to the filter. It is applicable for 50mm and larger-sized square filters. The design takes into account the different thickness requirements of filters and is compatible with optical elements having a thickness of 1~5mm.

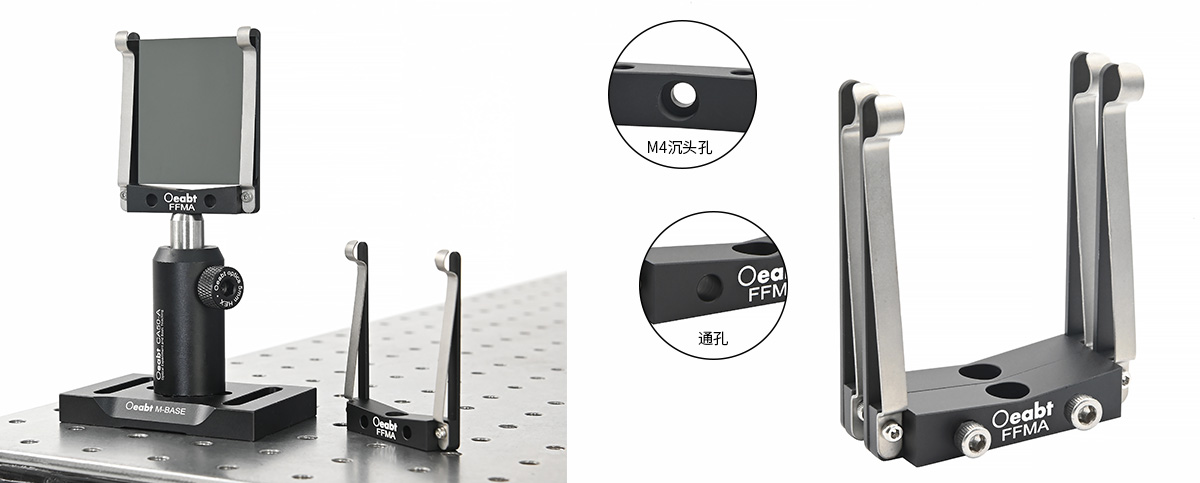

• The center of the mounting holder is equipped with an M4 countersunk hole, which can be mounted on a Ø12mm rod. Additionally, the mounting holder is provided with two through-holes, enabling the stacking of multiple filter mounting bases using M4 long screws to achieve the installation of multi-layer filters.

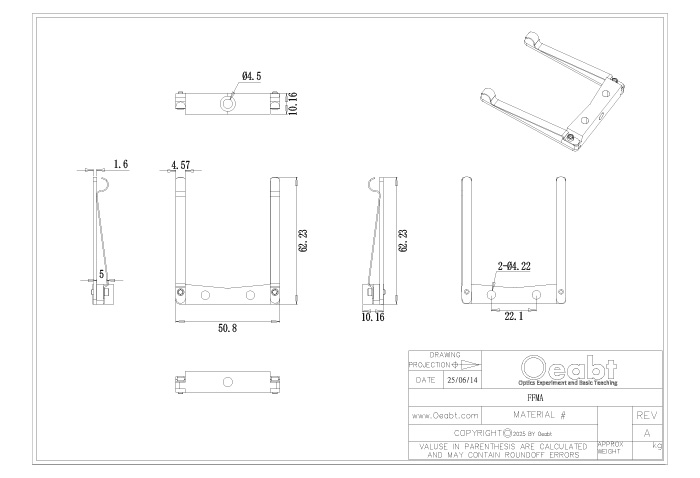

Engineering Drawing
