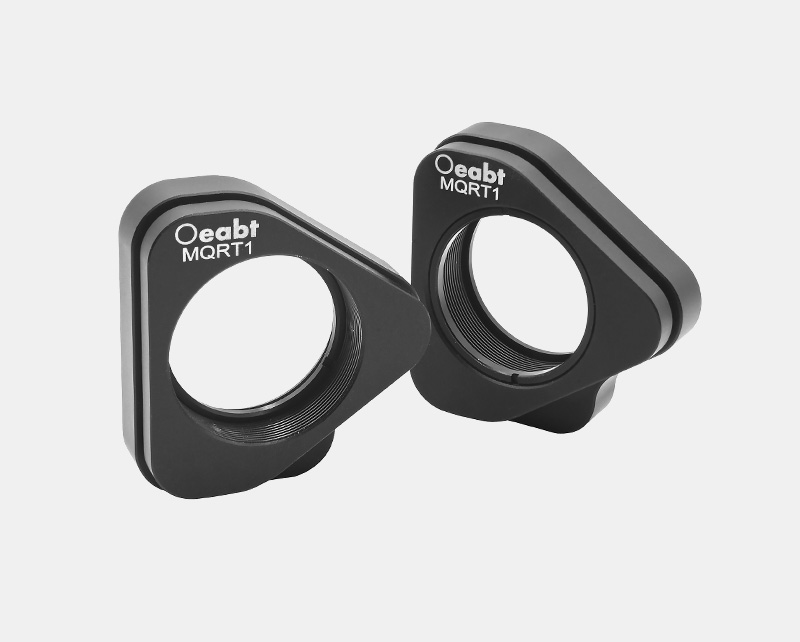

Product Description Removable magnetic front panel. SM1 (1.035”-40) internal thread. Compatible with Ø1-inch optical components with thickness ≤8.8mm. M4 screw hole at the bottom for rod mounting. The MQRT1 consists of a backplate and a removable
MQRT1 Magnetic Quick-Release Mount
$56.60
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
Removable magnetic front panel.
SM1 (1.035”-40) internal thread.
Compatible with Ø1-inch optical components with thickness ≤8.8mm.
M4 screw hole at the bottom for rod mounting.
The MQRT1 consists of a backplate and a removable front panel. By adopting a magnetic coupling mount, it eliminates the tedious alignment process required when reinserting optical components into the device.
Model | MQRT1 |
Dimensions | 41.6*38.2*12.4mm |
| Central Aperture | SM1 (1.035”-40) internal thread |
Compatible Lenses | Ø1-inch optical components with thickness ≤8.8mm |
| Screw Hole Type | 1 M4 screw hole |
Weight | 22.3g |
| Material | 7075 aluminum alloy |
Technical Description
(1)The MQRT1 consists of a backplate and a removable front panel. By using a magnetic coupling mount, it eliminates the cumbersome alignment process needed when reinserting optical components into the device, allowing for replacement without re-alignment. It is suitable for device applications that require high-precision, periodic insertion or removal of a Ø1-inch optical component with thickness ≤8.8mm.

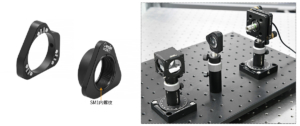

(2)To ensure stability, precision, and repeatability, the mount adopts a three-point contact backplate design. Each contact point is equipped with a ball bearing, which is located in a groove formed by two parallel steel pins, thereby effectively providing support and guidance. This design ensures the secure fixation of optical components and makes the insertion and removal processes smoother and more efficient.

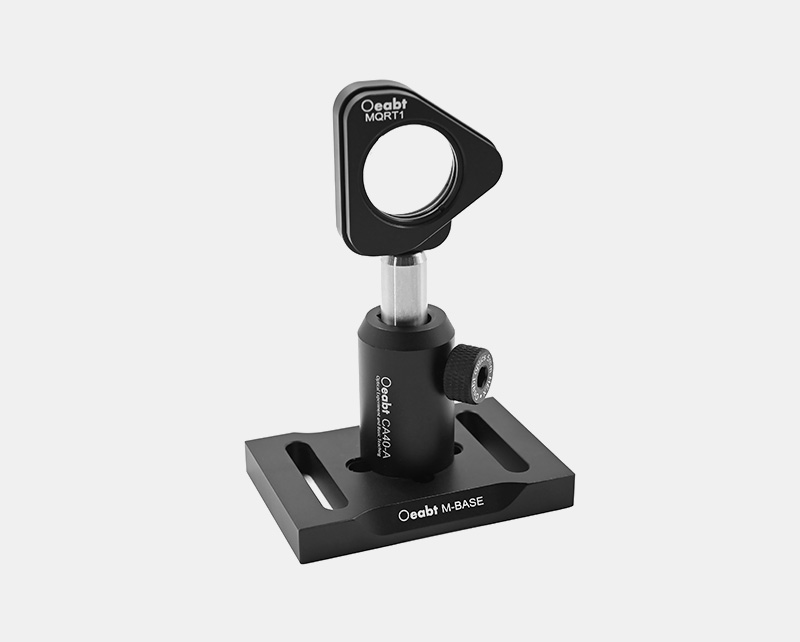

(3)The M4 screw hole at the bottom enables direct compatibility with PCA series Ø12mm rods.

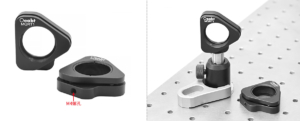

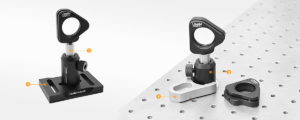

Assembly

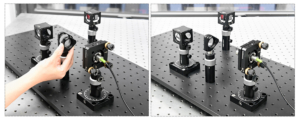

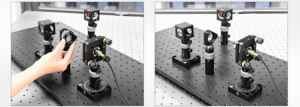

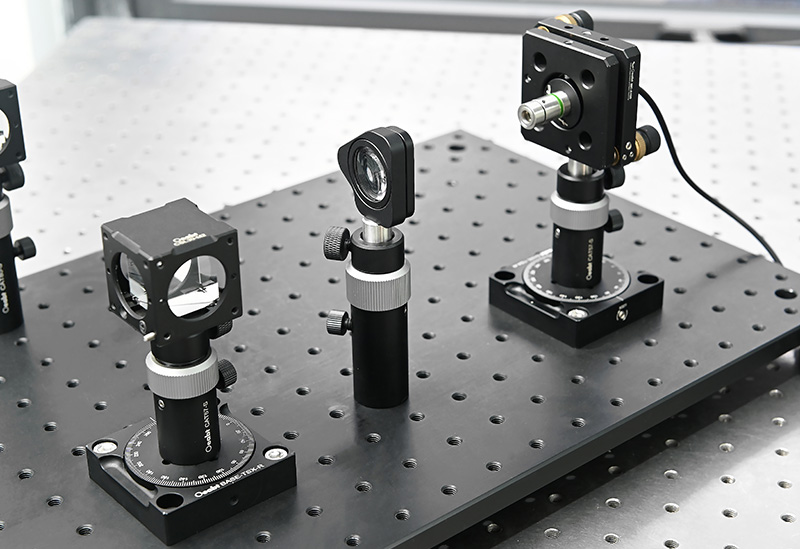

Application Example
Engineering Drawing Download
