This series of optical adjustment mounts can provide ±4° pitch and yaw adjustment. When using three adjusters simultaneously, the mount can also achieve a maximum Z-axis translation of 6.4mm.

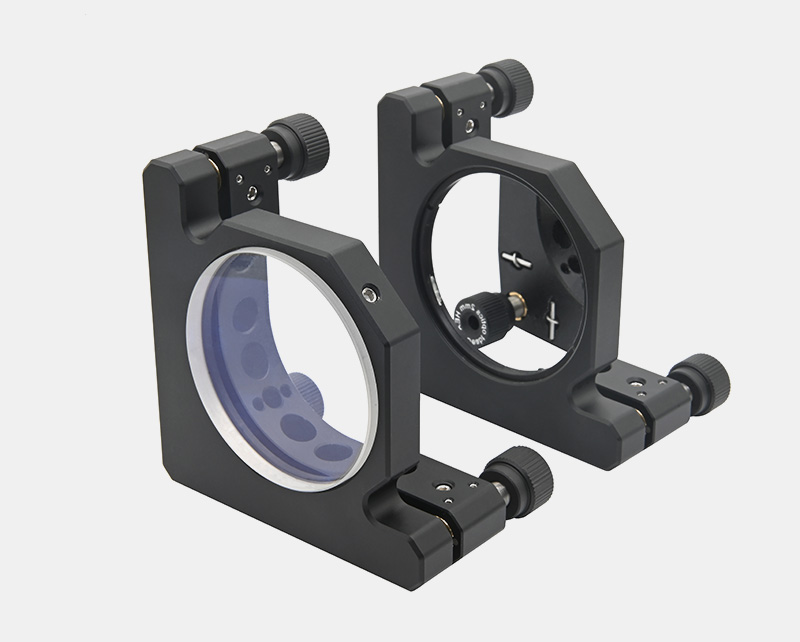

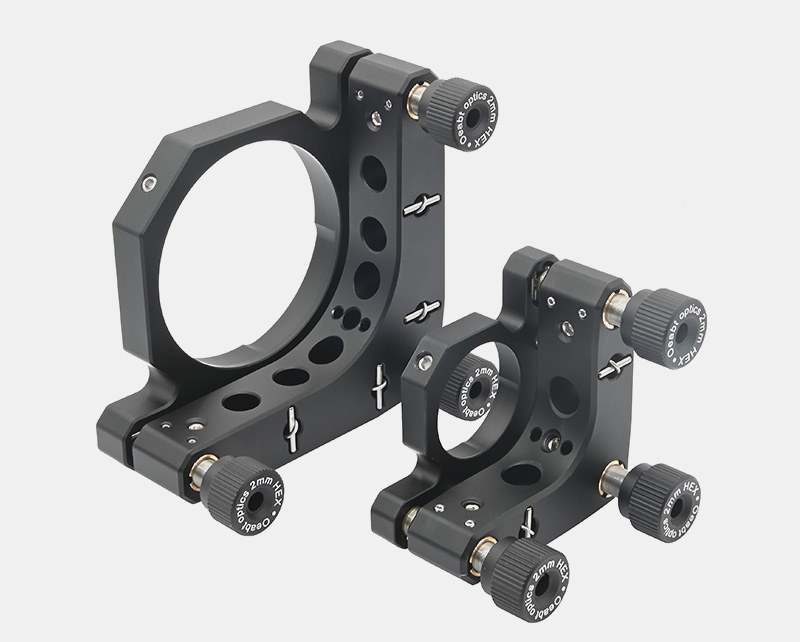

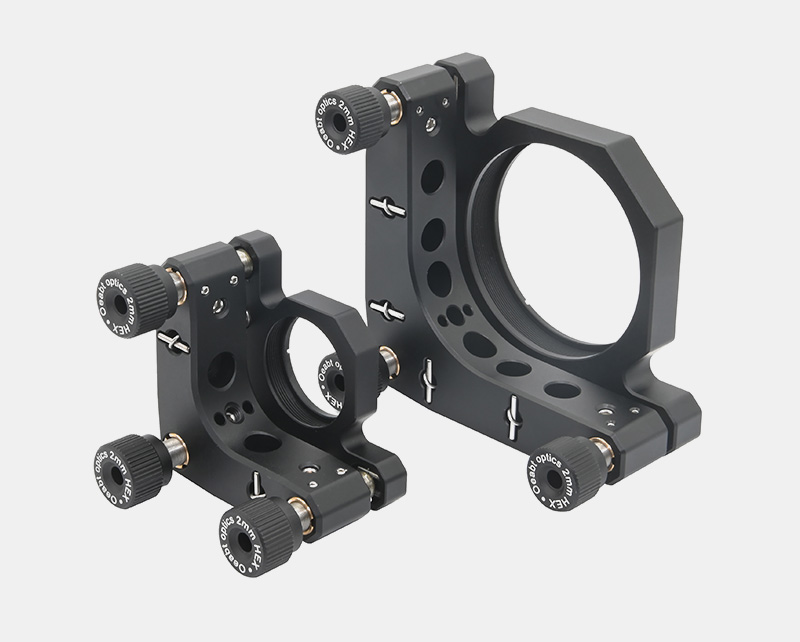

MKTA Series 3-Axis Adjustment Mount
Price range: $59.00 through $78.00
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description

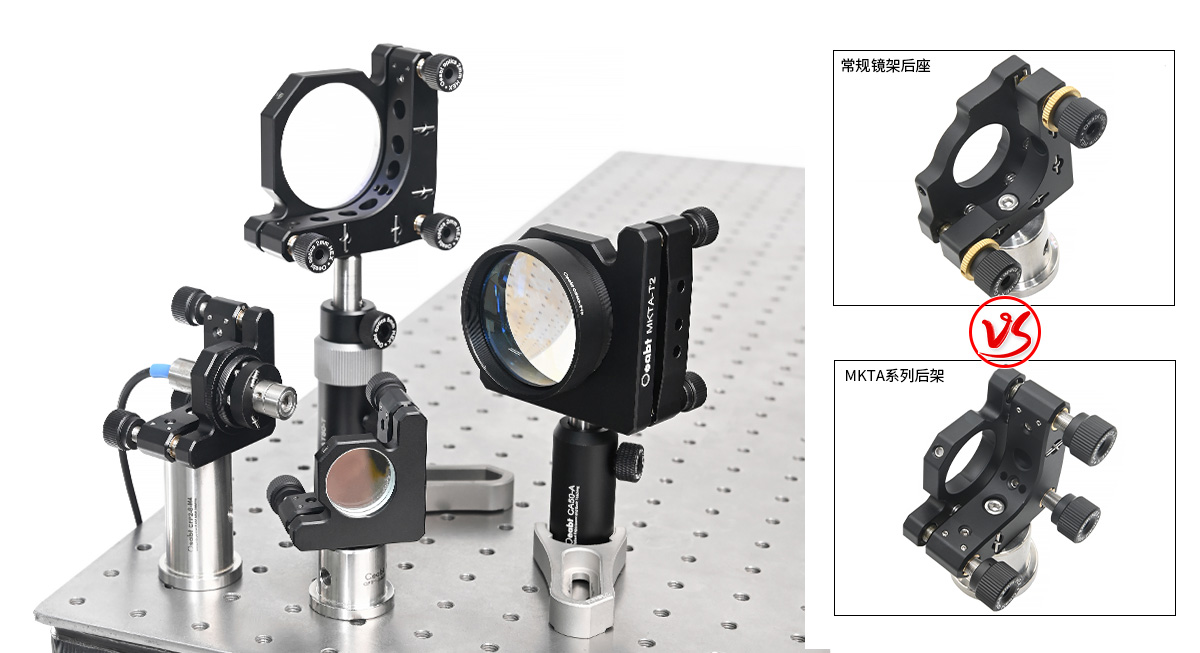

- Compared with conventional adjustment mounts, this mount features a thicker backplate and tighter springs, offering superior stability.
- Optical components are fixed in the limiting hole by nylon set screws or secured via SM-threaded optical component slots.
- Suitable for Ø1-inch or Ø2-inch optical components.
- Equipped with 3 adjusters, angular range: ±4°.
- MKTA-T series is compatible with lens sleeve series.
- M4 screw holes at the bottom allow installation in different directions.
This series of optical adjustment mounts can provide ±4° pitch and yaw adjustment. When using three adjusters simultaneously, the mount can also achieve a maximum Z-axis translation of 6.4mm.
Specifications | Details |
| Adjustment Range | ±4° pitch and yaw; maximum Z-axis translation of 6.4mm (when using 3 adjusters simultaneously) |
Adjustment Accuracy | 0.5° per turn (8mrad) |
Model | MKTA-T1 | MKTA-T2 | MKTA-S1 | MKTA-S2 |
| Dimensions | 50.3*50.3*23.7mm (excluding adjusters) | 76.4*76.4*27.5mm (excluding adjusters) | 50.3*50.3*23.7mm (excluding adjusters) | 76.4*76.4*27.5mm (excluding adjusters) |
Mounting Aperture | SM1 (1.035”-40) internal thread | SM2 (2.035”-40) internal thread | Ø25.6mm smooth bore | Ø51.1mm smooth bore |
Mounted Components | Ø1-inch (25mm), thickness ≤4mm | Ø2-inch (50mm), thickness ≤6.3mm | Ø1-inch (25mm), thickness ＞3.5mm | Ø2-inch (50mm), thickness ＞5.0mm |
| Counterbore Type | 2*M4 counterbores | 6*M4 counterbores | 2*M4 counterbores | 6*M4 counterbores |
Weight | 94.8g | 170.0g | 94.3g | 168.9g |
Schematic Diagram
Technical Description
(1) This series of optical adjustment mounts can provide ±4° pitch and yaw adjustment. When using three adjusters simultaneously, the mount can also achieve a maximum Z-axis translation of 6.4mm. Compared with conventional optical adjustment mounts, this mount has an increased backplate thickness, which significantly improves stability. Additionally, all connection points adopt tighter springs and hardened inserts to further enhance its performance and durability.

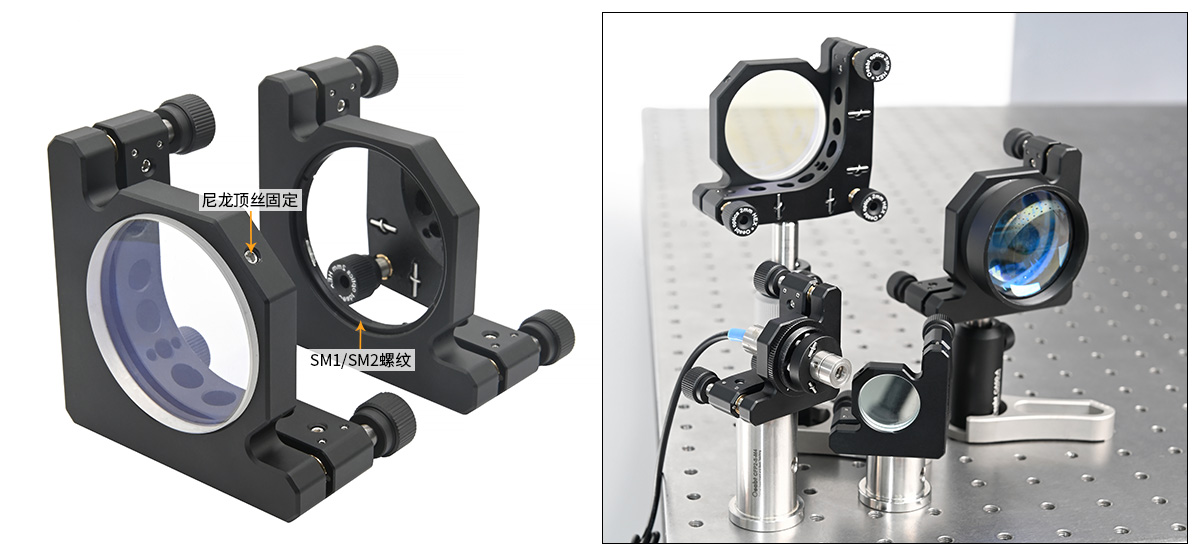

(2) This series of mounts offers two fixing methods for optical components. Among them, the MKTA-S series uses nylon set screws to fix optical components from the side; the MKTA-T series is designed with SM-threaded optical component slots, compatible with lens sleeves, and can connect external thread adapters through internal threads, thus supporting the installation of various optical components such as laser diode modules and fiber collimators.
(3) In addition, the mount is designed with M4 counterbored mounting holes. According to experimental requirements, users can choose left-hand or right-hand direction for rod installation, ensuring flexibility and convenience in different operating environments.

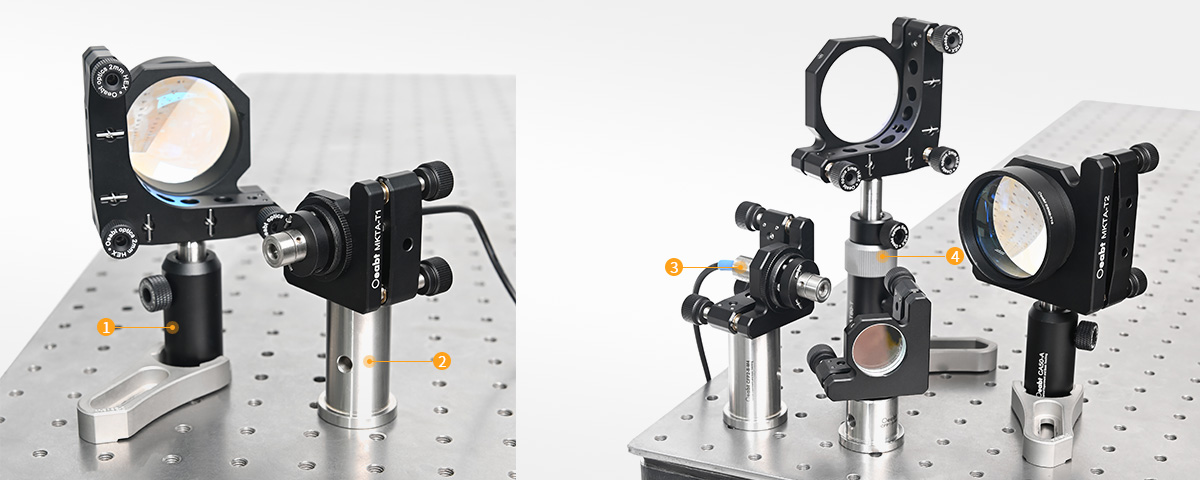

Assembly

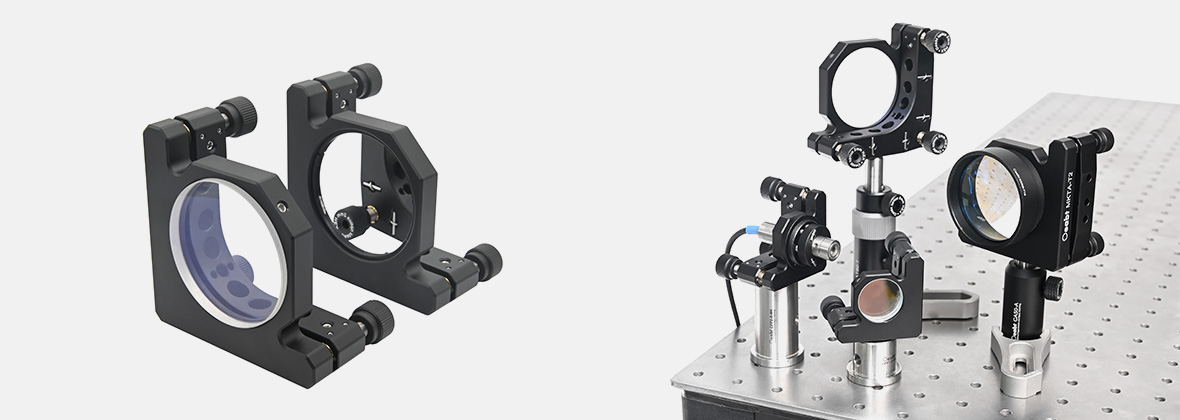

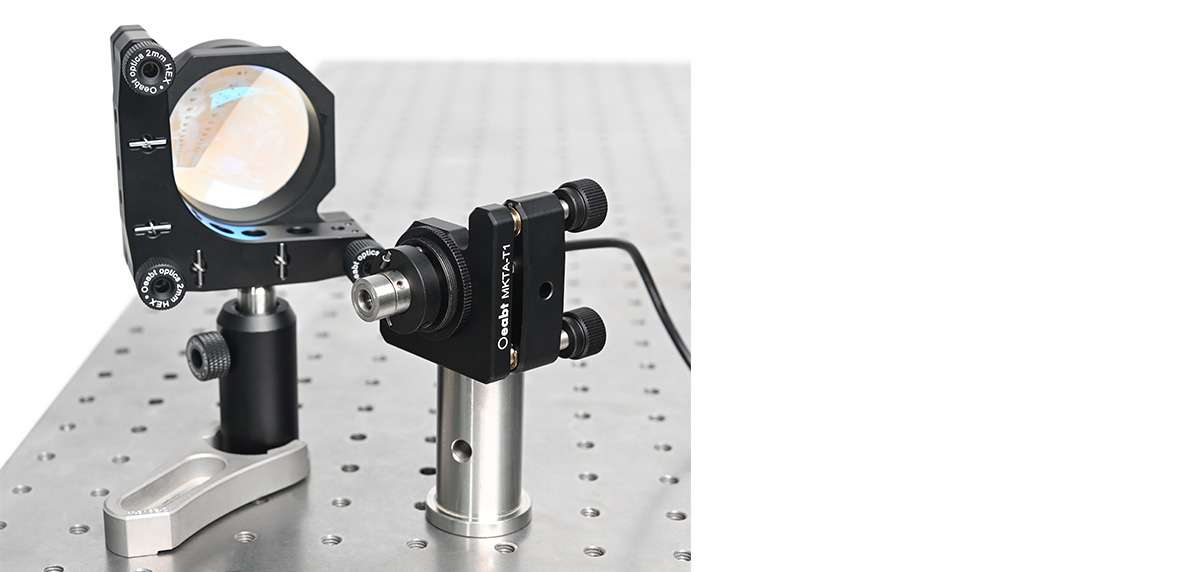

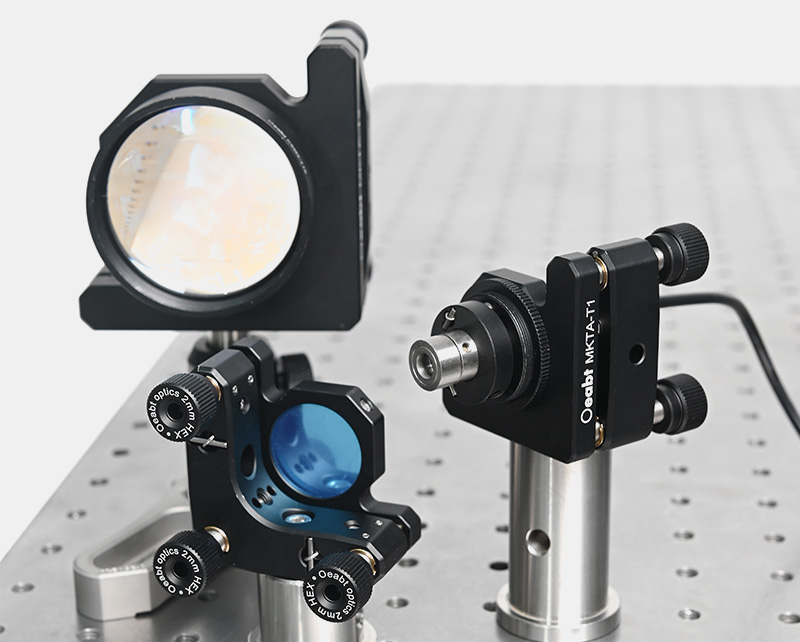

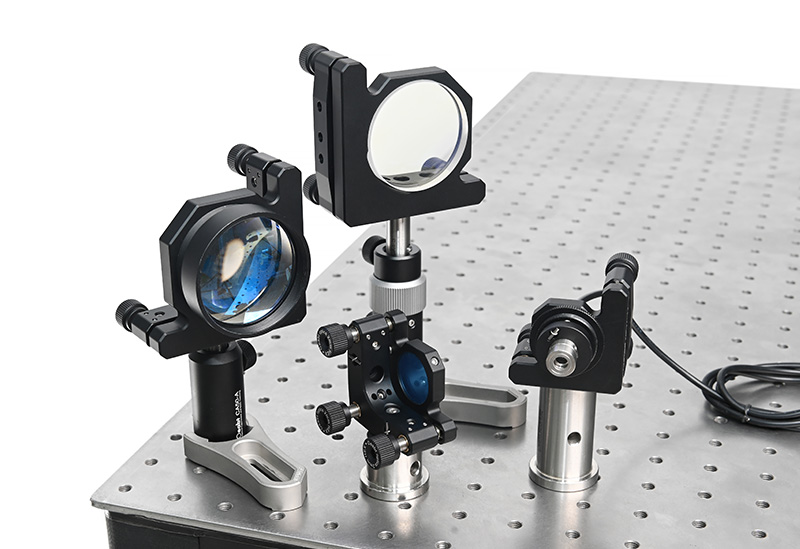

Application Example

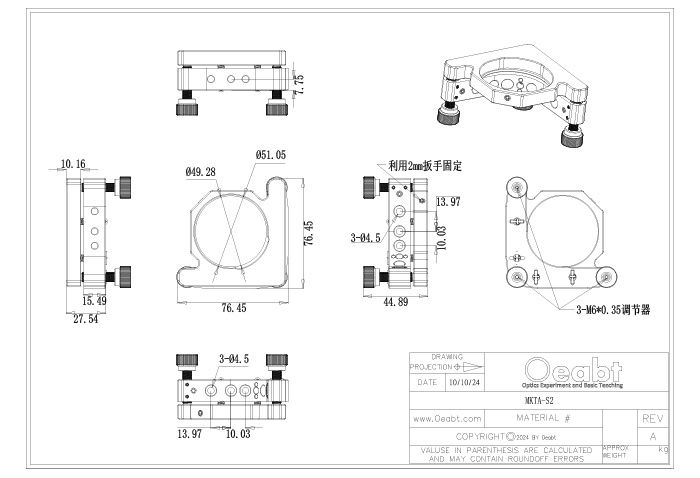

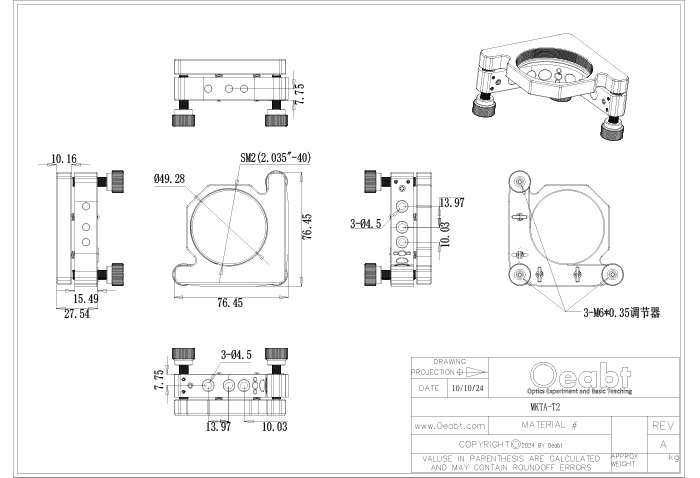

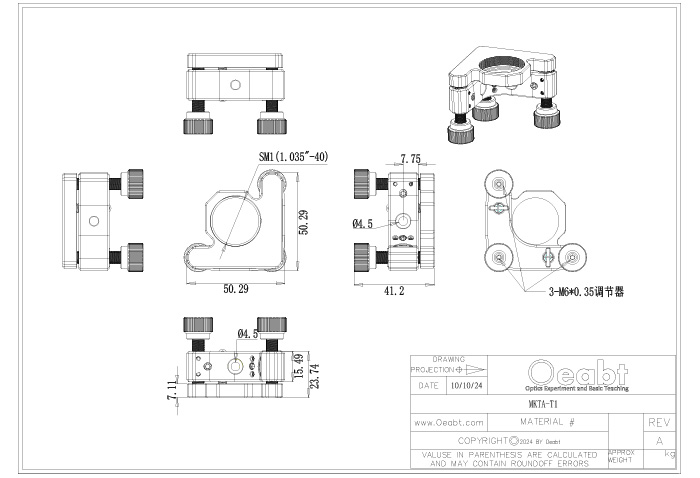

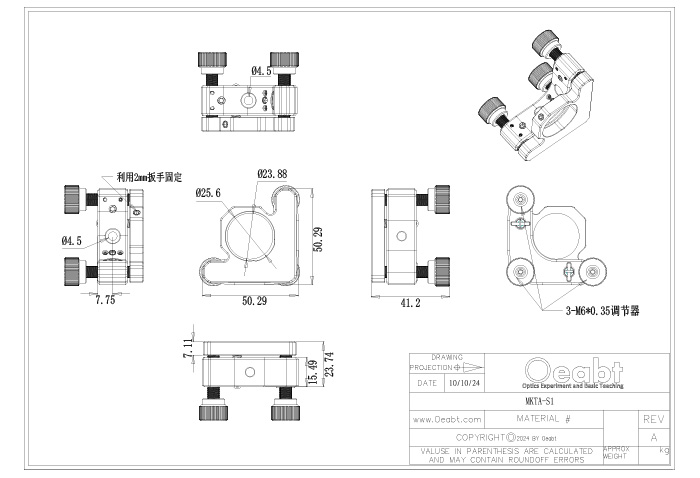

Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | MKTA-S1 3-Axis Adjustment Mount, MKTA-S2 3-Axis Adjustment Mount, MKTA-T1 3-Axis Adjustment Mount, MKTA-T2 3-Axis Adjustment Mount |
| Optic Type |
