Product Description Integrates lasers, collimators, and other cylindrical components into lens sleeves and cage systems; Available with Ø1 inch (Ø25.4mm) smooth outer diameter or SM1 (1.035”-40) external thread outer diameter; Optional mounting device sizes: Ø8-16mm; Two
PO Series Adapter Mounting Hole
$7.60
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Integrates lasers, collimators, and other cylindrical components into lens sleeves and cage systems;
- Available with Ø1 inch (Ø25.4mm) smooth outer diameter or SM1 (1.035”-40) external thread outer diameter;
- Optional mounting device sizes: Ø8-16mm;
- Two setscrews secure the laser in the adapter;
The fixed adapter mounting hole facilitates the integration of cylindrical components such as lasers and collimators into free-space optical setups.
| Specification | Ø25.4*15.0mm |
| Material | 7075 Aluminum Alloy |

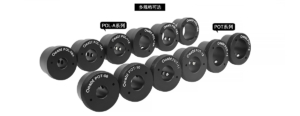

POL Series (Smooth Outer Diameter: Ø25.4mm)
| Model | Mounting Inner Diameter | Weight | Mounting Outer Diameter |
| POL-8A | Ø8.05mm | 15.1g | Ø25.4mm |
| POL-10A | Ø10.05mm | 14.1g | – |
| POL-11A | Ø11.05mm | 13.5g | – |
| POL-12A | Ø12.05mm | 12.4g | – |
| POL-15A | Ø15.05mm | 10.0g | – |
| POL-16A | Ø16.05mm | 9.2g | – |
POT Series (External Thread: SM1 (1.035”-40))
| Model | Mounting Inner Diameter | Weight | Mounting Outer Diameter |
| POT-8 | Ø8.05mm | 15.4g | SM1 (1.035”-40) External Thread |
| POT-10 | Ø10.05mm | 14.1g | – |
| POT-11 | Ø11.05mm | 13.6g | – |
| POT-12 | Ø12.05mm | 12.9g | – |
| POT-15 | Ø15.05mm | 10.0g | – |
| POT-16 | Ø16.05mm | 9.0g | – |
Technical Description

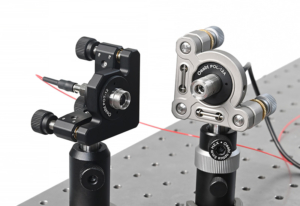

(1) The fixed adapter mounting hole enables easy integration of cylindrical components (e.g., lasers, collimators) into free-space optical devices. Adapters are available with a Ø1 inch smooth outer diameter and SM1 external thread. The threaded version is compatible with our lens sleeve systems, cage systems, and various optomechanical components. The smooth-hole adapter is best suited for optical adjustment frames, allowing collimated beam control via the adjustment frame.
(2) Two fastening setscrews are used to fix the mounting device in the limiting hole; a 2mm hex wrench is used to tighten and secure the position.

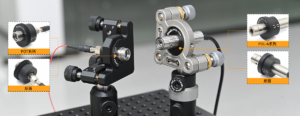

Assembly

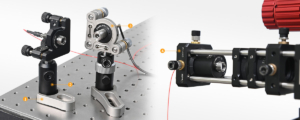

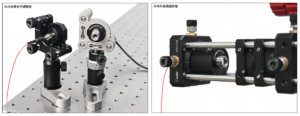

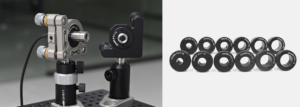

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Model | POL-08A, POL-10A, POL-11A, POL-12A, POL-15A, POL-16A, POT-08, POT-10, POT-11, POT-12, POT-15, POT-16 |
| Diameter | |
| Optic Type |
