Description

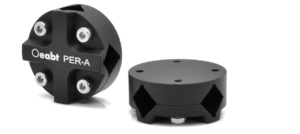

Product Description
- Rod cross coupler, fixed by clamping cage rods with hex screws on the upper and lower plates
- Compatible with 30 mm and 60 mm cage systems
- Connects PCMS series cage rods at 90°
- Convenient for linking multiple cage structures in cage setups
This cage rod cross coupler is used to assemble 30 mm and 60 mm cage systems with Ø6 mm cage rods. It is a precision-machined block with high flexibility and alignment accuracy.
| Model | PER-A |
| Description | Cage Rod Cross Coupler |
| Dimensions | Ø22.9 mm × 10.1 mm |
| Weight | 7.1 g |
| Material | 7075 Aluminum Alloy |
Technical Description
(1) This cage rod cross coupler is used to assemble 30 mm and 60 mm cage systems with Ø6 mm cage rods. It is a precision-machined block with high flexibility and alignment accuracy.
(2) Cage rods can be inserted into the holes from different directions and secured by clamping the rods with the included M2 screws using the supplied hex wrench, allowing vertical connection of multiple 30 mm and 60 mm cage structures.

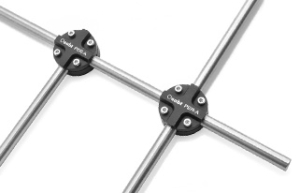

Assembly

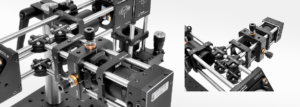

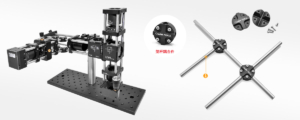

Application Examples
Engineering Drawings
Additional information
| Optic Type |
|---|
