CSD-M Series QuickRelease Cage Plate
CSD-M Series QuickRelease Cage Plate
Price range: $29.40 through $43.20
Similar products
- CPF30 Adjustable Cage System Mount
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
- CSK Series Snap-in Mounting Bracket
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description

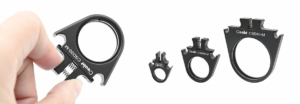

- Quickrelease cage plate for onehanded operation, enabling fast installation, removal, and positioning of optical components.
- Dovetail clamp design provides smooth clamping and release.
- Compatible with 16 mm, 30 mm, and 60 mmcage systems.
- Available with SM05 / SM1 / SM2thread options.
- Accepts optical components of Ø1/2 inch, Ø1 inch, or Ø2 inch.

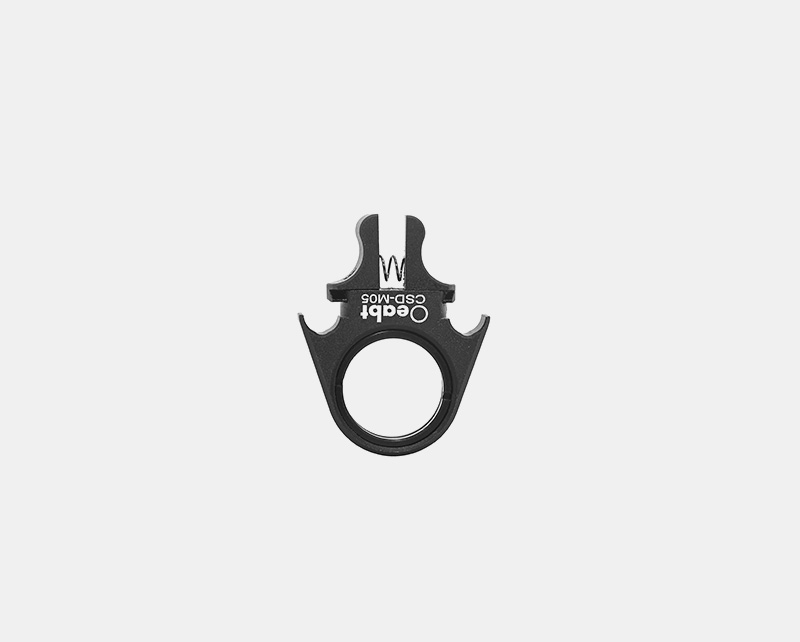

Spring-assisted dovetake design allows snap-in mounting for fast positioning on cage posts.
| Model | CSD-M05 | CSD30-M | CSD60-M |
| Dimensions | 26.5×21.1×6.4 mm | 44.2×40.1×7.6 mm | 70.1×72.1×8.9 mm |
| Thread Type | SM05 (0.535”40) | SM1 (1.035”40) | SM2 (2.035”-40) |
| Mountable Component | Ø12.7 mm, max thickness 2.5 mm | Ø25.4 mm, max thickness 3.5 mm | Ø2 inch, max thickness 5.3 mm |
| Weight | 2.8 g | 11.2 g | 35.9 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description

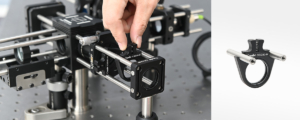

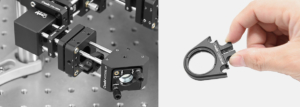

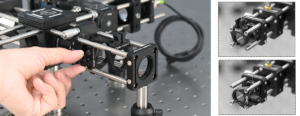

The lever-actuated design allows quick repositioning or full removal from the cage assembly by simply squeezing the dovetail. This onehanded mechanism requires no tools for locking or release.
The center bore is available with SM05 / SM1 / SM2 internal threads for direct mounting of optics, secured by the included retaining ring. Lens sleeve compatibility is also supported.

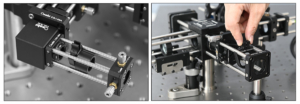

Offered in 16 mm, 30 mm, and 60 mm cage configurations. The dovetail clamp enables toolfree, onehanded quick installation and removal.
- Assembly
- Application Examples
- Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CSD-M05, CSD30-M, CSD60-M |
| Diameter | |
| Optic Type |
