Product Description • Compatible with 60 mm cage systems; • Travel range: ±3 mm for X and Y axes, ±1.5 mm for non-rotating Z axis; • Features SM1 (1.035″-40) threads, compatible with our SM1 series lens

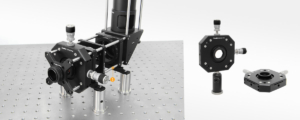

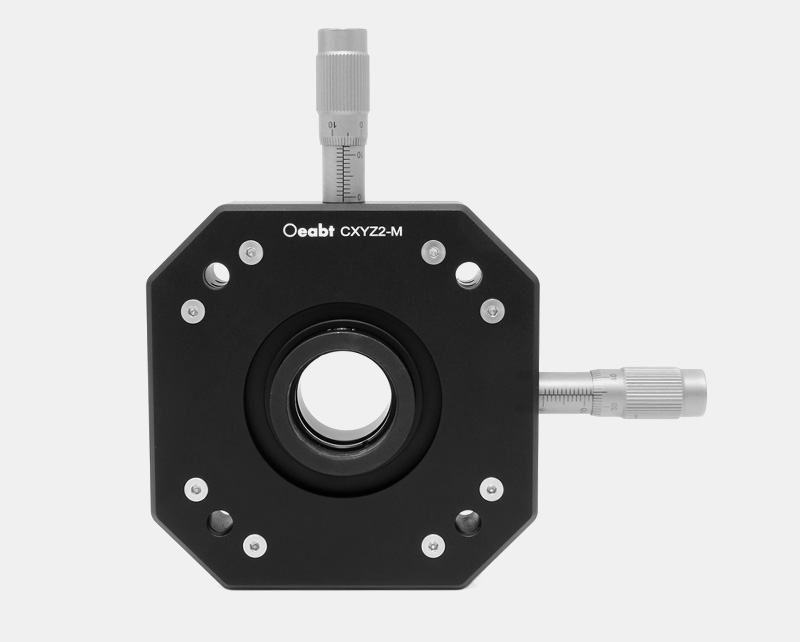

CXYZ2-M Series Cage-Style XYZ Translation Stage
Price range: $258.00 through $277.80
Similar products
- CPF30 Adjustable Cage System Mount
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
• Compatible with 60 mm cage systems;
• Travel range: ±3 mm for X and Y axes, ±1.5 mm for non-rotating Z axis;
• Features SM1 (1.035″-40) threads, compatible with our SM1 series lens sleeves;
The CXYZ2-M series translation stages provide translational travel along the X, Y, and Z axes. The XY travel allows the object in the system to move ±3 mm vertically relative to the optical axis. The Z-axis travel of ±1.5 mm compensates for focusing errors in applications such as fiber alignment or lens mounting.
| Specification | CXYZ2-M | CXYZ2-PM |
|---|---|---|
| Dimensions | 94.0×94.0×32.6 mm (excluding adjusters) | 94.0×94.0×32.6 mm (excluding adjusters) |
| XY Adjusters | SM13 micrometer | PSM8A differential adjuster |
| Graduated Precision | Drive pitch: 0.5 mm; Scale: 10 μm; Vernier: 1 μm | Coarse adjustment: 0.35 mm per revolution; Fine adjustment: 100 μm per revolution, 2 μm per division |
| Travel Range | XY axes: ±3 mm; Z axis: ±1.5 mm | XY axes: ±3 mm; Z axis: ±1.5 mm |
| Center Bore | SM1 (1.035″-40) internal thread | SM1 (1.035″-40) internal thread |
| Thread Type | 2×M6 threaded holes | 2×M6 threaded holes |
| Through-Hole Spacing | Ø6 mm through holes, spacing: 60×60 mm | Ø6 mm through holes, spacing: 60×60 mm |
| Weight | 425.3 g | 425.3 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
(1)

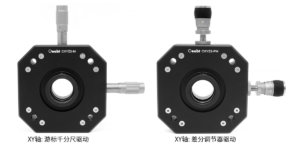

The CXYZ2-M series translation stages provide translational travel along the X, Y, and Z axes. The XY travel allows the object in the system to move ±3 mm vertically relative to the optical axis. Two drive types are available: micrometer drive and differential drive. The Z-axis travel of ±2 mm compensates for focusing errors in applications such as fiber alignment or lens mounting.
(2)

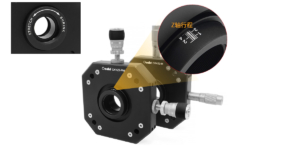

The adjustment dial on the back of the rotation stage can translate along the Z axis. The dial is laser‑marked with “Extension/Retraction” indicator arrows that show the rotational direction for moving the stage forward and backward. The telescoping sleeve section of the stage is also laser‑marked with 0.5 mm spaced graduations to indicate the Z‑axis translation p
osition.
(3)

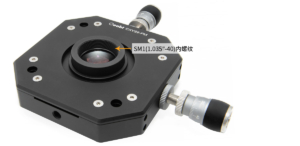

The stage support frame features SM1 (1.035″-40) threads and comes with one CSK3 retaining ring, allowing mounting of Ø1‑inch optical components up to 10.5 mm thick.
(4)

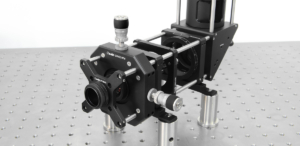

The four through‑holes on the stage can be used with our Ø6 mm posts, making it compatible with our 60 mm cage system. Set screws are located beside the cage rod mounting holes, which are locked into position using a 1.6 mm hex wrench.
(5)

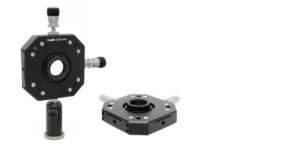

There are two M6 threaded holes on the side opposite the XY adjusters, facilitating mounting for post applications.
