SCF1 Series Flexible Coupling Sleeves
Price range: $20.40 through $32.00
Similar products
- CSM Series Lens Tube Adapters
- SM1-T Series 1-inch Diameter Sleeve Connectors
- CSM1-1 Series SM1 Lens Sleeve Connectors
- SA-PL Adjustable Positioning Sleeve
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Flexible coupling fixed sleeve
- Compatible with 1-inch Ø sleeves, extension tubes or other 1.2-inch Ø cylindrical components
- Available in multiple lengths
The SCF1 series coupling sleeves adopt a flexible compression sleeve design, which can fix 1-inch Ø lens sleeves, extension tubes or other cylindrical components with an outer diameter of 1.2-inch Ø.

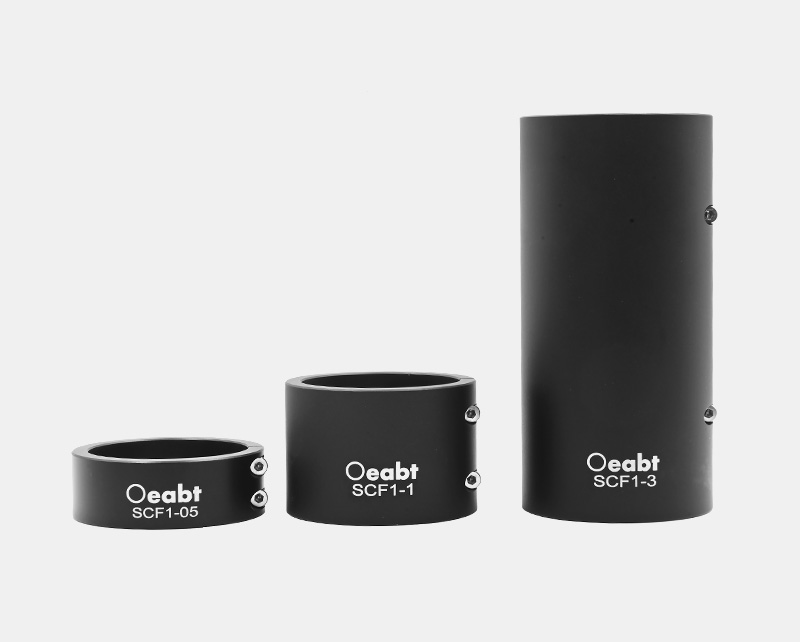

| Model | SCF1-05 | SCF1-1 | SCF1-3 |
| Specification | Ø37.08*12.7mm | Ø37.08*25.4mm | Ø37.08*76.2mm |
| Mounting Aperture | Ø30.54mm | Ø30.54mm | Ø30.54mm |
| Weight | 11.6g | 23.1g | 69.2g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The SCF1 series coupling sleeves adopt a flexible compression sleeve design, which can fix 1-inch Ø lens sleeves, extension tubes or other cylindrical components with an outer diameter of 1.2-inch Ø. Insert the lens sleeve into the end of the coupler, which is suitable for scenarios requiring sleeve extension and splicing.
(2) The lens sleeve can be fixed at any position on the tube body of the coupler, only need to keep the compression length more than 6mm, and achieve flexible fixation by tightening the side stud screw with a 1.3mm hex wrench.

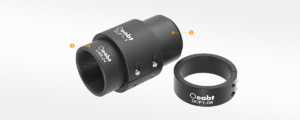

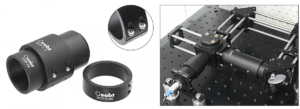

Assembly

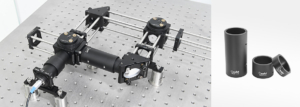

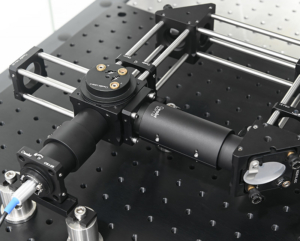

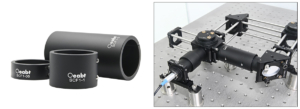

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Model | SCF1-05, SCF1-1, SCF1-3 |
| Optic Type |
