Product Description SM1 (1.035”-40) fully threaded connector Connects two lens tubes together Lock ring creates a mechanical stop along the thread Available in various lengths The SM1-T series lens sleeve connectors are used to connect two
SM1-T Series 1-inch Diameter Sleeve Connectors
Price range: $20.20 through $24.20
Similar products
- CSM Series Lens Tube Adapters
- CSM1-1 Series SM1 Lens Sleeve Connectors
- SA-PL Adjustable Positioning Sleeve
- SCR Series Sleeve Clamp Rings
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description

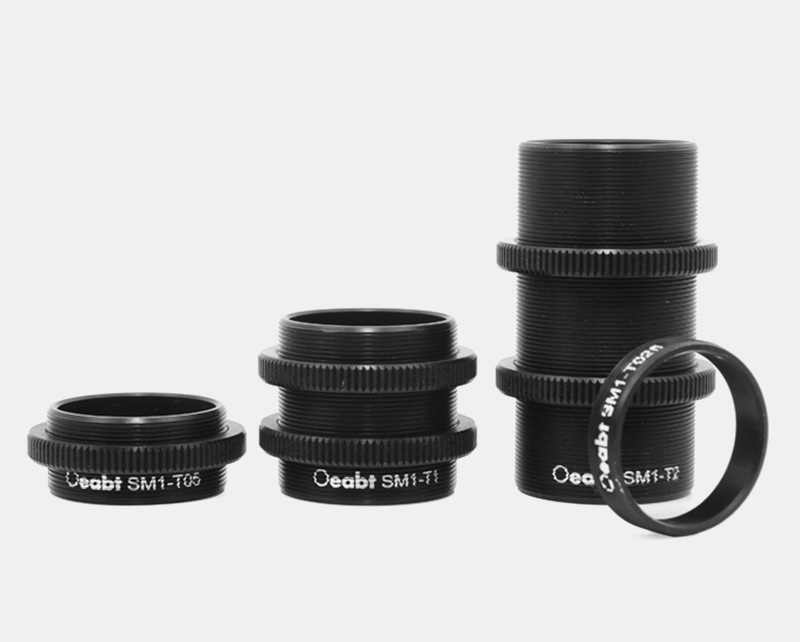

Product Description
- SM1 (1.035”-40) fully threaded connector
- Connects two lens tubes together
- Lock ring creates a mechanical stop along the thread
- Available in various lengths
The SM1-T series lens sleeve connectors are used to connect two lens tubes with SM1 internal threads at both ends. The connectors feature full-length external threads, which optimize the position and angle of the connected components; the tube length changes when the direction is adjusted.
| Model | SM1-T025 | SM1-T05 | SM1-T1 | SM1-T2 |
| Thread Type | SM1 (1.035”-40) Internal Thread | SM1 (1.035”-40) Internal Thread | SM1 (1.035”-40) Internal Thread | SM1 (1.035”-40) Internal Thread |
| Inner Diameter | Ø23mm | Ø23mm | Ø23mm | Ø23mm |

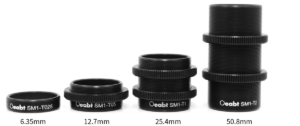

| Thread Length | 6.35mm | 12.7mm | 25.4mm | 50.8mm |
| Included Lock Rings | None | 1 | 2 | 2 |
| Weight | 1.7g | 6.2g | 12.3g | 20.0g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The SM1-T series lens sleeve connectors are designed for connecting two lens tubes with SM1 internal threads at both ends. Equipped with full-length external threads, the connectors allow for the optimization of the position and angle of connected components, with the tube length varying upon directional adjustment. Lock rings are included (not provided with SM1-T025), enabling hand-tightening of the connected assemblies. These adapters feature a light-tight design, making them ideal for integrating with existing lens tube systems or cage systems.
(2) Additional lock rings can also be purchased separately to limit the external thread engagement depth of SM1 threaded components. Multiple lock rings can be used to lock lens tubes independently, such as when using cross polarizers.
(3) Available in a range of thread lengths.

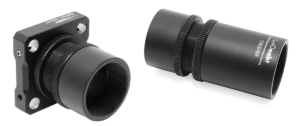

Assembly

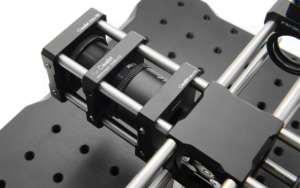

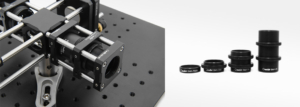

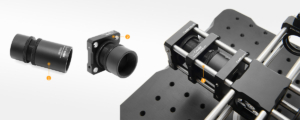

Application Examples
Additional information
| Weight | N/A |
|---|---|
| Model | SM1-T025, SM1-T05, SM1-T1, SM1-T2 |
