Product Description Internal thread connector for connecting sleeve barrels with other opto-mechanical components The connector is equipped with SM1 (1.035″-40) external threads Comes with 1 rotation lock ring to secure attached components after adjustment 5mm short
CSM1-1 Series SM1 Lens Sleeve Connectors
Price range: $17.20 through $23.60
Similar products
- CSM Series Lens Tube Adapters
- SM1-T Series 1-inch Diameter Sleeve Connectors
- SA-PL Adjustable Positioning Sleeve
- SCR Series Sleeve Clamp Rings
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Internal thread connector for connecting sleeve barrels with other opto-mechanical components
- The connector is equipped with SM1 (1.035″-40) external threads
- Comes with 1 rotation lock ring to secure attached components after adjustment
- 5mm short thread section on one end
- Long thread section on the other end to optimize the position and angle of the connected components
Designed to connect two lens sleeve components with SM1 external threads at both ends. It features a fixed 3.5mm thread length on one end, with optional different lengths on the other end.
| Model | CSM1-1-12 | CSM1-1-24 | CSM1-1-48 |
| Specification | Ø31.8*19.5mm | Ø31.8*31.5mm | Ø31.8*55.5mm |
| Thread Type | SM1 (1.035″-40) internal thread | SM1 (1.035″-40) internal thread | SM1 (1.035″-40) internal thread |
| Thread Length | 3.5mm on one end, 12mm on the other | 3.5mm on one end, 24mm on the other | 3.5mm on one end, 48mm on the other |
| Weight | 10.7g | 14.0g | 20.9g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The CSM1-1 series is designed to connect two lens sleeve components with SM1 external threads at both ends. It has a fixed 3.5mm thread length on one end and optional different lengths on the other end, and is supplied with 1 lock ring. The lock ring can secure the attached components after adjustment, thereby limiting the external thread engagement depth of SM1 threaded components.
(2) The coupling adapter is thread-mounted to a lens sleeve or other threaded components, allowing the components to engage while rotating, which can optimize the position and angle of attachment to other components.

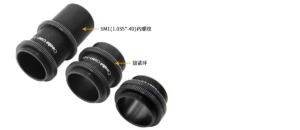

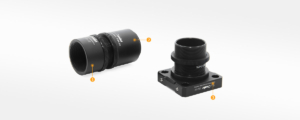

Assembly

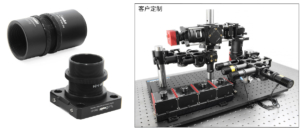

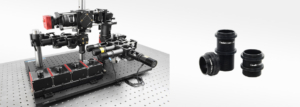

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Model | CSM1-1-12, CSM1-1-24, CSM1-1-48 |
