Description
Product Description
- Equipped with limit holes and fixing screws for secure clamping of sleeves
- Compatible with standard SM05, SM1 and SM2 lens sleeves
- M4 screw hole for mounting 12mm Ø connecting rods

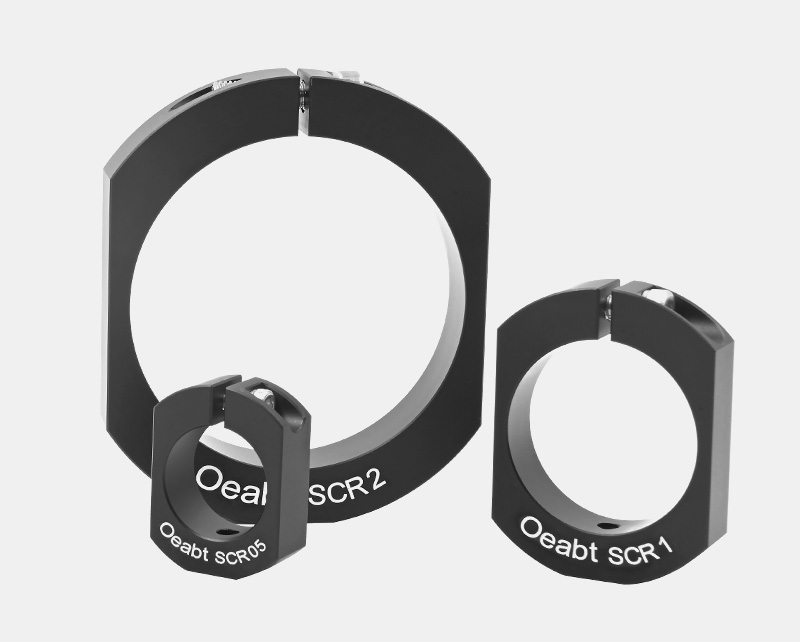

Sleeve clamp rings are used to position lens sleeve systems onto sleeve mounts on breadboards or platforms. They are applicable for lens sleeves or extension tubes of different sizes, including 1/2-inch Ø (SM05), 1-inch Ø (SM1) and 2-inch Ø (SM2).
| Model | SCR05 | SCR1 | SCR2 |
| Specification | 30.522.910.2mm | 46.535.610.2mm | 75.663.512.7mm |
| Central Aperture | Ø17.9mm | Ø30.6mm | Ø56mm |
| Screw Hole Type | 1 x M4 | 1 x M4 | 1 x M4 |
| Weight | 10.0g | 20.0g | 58.6g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) Sleeve clamp rings are designed to position lens sleeve systems onto sleeve mounts on breadboards or platforms, and are suitable for lens sleeves or extension tubes of various sizes: 1/2-inch Ø (SM05), 1-inch Ø (SM1) and 2-inch Ø (SM2).
(2) When using the clamp ring, the lens sleeve needs to pass through the light through-hole of the slip ring for installation and clamping. In addition, it can be fixed to Oeabt series connecting rods or other structural components via the M4 screw hole at the bottom.

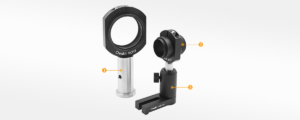

Assembly

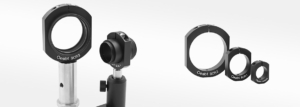

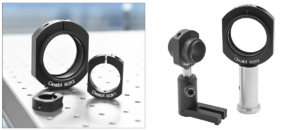

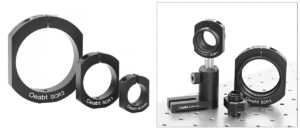

Application Examples
