Description
Product Description
- WJ4/5-32 (M20.31X0.706) thread specification;
- Integrates RMS threaded components with other standard threads;
- Compatible with threads of SM1, C-Mount, microscope objective lens and other product series;
- Available with internal or external RMS threads;
The RMS thread structure is generally used to connect microscope objective lenses in optical-mechanical systems. Oeabt offers a variety of adapters that integrate RMS threaded components with other standard threads, enabling free conversion between different threads including SM1, RMS, C-Mount, M250.75, and M270.75. Adapters with internal or external threads are available for selection.
| Model | Thread Type | Weight | Material |
| SM1-RMS | SM1 external thread, RMS internal thread | 2.7g | 7075 Aluminum Alloy |
| C-RMS | C-Mount external thread, RMS internal thread | 2.0g | – |
| RMS-25 | RMS external thread, M25*0.75 internal thread | 3.3g | – |
| RMS-27 | RMS external thread, M27*0.75 internal thread | 3.4g | – |
Schematic Diagram
Technical Description
- The RMS thread structure is typically used for connecting microscope objective lenses in optical-mechanical systems. Oeabt provides multiple types of adapters that integrate RMS threaded components with other standard threads, realizing free conversion between different threads such as SM1, RMS, C-Mount, M2575, and M270.75. Users can choose adapters with internal or external threads.

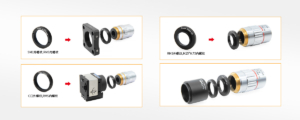

(2) Component Installation

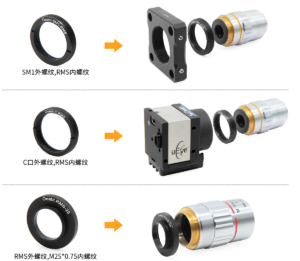

Assembly

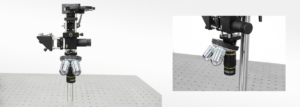

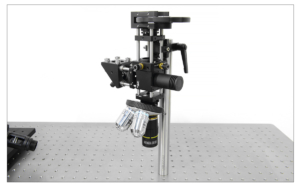

Application Examples
