Product Description Lowprofile cage plate base for horizontal mounting of cage plates to optical platforms Compatible with 30 mm or 60 mm cage plates Features countersunk slots for mounting on imperial or metric breadboards Includes 1

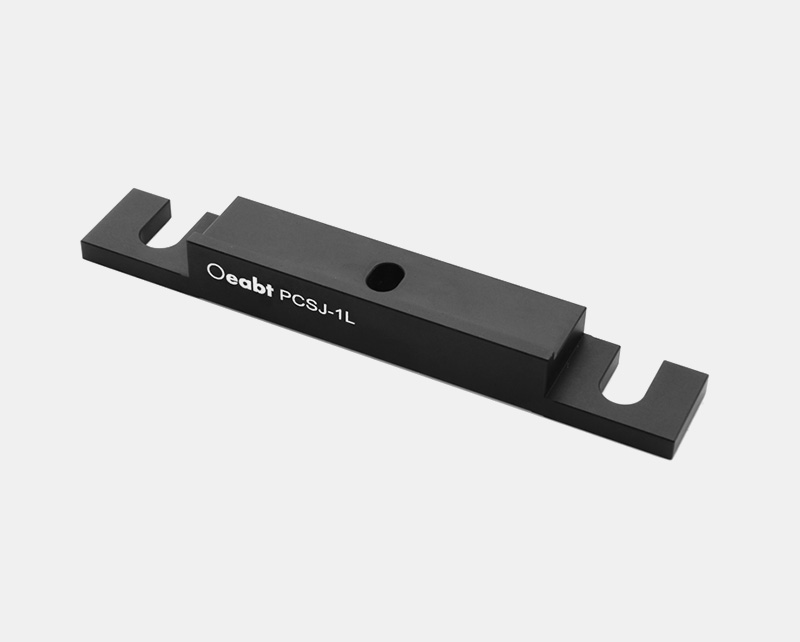

PCSJL Series Cage Plate Mount
Price range: $22.60 through $26.60
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Lowprofile cage plate base for horizontal mounting of cage plates to optical platforms
- Compatible with 30 mm or 60 mm cage plates
- Features countersunk slots for mounting on imperial or metric breadboards
- Includes 1 M4 and 2 M6 cap screws

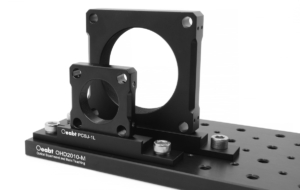

The cage plate mount facilitates horizontal mounting of cage plates to optical platforms, securing cage plates via bottom countersunk holes. The countersunk slots allow switching between imperial and metric platform installations.
| Model | PCSJ-1L | PCSJ-2L |

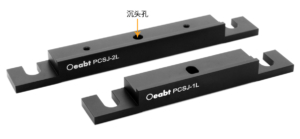

| Dimensions | 95.3×15.2×10.8 mm | 120.7×15.2×10.8 mm |
| Thread Type | Ø4.6×6.5 mm countersink; countersunk slot Ø6.4×9.5 mm | Ø4.6 mm countersink; 2×M3 threaded holes; Uslot Ø6.4×9.5 mm |
| Weight | 24.0 g | 33.6 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) These black anodized aluminum mounts enable horizontal installation on optical platform surfaces. They secure 30 mm and 60 mm cage plates via bottom countersunk holes. A raised edge on the base prevents cage plate rotation under force.
(2) Each end of the mount features one countersunk slot, allowing direct mounting to optical platforms or breadboards using the included M6 cap screws. The countersunk slots support interchangeable mounting on imperial and metric platforms.

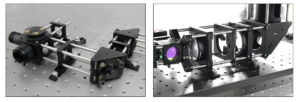

(3) Application Example
Assembly

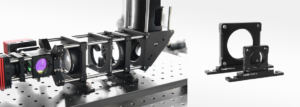

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | PCSJ-1L, PCSJ-2L |
| Diameter | |
| Optic Type |
