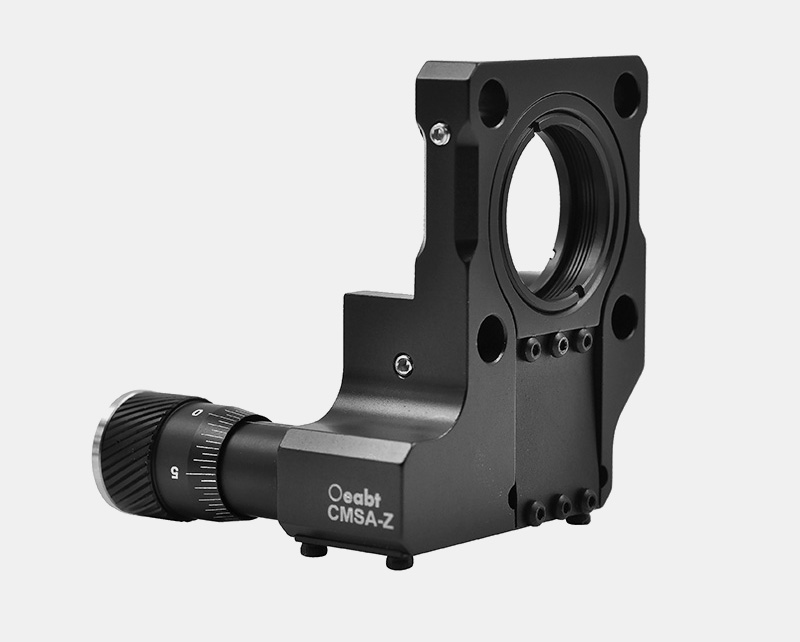

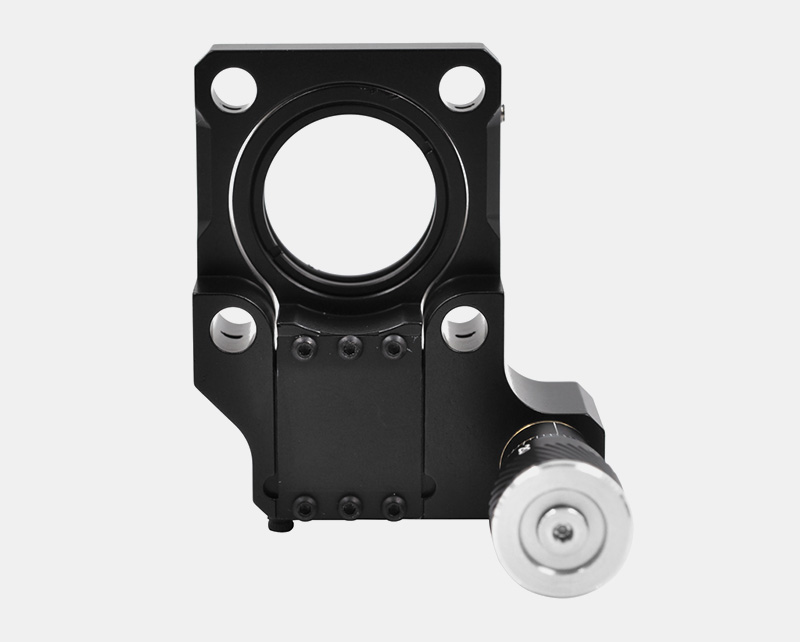

Product Description Can mount Ø1-inch optical components with a maximum thickness of 0.28 inches (7.1mm). Maximum adjustable travel: 1.2mm; precision micrometer driver with scale, graduated in 5µm increments (0.25mm per full rotation). SM1-threaded (1.035”-40) mounting hole,
CMSA-Z Z-Axis Translation Mount
$79.80
Similar products
- CPF30 Adjustable Cage System Mount
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Can mount Ø1-inch optical components with a maximum thickness of 0.28 inches (7.1mm).
- Maximum adjustable travel: 1.2mm; precision micrometer driver with scale, graduated in 5µm increments (0.25mm per full rotation).

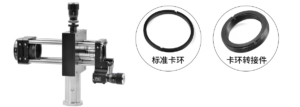

- SM1-threaded (1.035”-40) mounting hole, compatible with SM1-threaded lens sleeves; includes 1 SM1 retaining ring.
- Objective lenses can be mounted using SM1-RMS retaining ring adapters.

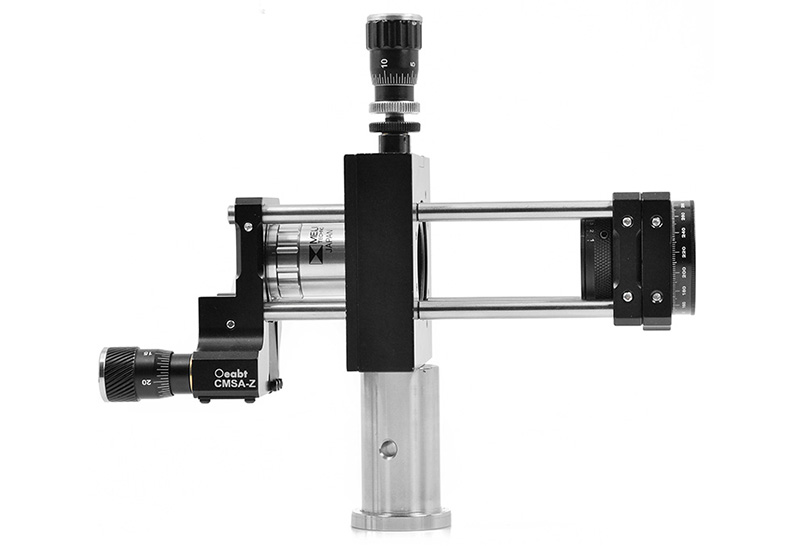

- Provides repeatable Z-axis travel within 30mm cage systems.
The Z-axis translation mount enables precise positioning of optical components along the optical axis. These mounts can directly install Ø1-inch (25.4mm) optical components or those in SM1 (1.035”-40) externally threaded lens sleeves. They offer repeatable Z-axis travel within 30mm cage systems, ideal for compensating focus errors in applications such as fiber alignment or spatial filtering, or for scenarios requiring precise adjustment along the optical axis.
Technical Description

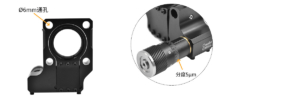

The scaled actuator knob is graduated in 5µm increments, with a travel of 0.25mm per full rotation. Includes 1 SM1 retaining ring; Ø6mm through holes are compatible with PCM series cage rods.

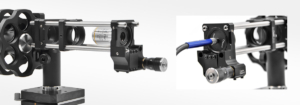

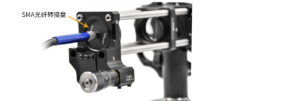

The CMSA-Z mount can be used in spatial filtering systems. Fibers are installed via SMA fiber adapter discs. In applications, the CMSA-Z can compensate for focus errors through translation or be used for scenarios requiring precise adjustment along the optical axis.
The SM1-threaded hole allows thicker optical components to be mounted on the CMSA-Z translation stage using SM1 lens sleeves.
Assembly
Manual Assembly and Installation
Installation Method:
Application Example

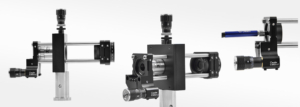

The Z-axis translation mount enables precise positioning of optical components along the optical axis. These mounts can directly install Ø1-inch (25.4mm) optical components or those in SM1 (1.035”-40) externally threaded lens sleeves.
Engineering Drawing Download
