Description
Product Description
- Can clamp cylindrical objects with diameters ranging from Ø9.0mm to Ø51.5mm.
- The pressure arm provides stable 3-point contact with the V-shaped clamp block.

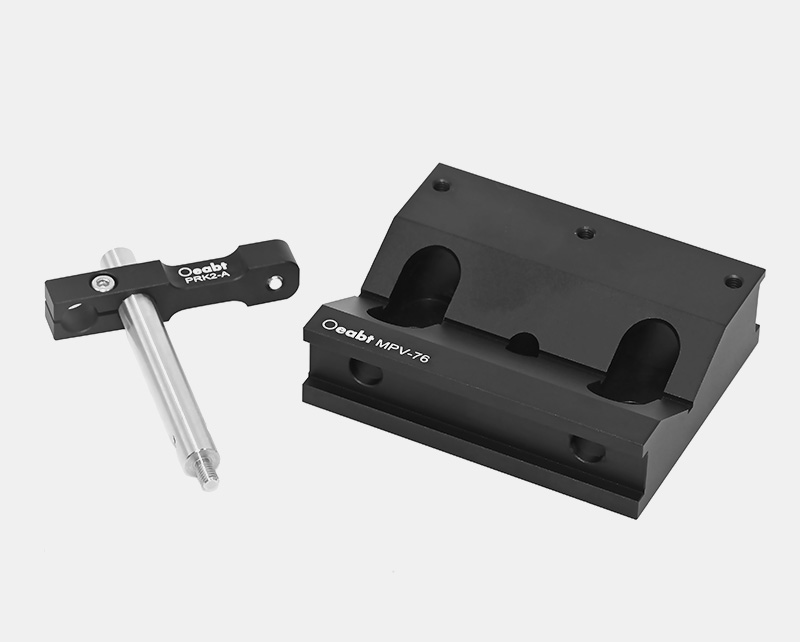

- Each mount includes 1 PRK2-A pressure arm.
- Multiple threaded holes and counterbores on the clamp block offer various installation options.
- Compatible with Ø12mm rods and platform-equipped adjustment mounts.

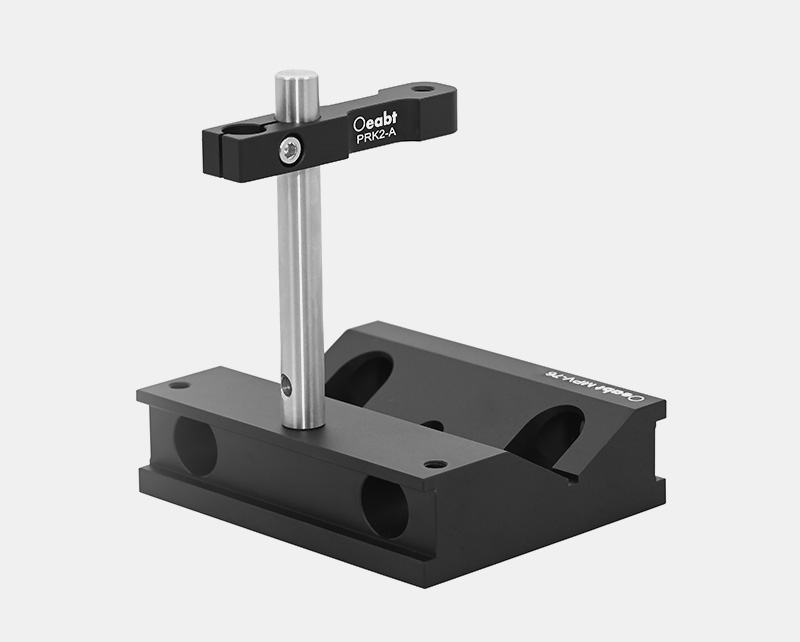

The 76mm-long V-shaped clamp block is designed to support large cylindrical objects, such as large-diameter helium-neon lasers. Cylindrical objects are secured via the nylon-tipped locking screws on the included PRK2-A pressure arm.
| Model | MPV-76K2 | MPV-76 | PRK2-A |
| Product Name | V-shaped clamp block | V-shaped base | Pressure arm |
| Dimensions | MPV-76 V-shaped clamp block & PRK2-A pressure arm | 76.2*62.9*20.3mm | Ø8*64.8mm |
| Weight | 210.0g | 175.5g | 34.0g |
| Material | 7075 aluminum alloy | 7075 aluminum alloy | 7075 aluminum alloy |
Technical Description

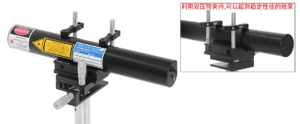

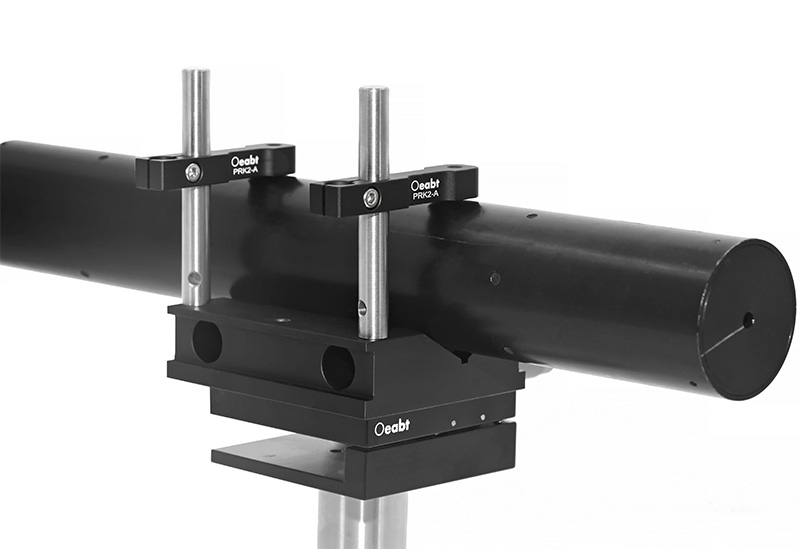

The 76mm-long V-shaped clamp block is designed to support large cylindrical objects, such as large-diameter helium-neon lasers. Cylindrical objects are secured via the nylon-tipped locking screws on the included PRK2-A pressure arm. The locking screws can be tightened with a 2mm hex wrench. For additional clamping support, 3 M4 threaded holes at the bottom are used for installing extra pressure arms. (Each mount includes 1 pressure arm; additional arms need to be purchased separately.)
46
The Ø8mm pressure arm is fixed to the rod using a flexible mechanism and locked with a 2.5mm hex wrench. When used alone, the PRK2-A can clamp optical components up to 56.7mm in height. The distance between the rod center and the nylon-tipped set screw center is 30.5mm at the first position and 42.9mm at the second position.

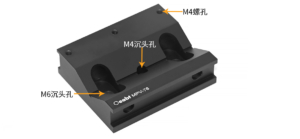

The V-shaped clamp block is equipped with 2 M6 counterbores and 1 M4 counterbore for direct installation onto optical platforms or rods.
Assembly

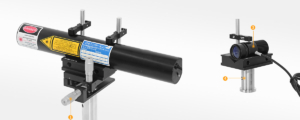

Application Example
The V-shaped design caters to the installation needs of different cylindrical objects. Each model features a robust integrated V-shaped clamp block body and a pressure arm, whose contact surface is directly collinear with the center of the “V” shape. The V-shaped clamp block and vertical pressure arm provide stable 3-point contact for secure component installation.
Engineering Drawing Download
