MK100-A Standard Two-Axis Adjustable Mirror Mount

Description

Product Description

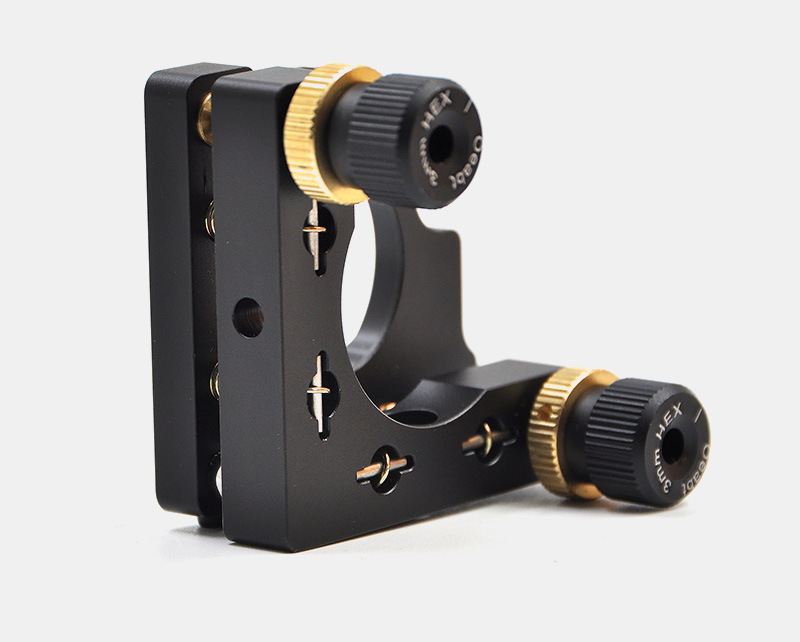

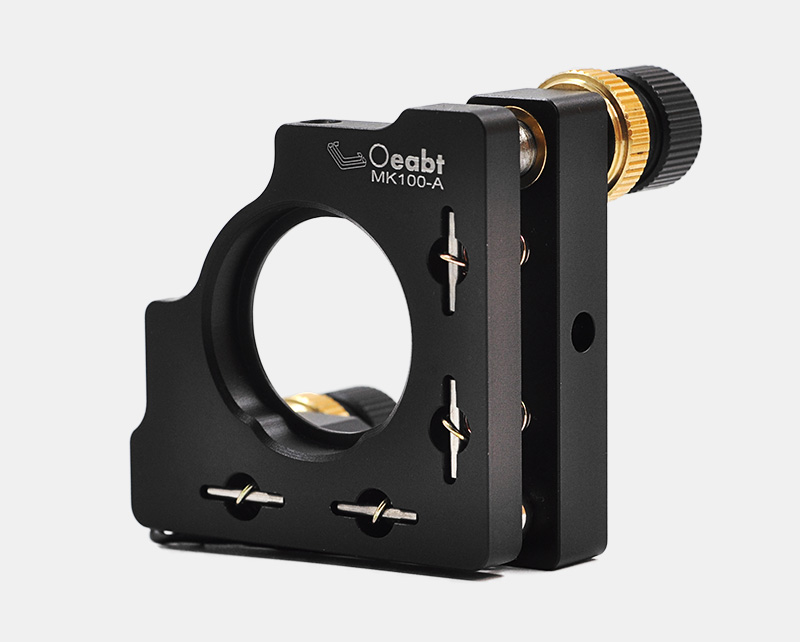

• Equipped with M4 mounting holes as standard.
• Directly mounts Ø1-inch lenses; mount hole diameter: Ø25.7mm, compatible with lens thickness: 2-10mm.
• Manual fine-tuning design for XYZ three axes, with ±4° pitch adjustment.
• Constructed from high-strength stainless steel.
• Adjustment differential rods are fitted with adjustment knobs and lock nuts.

This standard two-axis adjustable optical mount is designed for mounting Ø1-inch optical lenses. By adjusting two screws, the lens can achieve tilt and pitch with a single-axis adjustment range of ±4°. It can be installed in left-hand or right-hand orientation and fixed to various column brackets via M4 threaded holes. Compared with optical mounts with dual adjusters, this precision mount features a thicker backplate and tighter springs for enhanced stability.

Technical Description

Compared with optical mounts with dual adjusters, this precision mount features a thicker backplate and tighter springs for enhanced stability.

• ±4° pitch and yaw adjustment;
• Lockable adjusters;
• Offers eccentric mounting options with anodized black finish

Assembly

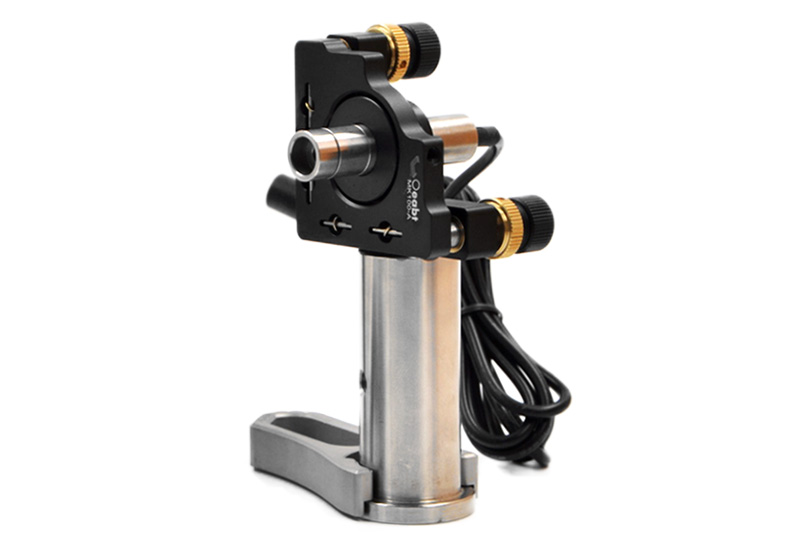

Adjustable Mirror Mount Installation Method

Installation Method:

Application Example

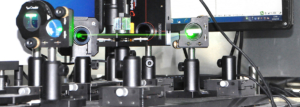

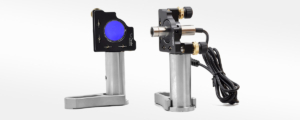

Oeabt offers a variety of optical adjustment mounts and fixed mounts capable of installing many standard-sized optical components. The fixed optical mount features an integrated design, which can be integrated into laser systems or other compactly designed systems, suitable for applications requiring high stability. It enables easy construction of optical experimental platforms in optical path systems.

Engineering Drawing Download

MK100-A-Engineering Drawing
