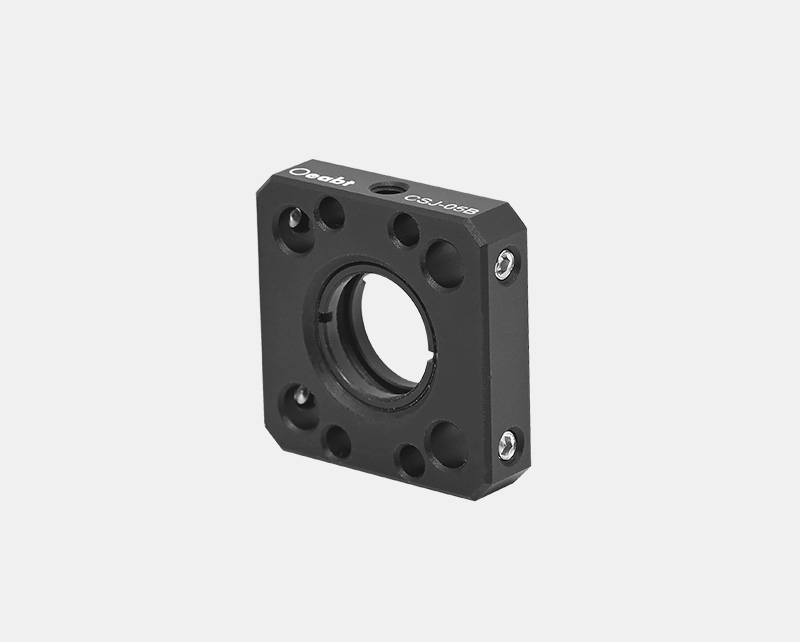

CSJ-05B 16mm Threaded Cage Plate

CSJ-05B 16mm Threaded Cage Plate
CSJ-05B 16mm Threaded Cage Plate - Image 2

CSJ-05B 16mm Threaded Cage Plate

$16.00

Product Description 16mm cage plate with SM05 (0.535”-40) internal thread 16mm through‑hole spacing for SPCM‑E series Ø4mm cage rods Holds Ø1/2‑inch optics up to 2.8mm thick 4‑40 or M3 threaded holes for post mounting Supplied with

Categories: ,
Similar products
Compatible accessories
Related categories

Browse all products →

Description

Product Description

  • 16mm cage plate with SM05 (0.535”-40) internal thread
  • 16mm through‑hole spacing for SPCM‑E series Ø4mm cage rods
  • Holds Ø1/2‑inch optics up to 2.8mm thick
  • 4‑40 or M3 threaded holes for post mounting
  • Supplied with 2 CSK05 retaining rings
The CSJ‑05B threaded cage plate has 4 through holes for mounting SPCM‑E series Ø4mm cage rods. It can be locked onto cage rods via set screws on the side of each through hole, using a 1.3mm hex key.

Specifications

ItemDetails
ModelCSJ‑05B
Dimensions25.0×25.0×6.4 mm
Center BoreSM05 (0.535”-40) internal thread
Threaded Holes1×4‑40, 1×M3
Through HolesØ4.03 mm, 16×16 mm spacing
Weight7.1 g
Material7075 Aluminum Alloy

Technical Description

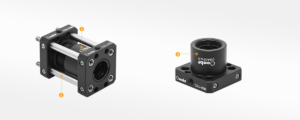

  1. The CSJ‑05B threaded cage plate features 4 through holes for SPCM‑E series Ø4mm cage rods. Side set screws (1.3mm hex key) secure the plate to cage rods. It can mate with CSJ‑05A to couple 16mm and 30mm cage systems.
(2) The plate features an SM05 (0.535”-40) internal thread, compatible with SM05 series lens sleeves. Two CSK05 retaining rings are included for mounting Ø1/2‑inch optics up to 2.8mm thick.

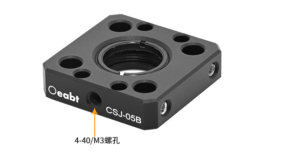

(3) Opposite sides are equipped with 4‑40 and M3 threaded holes for additional fastening or component connection.

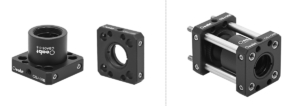

Assembly

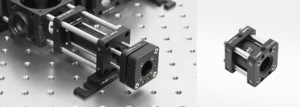

Application Examples

Engineering Drawings

CSJ-05B Engineering Drawing

Additional information

Weight0.0071 kg
Dimensions2.5 × 2.5 × 0.64 cm
Diameter

Optic Type
