Product Description Laser alignment plate for optical path alignment in visible-light systems Snap-in fit for coaxial systems, compatible with 30 mm / 60 mm cage systems Laser-engraved concentric rings and XY axis scales on the alignment target Available

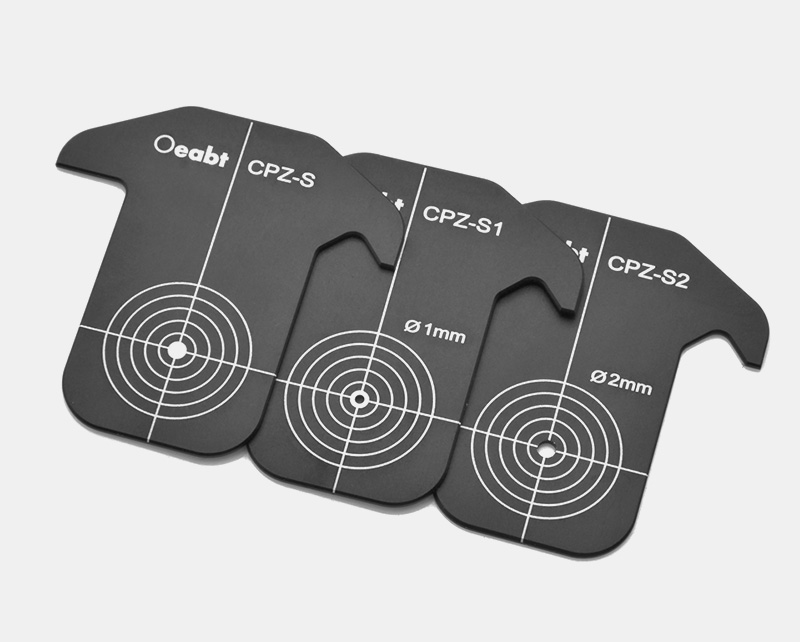

CPZ-S Series Cage Alignment Plate
Price range: $7.00 through $16.00
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Laser alignment plate for optical path alignment in visible-light systems
- Snap-in fit for coaxial systems, compatible with 30 mm / 60 mm cage systems
- Laser-engraved concentric rings and XY axis scales on the alignment target
- Available with Ø1 mm and Ø2 mm through holes for different laser beam diameters
- Non-through-hole version also available for alignment and light blocking
These laser alignment targets are used in visible-light systems to simplify optical path collimation. Made of anodized aluminum, they feature laser-engraved concentric rings, XY-axis or single-axis scales for optimal visual alignment. Components are compatible with cage systems, lens mounts, and lens tubes.
| 30 mm Cage System Compatible (Black) | |||
| Model | CPZ-S | CPZ-S1 | CPZ-S2 |
| Dimensions | 40.6×40.4×1 mm | 40.6×40.4×1 mm | 40.6×40.4×1 mm |
| Aperture | None | Ø1 mm | Ø2 mm |
| Weight | 2.5 g | 2.5 g | 2.5 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
| 30 mm Cage System Compatible (Matte Gray) | |||
| Model | CPZ-S | CPZ-S1 | CPZ-S3 |
| Dimensions | 40.6×40.4×1 mm | 40.6×40.4×1 mm | 40.6×40.4×1 mm |
| Aperture | None | Ø1 mm | Ø2.5 mm |
| Weight | 7.6 g | 7.6 g | 7.6 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
| 60 mm Cage System Compatible (Black) | |||
| Model | CPZ2-S | CPZ2-S1 | CPZ2-S2 |
| Dimensions | 40.6×40.4×1 mm | 40.6×40.4×1 mm | 40.6×40.4×1 mm |
| Aperture | None | Ø1 mm | Ø2 mm |
| Weight | 10.0 g | 10.0 g | 10.0 g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
- The alignment plate is used for visible-light alignment in cage optical systems and simplifies optical path collimation. The target surface has laser-engraved concentric rings and XY-axis scales for clear visual alignment.
(2) The central through hole is precisely centered on the cage assembly. Optional apertures: Ø1 mm, Ø2 mm, or no through hole. Suitable for 30 mm and 60 mm cage systems.

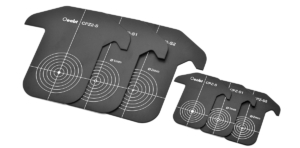

(3) Multiple variants available for selection.

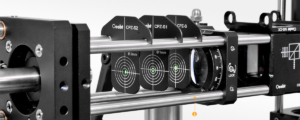

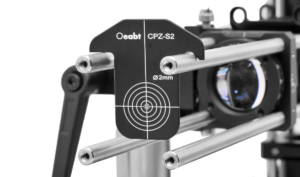

Assembly

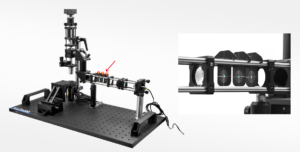

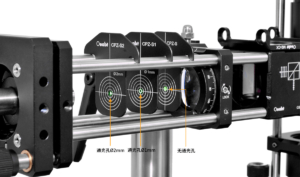

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CPZ-S（black）, CPZ-S1（black）, CPZ-S2（black）, CPZ-S（Matte Gray）, CPZ-S1（Matte Gray）, CPZ-S3（Matte Gray）, CPZ2-S, CPZ2-S1, CPZ2-S2 |
| Optic Type |
