Product Description For drift-free positioning of helium-neon lasers and other cylindrical objects. Two-axis adjustment: adjustment knobs provide ±4.5° pitch and ±4.5° yaw control. Compatible with cylindrical components ranging from Ø25.4mm to Ø44.5mm. Counterbores at the bottom

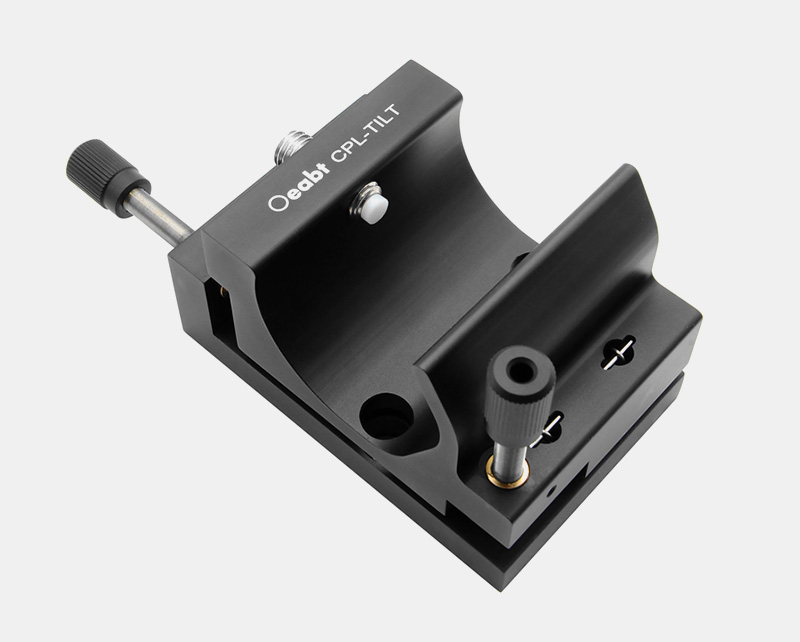

CPL-TILT Helium-Neon Laser Mount
$192.40
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- For drift-free positioning of helium-neon lasers and other cylindrical objects.
- Two-axis adjustment: adjustment knobs provide ±4.5° pitch and ±4.5° yaw control.
- Compatible with cylindrical components ranging from Ø25.4mm to Ø44.5mm.
- Counterbores at the bottom for easy horizontal or vertical mounting and fixing to platforms.

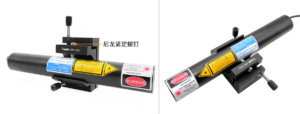

The mount offers two-axis precise angle adjustment and is suitable for drift-free positioning of cylindrical laser heads (Ø25.4mm-44.5mm) and other cylindrical objects. To prevent wobbling and vibration, it can be firmly fixed to the two contact surfaces formed by the U-shaped groove via side nylon set screws.
| Model | CPL-TILT |
| Dimensions | 96.5*63.4*63.1mm (excluding adjusters) |
| Adjustment Range | ±4.5° pitch, ±4.5° yaw |
| Adjustment Precision | M6*0.35 adjustment screws, 10.7mrad/rev |
| Clamping Diameter | Ø25.4-44.5mm |
| Thread Type | Ø6.3mm counterbores |
| Weight | 510.0g |
| Material | 7075 aluminum alloy |
Technical Description

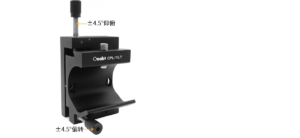

The high-resolution adjustment knobs provide ±4.5° pitch and ±4.5° yaw control, with an adjustment precision of 10.7mrad/rev, enabling smooth adjustment, low cross-coupling, and precise beam placement. It also features hardened and polished ball bearings and a U-shaped groove kinematic pivot to ensure repeatable angular orientation and stability
The mount offers two-axis precise angle adjustment and is suitable for drift-free positioning of cylindrical laser heads (Ø25.4mm-44.5mm) and other cylindrical objects. To prevent wobbling and vibration, it can be firmly fixed to the two contact surfaces formed by the U-shaped groove via side nylon set screws.

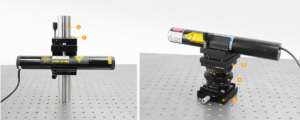

The bottom can be horizontally or vertically mounted to other adjustment mounts, rod clamps, or platforms through two Ø6.3mm counterbores with a spacing of 50*50mm.

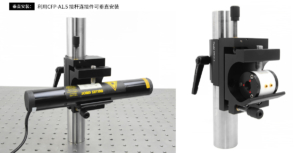

Vertical Mounting: Can be vertically mounted using CFP-A1.5 rod connectors.
Horizontal Mounting: [See corresponding diagram for details]
Assembly

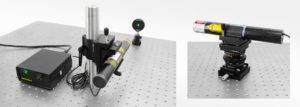

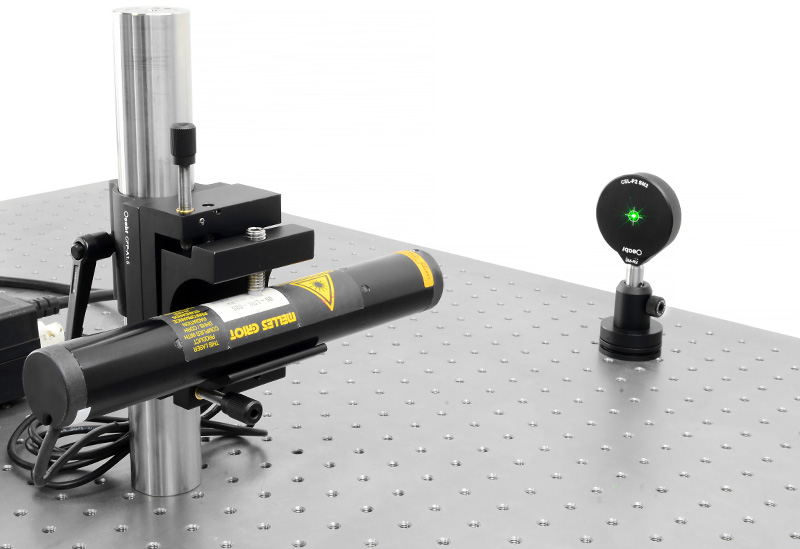

Application Example
Engineering Drawing Download
