VMB-A Series V-Shaped Micro-Pressure Clamp

Description

Product Description

• V-shaped micro-pressure clamp generating clamping force via spring actuation;
• VMB-A1 clamps cylindrical components with a maximum diameter of 12mm (Ø12mm);
• VMB-A2 holds circular components with a maximum diameter of 12.7mm (Ø12.7mm);
• VMB-A1 is equipped with a handle arm, and the clamp features an extended clip design;
• Mountable to rods or mounts via the threaded hole at the rear;

The V-shaped micro-pressure clamp generates clamping force through spring actuation, making it ideal for securing micro optical components.

Technical Description

• The V-shaped micro-pressure clamp generates clamping force through spring actuation, making it ideal for securing micro optical components (see the table below for specific clamping diameters), such as GRIN lenses (Graded Index Lenses), or other small optical components (e.g., optical fibers, micro optical lenses, etc.).

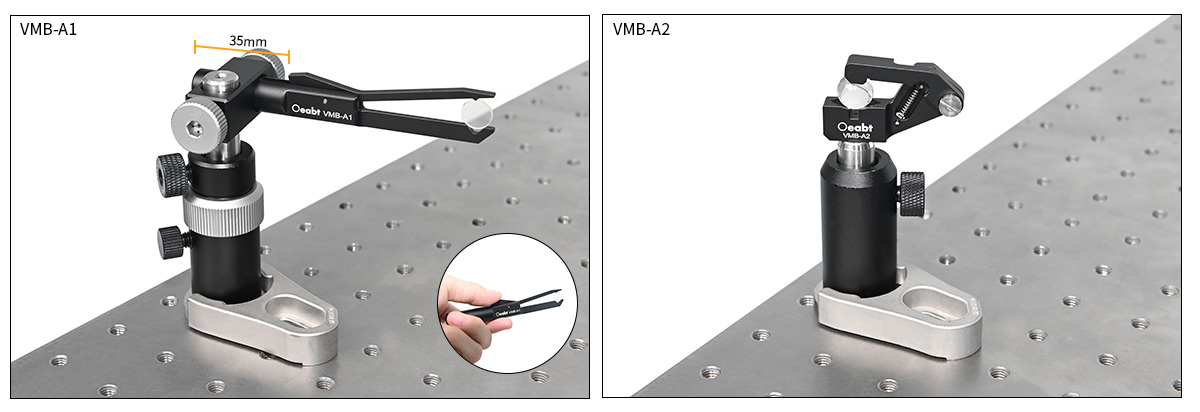

• VMB-A1: Equipped with a 35mm-long handle arm and extended clips, this design enables operability in hard-to-reach areas within optical setups.VMB-A2: Featuring a more compact design, it is suitable for optical devices that require space savings or have constraints on clamp volume.

• The threaded hole at the rear allows the V-shaped clamp to be directly mounted on a 1/2-inch (Ø1/2″) rod, facilitating integration into optical platforms or experimental setups. When combined with an XYZ translation stage, it enables precise movement and positioning of micro optical components.

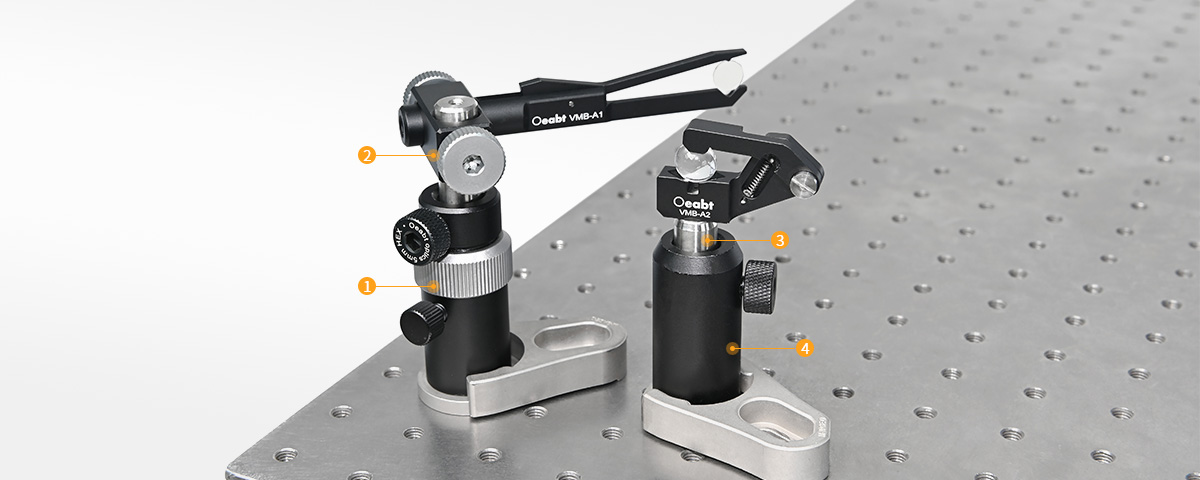

Assembly

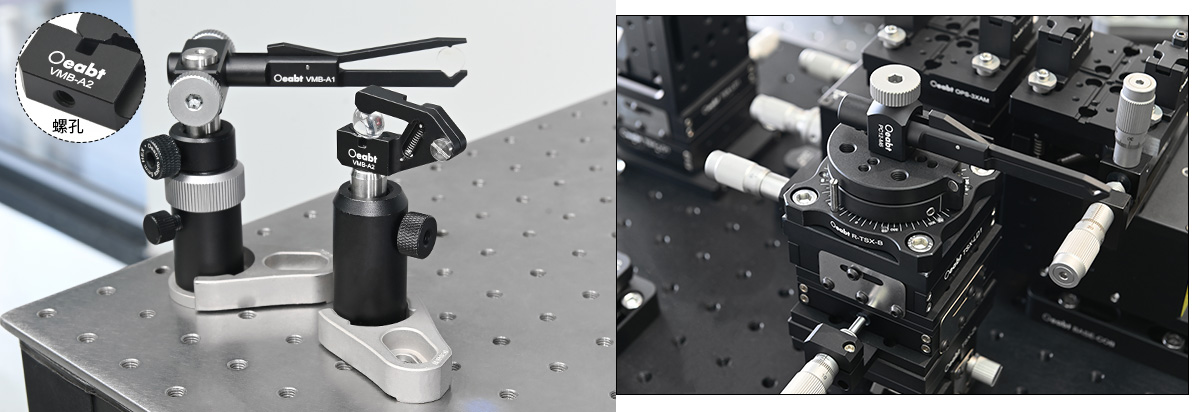

Application
