Product Description Integrated, compact right-angle adapter; Parallelism and perpendicularity deviation within ±0.05mm; Suitable for constructing three-axis translation stage accessories; Equipped with M6 threaded holes with standard hole spacing; The right-angle adapter is designed for vertically mounting
APT-L Series Small Right-Angle Adapter
Price range: $38.60 through $39.60
Description
Product Description
- Integrated, compact right-angle adapter;
- Parallelism and perpendicularity deviation within ±0.05mm;

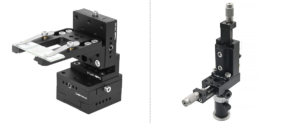

- Suitable for constructing three-axis translation stage accessories;
- Equipped with M6 threaded holes with standard hole spacing;

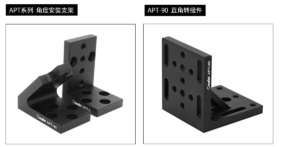

The right-angle adapter is designed for vertically mounting optical-mechanical components at a 90° angle relative to optical platforms, breadboards, or work surfaces, facilitating the formation of stable three-dimensional optical-mechanical assemblies.
| Model | APT-L2 |
| Specification | 64.0*32.1*32.1mm |
| Threaded Hole Type | Front panel: 5 positions of M65, 3 positions of M63 (countersunk holes);Bottom panel: 6 positions of M66, 2 positions of M62 (countersunk holes); |
| Weight | 62.6g |
| Material | 7075 Aluminum Alloy |
| Model | APT-L3 |
| Specification | 36.0*15.0*53.0mm |
| Angle Bracket | 90° |
| Countersunk Hole Type | Front panel: 2 positions of M6;Bottom panel: 2 positions of M6 |
| Weight | 39.2g |
| Material | 7075 Aluminum Alloy |

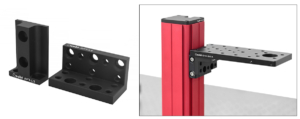

(1) The right-angle adapter is suitable for vertically mounting optical-mechanical components at a 90° angle relative to optical platforms, breadboards, or work surfaces, helping to form stable three-dimensional optical-mechanical assemblies. In terms of volume, APT-L2 and APT-L3 are more suitable for small components used in compact
(2) Both surface plates of this right-angle plate, which form a 90° angle with the optical platform, are provided with arrays of M6 threaded holes and countersunk holes with standard hole spacing for mounting to optical platforms or work surfaces.

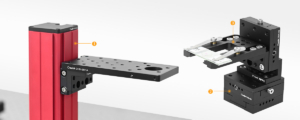

Assembly

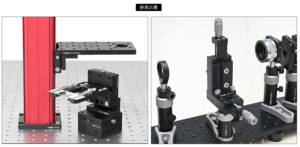

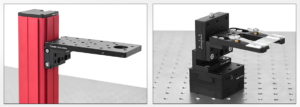

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | APT-L2, APT-L3 |
