Product Description Integrated aluminum structure with excellent rigidity; 90° right-angle support structure enhances installation mechanical performance; Parallelism and perpendicularity deviation within ±0.05 mm; Suitable for constructing stable three-dimensional optical-mechanical assemblies; The APT-90 series right-angle adapters feature
APT-90 Right-Angle Adapter
Price range: $47.00 through $172.40
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Integrated aluminum structure with excellent rigidity;
- 90° right-angle support structure enhances installation mechanical performance;
- Parallelism and perpendicularity deviation within ±0.05 mm;
- Suitable for constructing stable three-dimensional optical-mechanical assemblies;

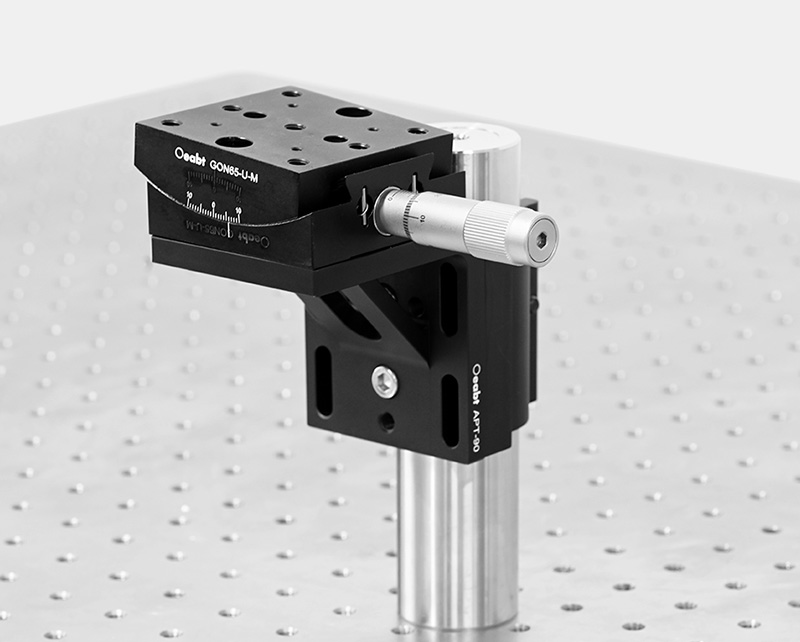

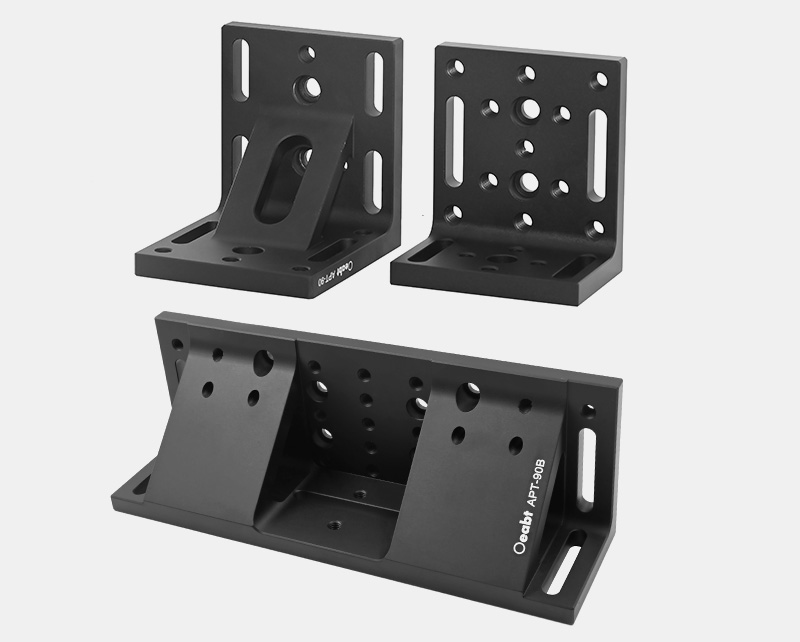

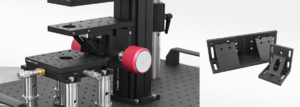

The APT-90 series right-angle adapters feature front and rear panels mutually perpendicular at 90°, making them ideal for three-dimensional optical-mechanical systems requiring vertical positioning.
| Model | APT-90 | APT-90A | APT-90B |
| Specification | 73*65*73mm | 73*65*46mm | 223.0*63.5*76.377mm |
| Thread Type | Top panel: 10 positions of M6, 2 positions of M6 (countersunk holes), 2 positions of 6.125mm through-hole slotsSide panel: 7 positions of M6, 2 positions of M6 (countersunk holes), 4 positions of 6.116mm through-hole slots | Top panel: 4 positions of M6, 1 position of M6 (countersunk hole), 2 positions of 6.125mm through-hole slotsSide panel: 10 positions of M6, 2 positions of M6 (countersunk holes), 2 positions of 6.125mm through-hole slots | Top panel: 31 positions of M6, 6 positions of M6 (countersunk holes), 2 positions of 6.135mm through-hole slotsSide panel: 6 positions of M6, through-hole slots: 2 positions of 6.135mm, 1 position of 6.1*50.8mm |
| Weight | 180.0g | 130.0g | 876.1g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The APT-90 series right-angle adapters are equipped with front and rear panels at 90° to each other, which are highly suitable for three-dimensional optical-mechanical systems requiring vertical positioning. The panels are provided with numerous threaded holes, countersunk holes, and through-hole slots for mounting to various adapter components, breadboards, or optical platforms.
(2)
Assembly

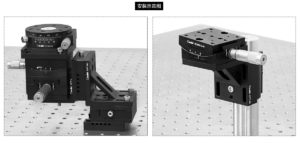

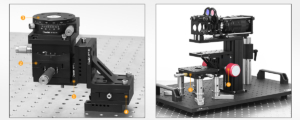

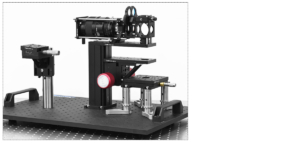

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | APT-90, APT-90A, APT-90B |
| Optic Type |
