VBTM Series V-Shaped Two-Axis Adjustment Clamps
VBTM Series V-Shaped Two-Axis Adjustment Clamps
Price range: $74.60 through $101.00
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description

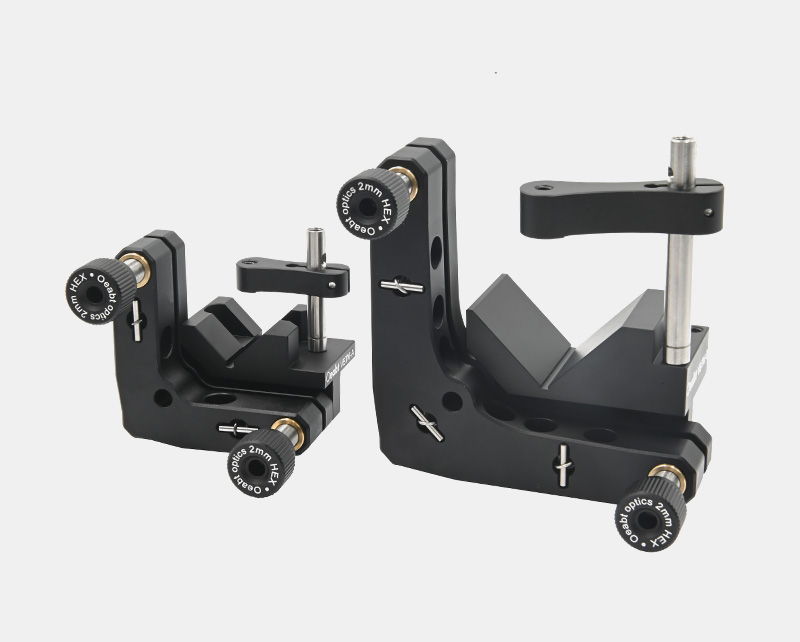

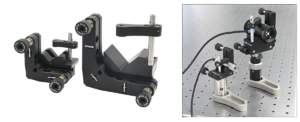

Clamps and mounts cylindrical components using a pressure arm.
Can hold cylindrical components with diameters ranging from Ø2mm to 41.7mm, such as fiber collimators and laser modules.
Provides ±4° pitch and yaw adjustment.
Height adjustment is achieved by adjusting the position of the rod.
The VBTM series adjustment clamps offer ±4° pitch/yaw adjustment, with M6*0.35 adjustment screws providing an angular precision of 0.84° per turn.
Model | VBTM-A | VBTM-B |
| Dimensions | 51.3*38.1*50.4mm (excluding adjusters) | 78.0*39.6*82.6mm (excluding adjusters) |
| Clamping Diameter | Ø2~Ø20.8mm | Ø7.4~Ø41.7mm |
| Adjustment Range | ±4° pitch and yaw, 0.84°/turn | ±4° pitch and yaw, 0.84°/turn |
| Weight | 96.1g | 196.4g |
| Material | Aluminum alloy + Stainless steel | Aluminum alloy + Stainless steel |
Technical Description
(1) The VBTM series adjustment clamps offer ±4° pitch/yaw adjustment, with M6*0.35 adjustment screws providing an angular precision of 0.84° per turn. They are suitable for cylindrical components of different diameter ranges, such as fiber collimators and laser modules. The included pressure arm applies clamping force to fix the position of the component.
(2)The VBTM-A clamp is suitable for holding cylindrical objects with diameters of Ø2~Ø20.8mm, while the VBTM-B clamp is designed for cylindrical objects with diameters of Ø7.4~Ø41.7mm. The VBTM-B features a larger frame and heavy-duty springs, capable of bearing a load of up to 1kg. Both mounts are equipped with M4 counterbores at the bottom for installing stainless steel rod series.

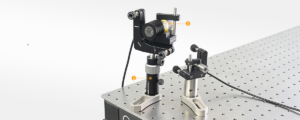

Assembly

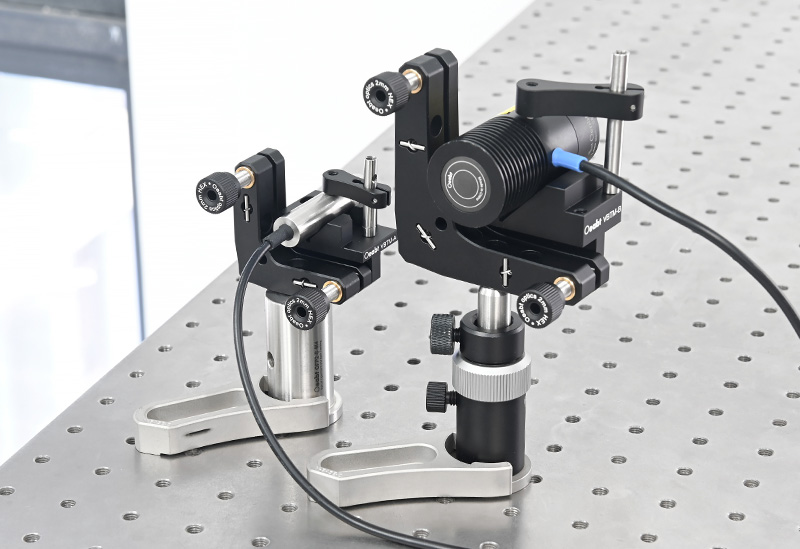

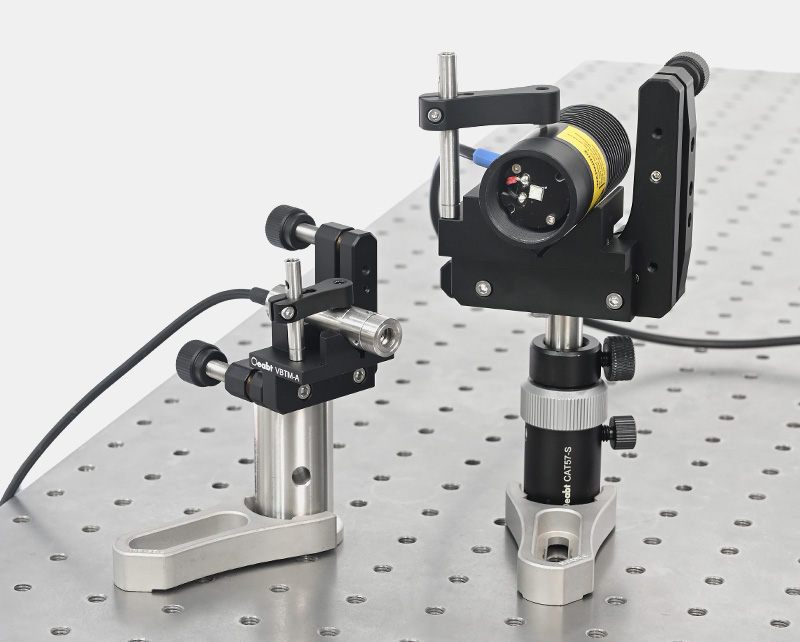

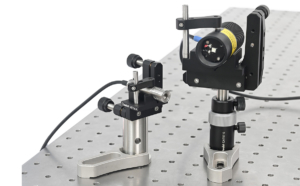

Application Example
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | VBTM-A, VBTM-B |
| Optic Type |
