Product Description Self-centering mechanism for quick optical component exchange. Compatible with mounting optical components ranging from Ø2.5mm to Ø50.8mm. Ideal for circular or square optical devices. Locking screws for secure fixation. With a unique claw-type lens
TOC-X Series Adjustable Self-Centering Mounts
Price range: $63.60 through $97.60
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Self-centering mechanism for quick optical component exchange.
- Compatible with mounting optical components ranging from Ø2.5mm to Ø50.8mm.
- Ideal for circular or square optical devices.
- Locking screws for secure fixation.

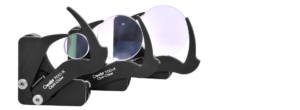

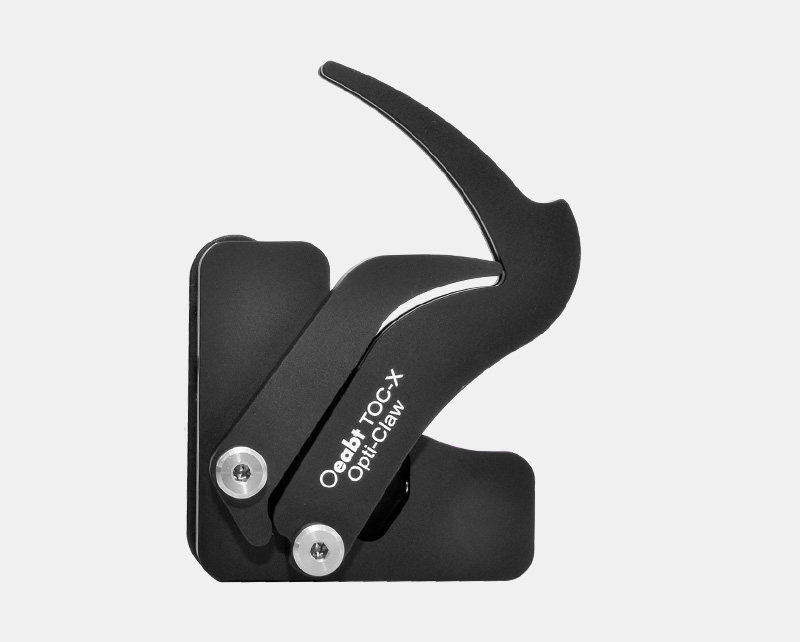

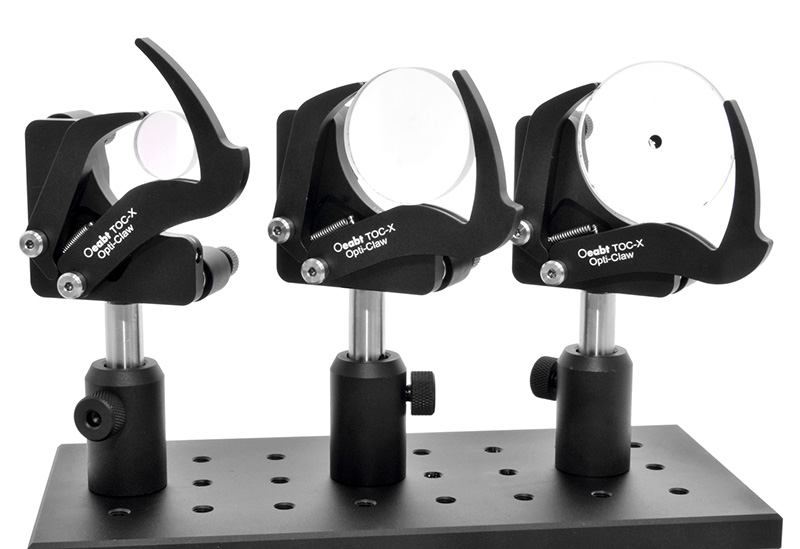

With a unique claw-type lens clamping design, there’s no need to adjust the mount height when using optical components of different diameters. The mount can automatically center optical components within the range of Ø0.1 inch (Ø2.5mm) to Ø2.0 inches (Ø50.8mm) to within 0.2mm. The automatic alignment movement of the V-shaped claws keeps the lens on the same optical axis regardless of its diameter.
| Specifications | Adjustable Tilt Model (TOC-X) | Fixed Model (TOC-X3) |
| Dimensions | 53.9*53.9*41.0mm (excluding claws) | 53.9*53.9*41.0mm (excluding claws) |
Angle Range | ±4° | None |
Compatible Lenses | Ø2.5-Ø50.8mm | Ø2.5-Ø50.8mm |
| Thread Type | M4 counterbores | M4 screw holes |
Optical Axis Height | 50.8mm | 50.8mm |
| Weight | 148.5g | 71.6g |
Material | 7075 aluminum alloy | 7075 aluminum alloy |
Technical Description
With a unique claw-type lens clamping design, there’s no need to adjust the mount height when using optical components of different diameters. The mount can automatically center optical components within the range of Ø0.1 inch (Ø2.5mm) to Ø2.0 inches (Ø50.8mm) to within 0.2mm. The automatic alignment movement of the V-shaped claws keeps the lens on the same optical axis regardless of its diameter.

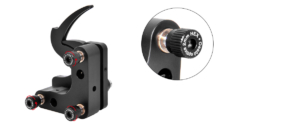

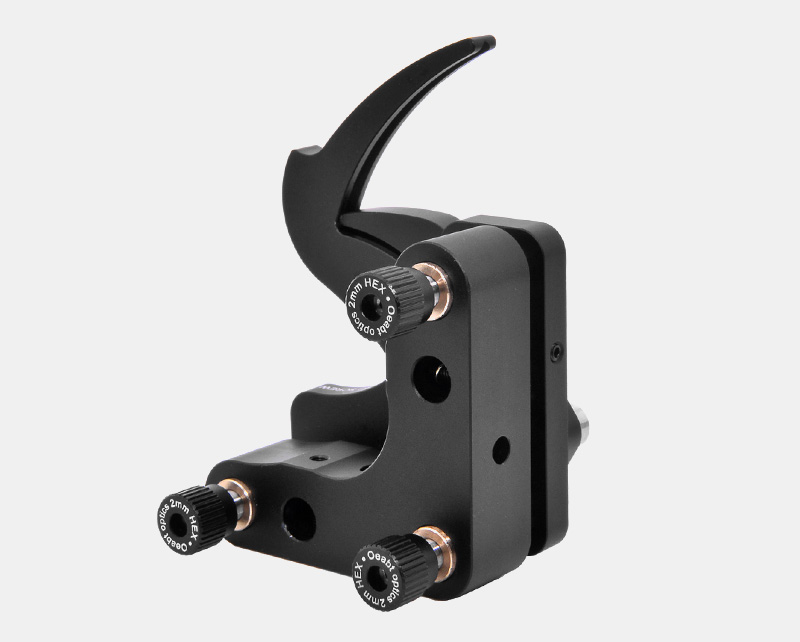

The TOC-X adjustable tilt model can provide ±4° pitch and tilt adjustment for optical components. The pitch and tilt adjustments are actuated by three 100TPI (Threads per Inch) adjustment screws, enabling very smooth and controlled displacement of the optical components.
During use, simply retract the spring-loaded mechanical arms and slide in an optical component. Once positioned, use a 2mm hex wrench to tighten the set screws, pushing the jaws against the mounting plate to lock it firmly like a fixed-diameter mount. The mount is equipped with M4 counterbores, which can be connected to Ø12mm rods using M4 cap screws for free-space setups.

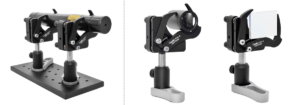

The mount is not limited to fixing optical lenses. In addition to circular cylindrical optomechanical components, the 3-point optical mount with V-shaped claw clamping design can also fix other square components or cylindrical optical assemblies.

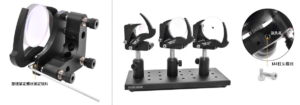

Assembly

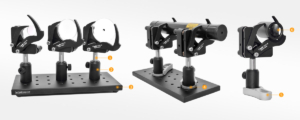

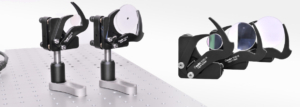

Application Example
Engineering Drawing Download
