Product Description Offers ±2.5° pitch and azimuth adjustment. Enables repeatable precision positioning of various cylindrical components. Clamping diameter range: Ø30-Ø35mm. Equipped with motion positioning points. Specifically designed as a Pockels cell adjustment mount. The TAL-PCH
TAL-PCH Tilt and Azimuth Adjustment Mount
$208.00
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Offers ±2.5° pitch and azimuth adjustment.
- Enables repeatable precision positioning of various cylindrical components.
- Clamping diameter range: Ø30-Ø35mm.
- Equipped with motion positioning points.
- Specifically designed as a Pockels cell adjustment mount.

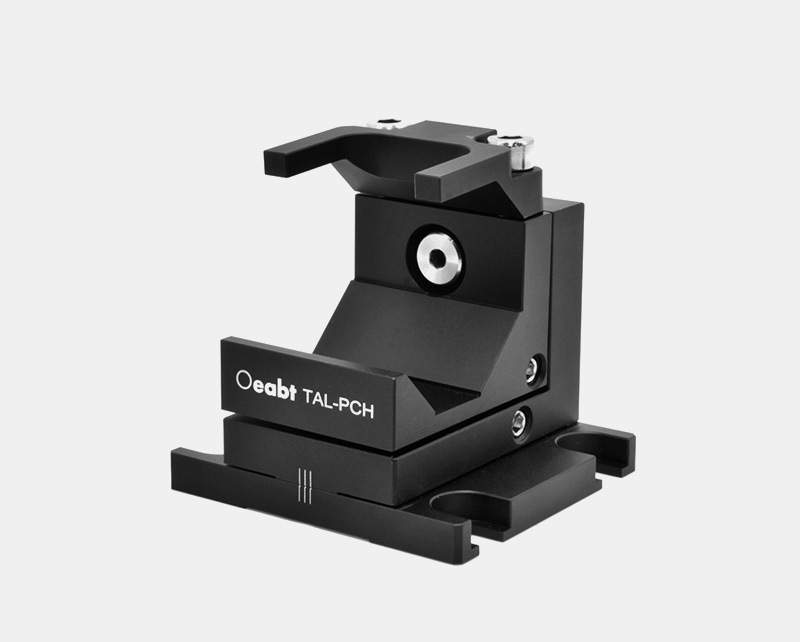

The TAL-PCH tilt adjustment mount is used for clamping cylindrical components with diameters of Ø30-Ø35mm, such as Pockels cells.
| Model | TAL-PCH |
| Dimensions | 60.0*55.5*59.0mm |
| Clamping Diameter | Ø30-Ø35mm |
| Adjustment Range | ±2.5° pitch and azimuth |
| Weight | 200.0g |
| Material | 7075 aluminum alloy |
Technical Description

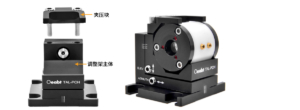

The TAL-PCH tilt ad justment mount is used for clamping cylindrical components with diameters of Ø30-Ø35mm, such as Pockels cells. It consists of a main mount body and a detachable clamping block. After placing the component, tighten the screws above the clamping block to fix its position.

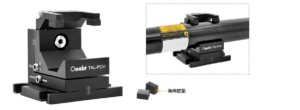

For cylindrical components with a diameter less than 35mm, use the two included foam pads. First, attach the pads to the bottom of the clamping block before clamping and fixing the component.

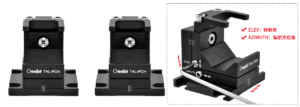

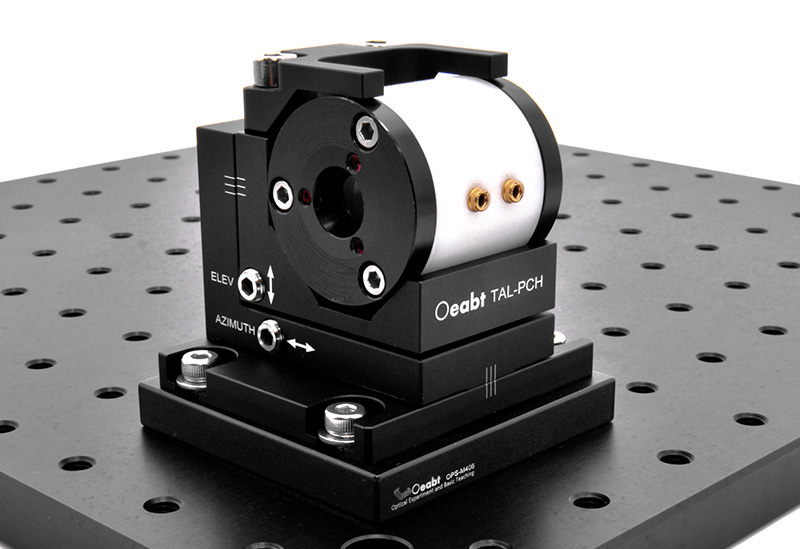

The mount provides ±2.5° pitch and azimuth adjustment respectively. Use a 3mm hex wrench to adjust the side “ELEV” (pitch) and “AZIMUTH” (azimuth) knobs for angle alignment. Both the front and side panels are laser-etched with three auxiliary lines as angle tilt indicators

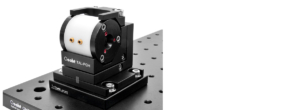

The bottom is equipped with 4 counterbores, which can be fixed to optical platforms or breadboards using the OPS-M406 adapter plate.
Assembly

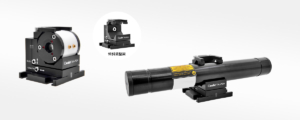

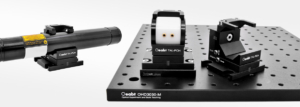

Application Example
Engineering Drawing Download
