PCM-S Series Ø6mm Cage Rods

Description

Product Description

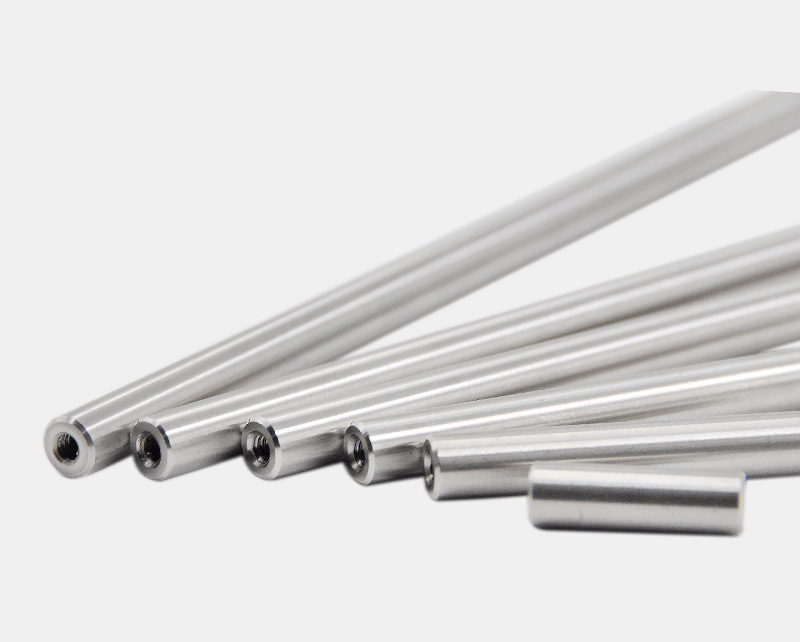

• Manufactured to standard imperial specifications with a diameter of Ø6mm, compatible with all 6mm through holes;
• The C-position interface is threaded with American coarse thread, featuring a 4-40 internal thread and a hole depth of 5mm;
• Compatible with 4-40 American set screws, enabling precise and anti-loosening connection;
• Made of 304 stainless steel with a fine grinding process for enhanced surface smoothness;
• Available in various lengths for flexible combination and adaptation when building cage coaxial systems;
• Female threads at both ends facilitate length extension of the rods.

Oeabt cage assembly rods are made of stainless steel. The C-position interface of the cage rod is designed with a 4-40 internal thread and a 5mm hole depth, allowing the cage rods to be connected end-to-end. With a wide range of length options, they can be freely combined and adapted for the construction of cage coaxial systems.

Technical Description

(1) Both ends of the Ø6mm rod are equipped with 4-40 threaded holes. One end of the rod is fitted with a detachable 4-40 set screw, exposing the 4-40 threaded hole after removal. This design allows multiple cage rods to be connected together, suitable for 30mm and 60mm cage systems and convenient for constructing experimental setups.

(2) A wide range of length options are available. The PCM-S series offers lengths from 19mm to 228mm, while the PCM-E series is available in lengths from 0.5 inch to 8 inches.

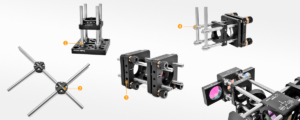

Assembly

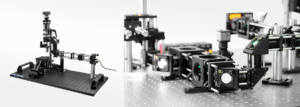

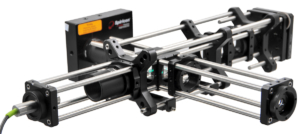

Application Examples

Engineering Drawings

PCM-S Engineering Drawing
