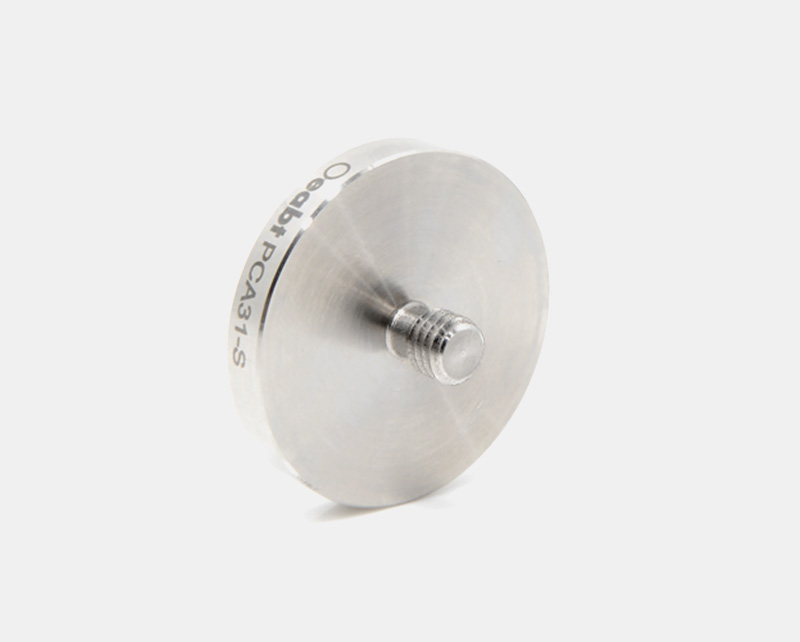

Specification：Ø31.6*12.1mm
PCA31-S Rod Base
$6.60
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Converts Ø12mm rod holders and Ø25mm rods into base-mounted rods.
- Made of solid stainless steel, equipped with one M6 bolt.
- Used with fork-shaped pressure plates.

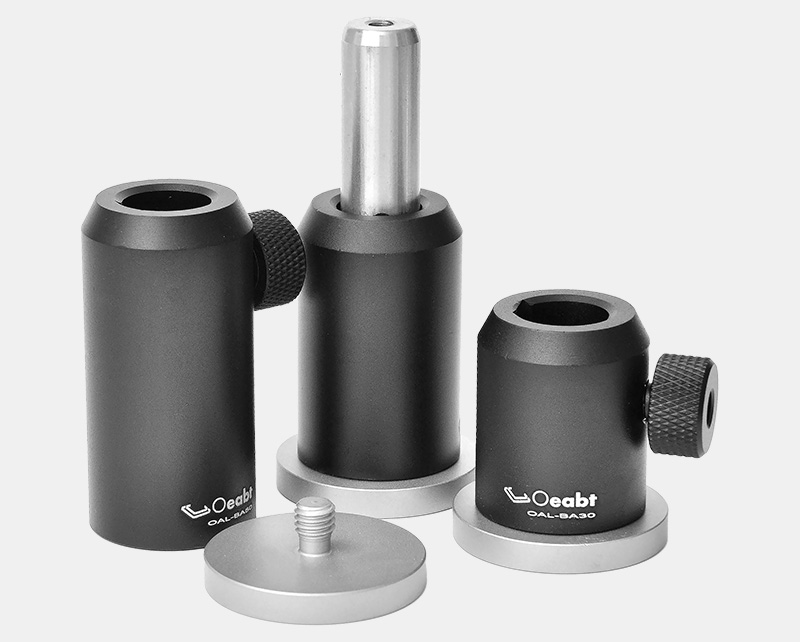

The base is fitted with an M6 bolt that can be screwed into the bottom of Ø12mm rod holders and Ø25mm rods, converting them into base-mounted rods. It is designed for use with our M-BASE series fork-shaped pressure plates.
| Model | PCA31-S |
| Dimensions | Ø31.6*12.1mm |
| Thread Type | M6 bolt |
| Weight | 29.4g |
| Material | 304 stainless steel |
Technical Description

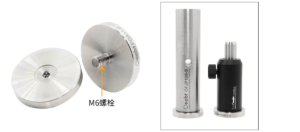

The base is fitted with an M6 bolt that can be screwed into the bottom of Ø12mm rod holders and Ø25mm rods, converting them into base-mounted rods. The bottom can be further fixed to the rod or rod holder with additional force using a 3mm hex wrench or ball-head screwdriver.

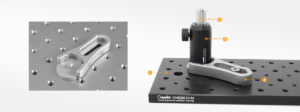

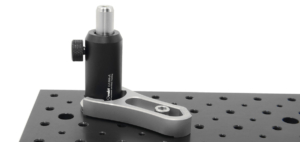

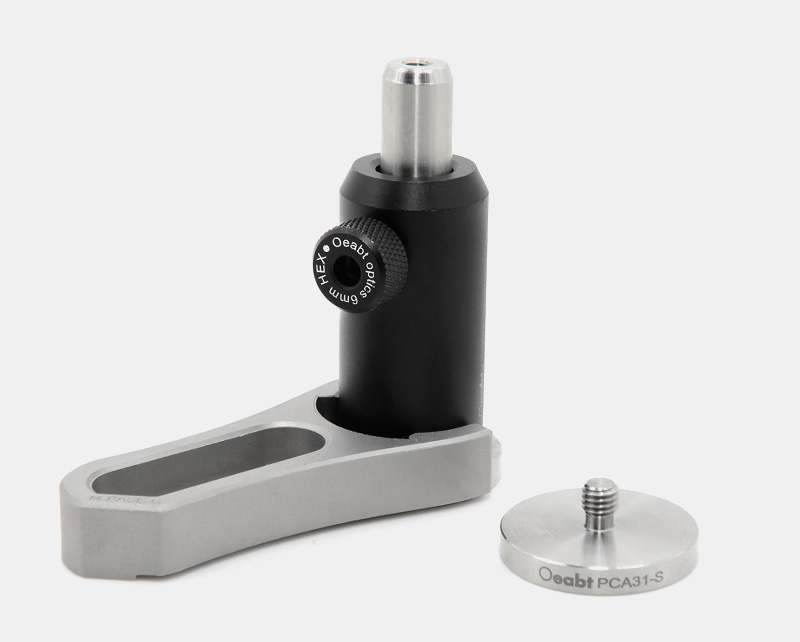

With an outer diameter of Ø31.6mm, it is used to pair rods with our M-BASE series fork-shaped pressure plates. The fork-shaped pressure plates can fix the converted base-mounted rods to breadboards or optical platforms.
Assembly
Manual assembly and installation

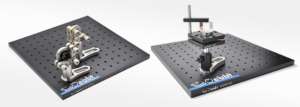

Application Example
Oeabt’s screw base, used with elevated sleeves, enables flexible assembly in various free-space optical experiments.
Engineering Drawing Download
