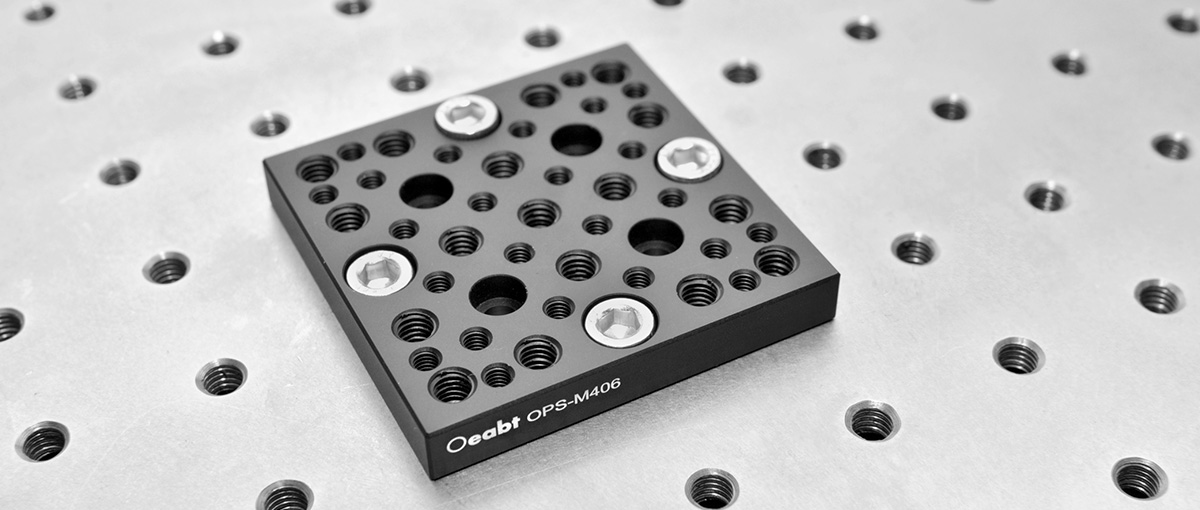

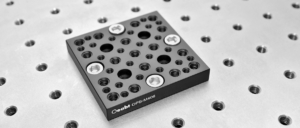

OPS-M406 Series Dimension Adapter Plate
$16.20
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- The adapter plate provides mounting holes suitable for most orientations, enhancing the flexibility of optical setups;
- Mount connecting rod brackets via M6 countersunk holes at the bottom;
- Install on breadboards or optical platforms through countersunk holes for M4/M6 cap screws;
- Countersunk holes on the plate also enable imperial optical platforms to accept metric components;
The universal adapter plate offers mounting holes in almost all orientations, allowing flexible installation of any optical equipment onto optical platforms or breadboards. This degree of freedom permits users to install various components or platforms in a wide-range array beyond the standard 1-inch (25mm) hole pattern. Additionally, the countersunk holes on the plate enable imperial optical platforms to accommodate metric components.
| Dimension Adapter Plate | Dimension Adapter Plate | Dimension Adapter Plate | |
| Model | OPS-MCT | OPS-M406 | OPS-M406A |
| Specification | 63.5*63.5*9.0mm | 63.5*63.5*9.0mm | 63.5*63.5*9.0mm |
| Thread Type | Countersunk holes: 4 positions of M4, 4 positions of M6;Threaded holes: 32 positions of M4, 9 positions of M6 | Countersunk holes: 4 positions of M4, 4 positions of M6;Threaded holes: 24 positions of M4, 17 positions of M6 | Countersunk holes: 4 positions of M4, 4 positions of M6;Threaded holes: 24 positions of M4, 17 positions of M6 |
| Weight | 70.9g | 69.1g | 70.9g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) Equipped with mounting holes compatible with the threaded hole arrangements of nearly all optical platforms and breadboards, enabling flexible assembly of optical equipment. Optical components or platforms can be installed in any orientation.
(2) OPS-M406: 4 positions of M4 countersunk holes and 4 positions of M6 countersunk holes (4 openings on the front panel); 24 positions of M4 threaded holes and 17 positions of M6 threaded holes;

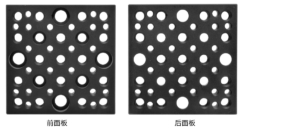

(3) OPS-M406A: 4 positions of M4 countersunk holes and 4 positions of M6 countersunk holes (2 openings on both the front and rear panels); 24 positions of M4 threaded holes and 17 positions of M6 threaded holes;
(4) OPS-MCT: 4 positions of M4 countersunk holes and 4 positions of M6 countersunk holes (2 openings on both the front and rear panels); 32 positions of M4 threaded holes and 9 positions of M6 threaded holes;
(5) Can be used with connecting rod clamping blocks, translation stages, etc. The combined design of such clamping blocks and panels is suitable for installing optical-mechanical components with different requirements. Compared with OPS-M406, OPS-M406A is provided with 2 M6 countersunk holes on both the front and rear panels, which is more suitable for stable connection with connecting rod clamping blocks.
Assembly

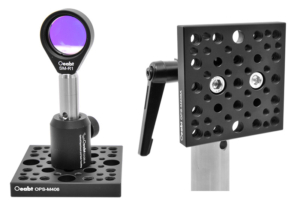

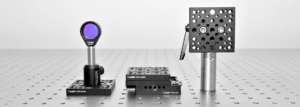

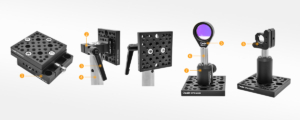

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | OPS-M406, OPS-M406A, OPS-MCT |
| Optic Type |
