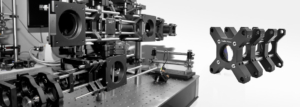

LPCM Series Cage Adapter
Price range: $31.00 through $33.00
Description
Product Description
- Adapts between different-sized cage systems using the adapter
- Couples 30 mm and 60 mm cage systems
- Compatible with PCM-S series cage rods
- Multiple adapter variants allow direct mounting of Ø1 inch optical components of various thicknesses
- Bottom M4 threaded holes for mounting Ø12 mm posts

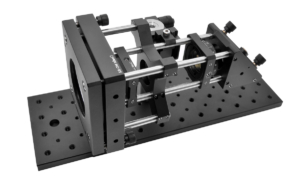

Couples 30 mm and 60 mm cage assemblies via Ø6 mm cage rods. Two such adapters can bridge a 30 mm cage subassembly between them, allowing the entire 30 mm subsystem to slide along Ø6 mm cage rods as a single optomechanical unit. 60 mm cage assemblies can also be integrated using cage plate adapters.
| Description | 30 mm to 60 mm Cage Adapter |
| Dimensions | 70.6×70.6 mm |
| Through Hole Spacing | Ø6 mm, 30×30 mm spacing |
| Lens Mounting | Ø1 inch optical components |
| Material | 7075 Aluminum Alloy |
| Model | Specifications |

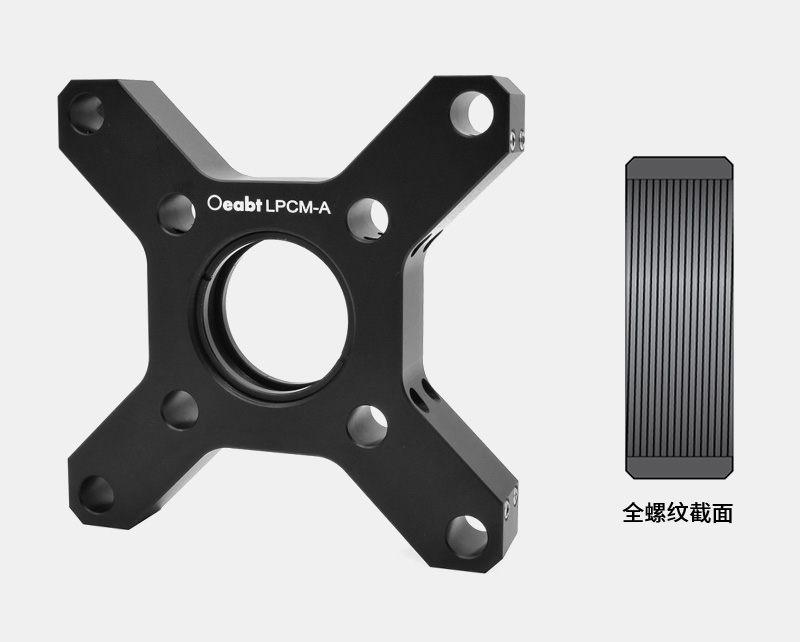

| LPCMA | Dimensions: 70.6×70.6×12 mm; Center Port: Full SM1 (1.035″-40) thread; Weight: 71.0 g |
| LPCMB | Dimensions: 70.6×70.6×12 mm; Center Port: Partial SM1 (1.035″-40) thread; Weight: 71.0 g |
| LPCMC | Dimensions: 70.6×70.6×12 mm; Center Port: Ø30.5 mm; Weight: 63.3 g |
| LPCMD | Dimensions: 70.6×70.6×6 mm; Center Port: Full SM1 (1.035″-40) thread; Weight: 35.4 g |
Technical Description
(1) The cage plate adapter provides a simple way to couple 30 mm and 60 mm cage assemblies using our Ø6 mm cage rods. Different profile thicknesses suit limited axial space; the center SM1 (1.035″-40) threaded hole allows direct mounting of optical components of various thicknesses.

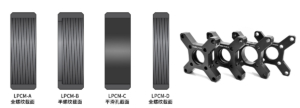

(2) The adapter series is available in multiple variants for mounting Ø1 inch optical components of different thicknesses:
- LPCM-A: Full SM1 thread, for optical components up to 8 mm thick
- LPCM-B: Partial SM1 thread, for optical components up to 9 mm thick
- LPCM-C: Smooth through hole with 3point retention, for optical components ≥3 mm thick
- LPCM-D: Full SM1 thread, for optical components up to 2 mm thick
(3) Each cage rod through hole has two set screws on the side, secured with a 1.3 mm hex wrench. M4 threaded holes are also provided for mounting Ø12 mm posts. The surface with M4 threaded holes is not wide enough for Ø1 inch posts.

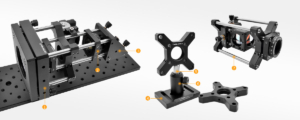

Assembly

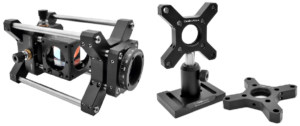

Application Examples
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | LPCM-A, LPCM-B, LPCM-C, LPCM-D |
