Product Description Offers ±4° pitch adjustment and ±2mm translation along the Z-axis. Ideal for prisms, rectangular, or circular optical components when used with pressure arms/optical component mounts. Multi-thread array on the tabletop. M4 screw hole at
LB-A3 Tilt Adjustment Mount
$59.60
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Offers ±4° pitch adjustment and ±2mm translation along the Z-axis.
- Ideal for prisms, rectangular, or circular optical components when used with pressure arms/optical component mounts.
- Multi-thread array on the tabletop.
- M4 screw hole at the bottom for connecting rods in free-space setups.

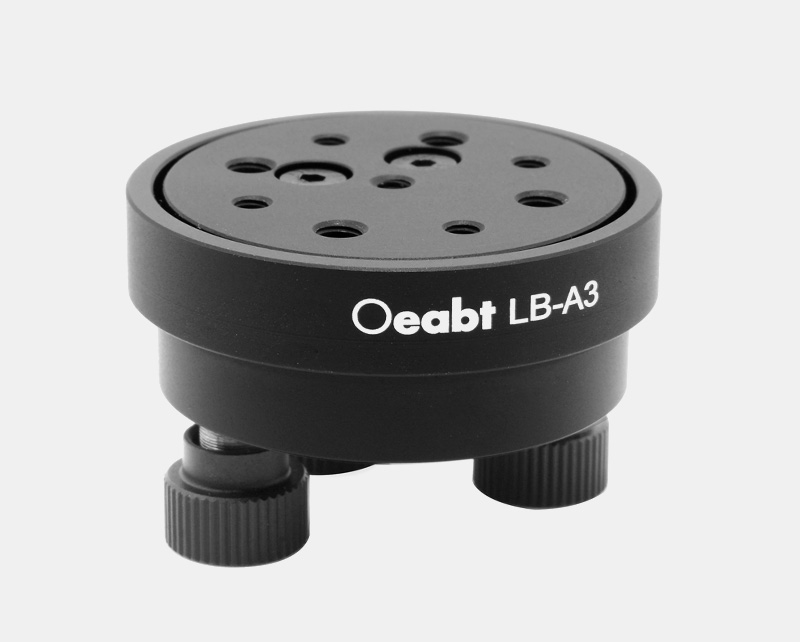

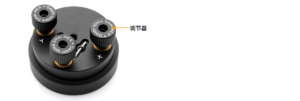

The LB-A3 tilt adjustment mount is equipped with three adjusters on the back, providing pitch adjustment with a range of ±4°.
| Model | LB-A3 |
| Dimensions | Ø50.3*17.0mm |
| Thread Type | 5 M3 screw holes, 5 M4 screw holes |
| Adjustment Range | ±4° pitch adjustment, ±2mm Z-axis lift |
| Weight | 75.8g |
| Material | 7075 aluminum alloy |
Technical Description
The LB-A3 tilt adjustment mount is equipped with three adjusters on the back, providing pitch adjustment with a range of ±4°.

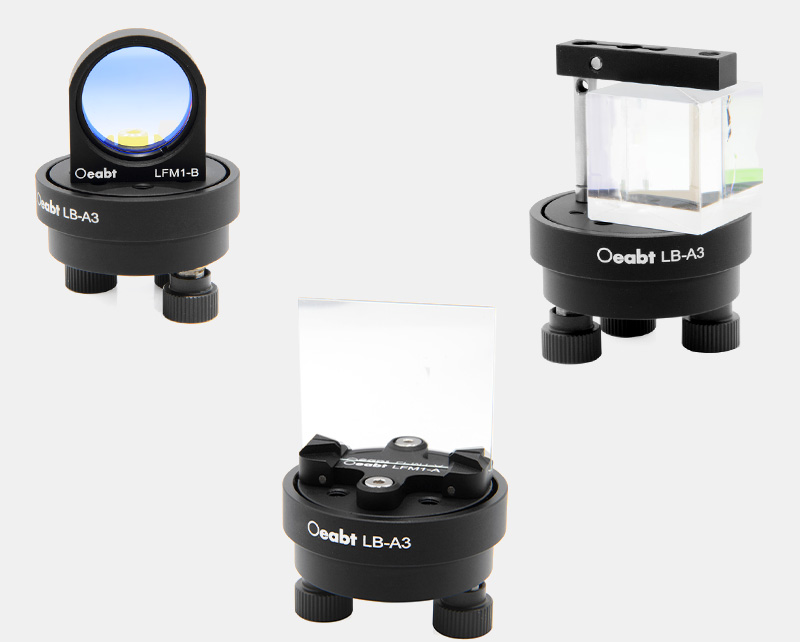

The tabletop is equipped with 5 M3 screw holes and 4 M6 screw holes, compatible with pressure arms or optical component mounts for clamping and installing rectangular, square, or circular optical components onto the adjustment mount. The PRK3-A30 pressure arm can clamp prisms up to 25.4mm. The LFM1-A rectangular filter mount can install filters with a thickness less than 3mm and a width of 28-40mm, while the LFM1-B can install Ø1-inch optical components up to 6.2mm thick.
The bottom of the platform is equipped with one M4 screw hole, allowing direct installation onto our Ø12mm rods.
Assembly

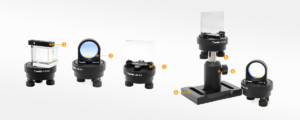

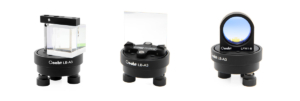

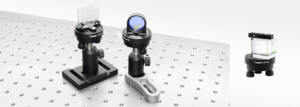

Application Example
Engineering Drawing Download
Additional information
| Weight | 0.0758 kg |
|---|---|
| Optic Type |
