FM40-A 90-Degree Optical Path Switching Stage

Description

Product Description

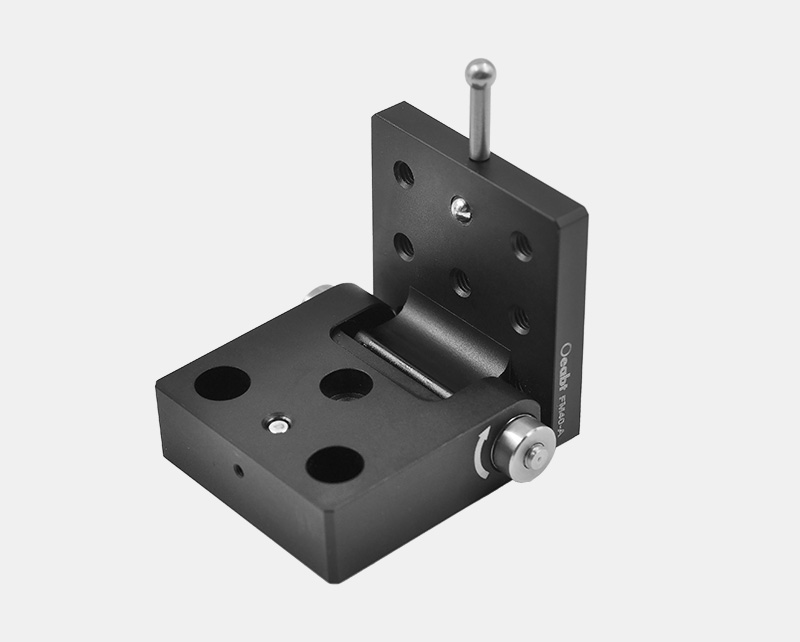

• The flip stage simplifies switching optical components during optical path experiments, with a flip cover design for 90° angle rotation.
• When used in combination with mirror mounts, the FM40-A offers excellent positional stability and repeatability during repeated removal and insertion.

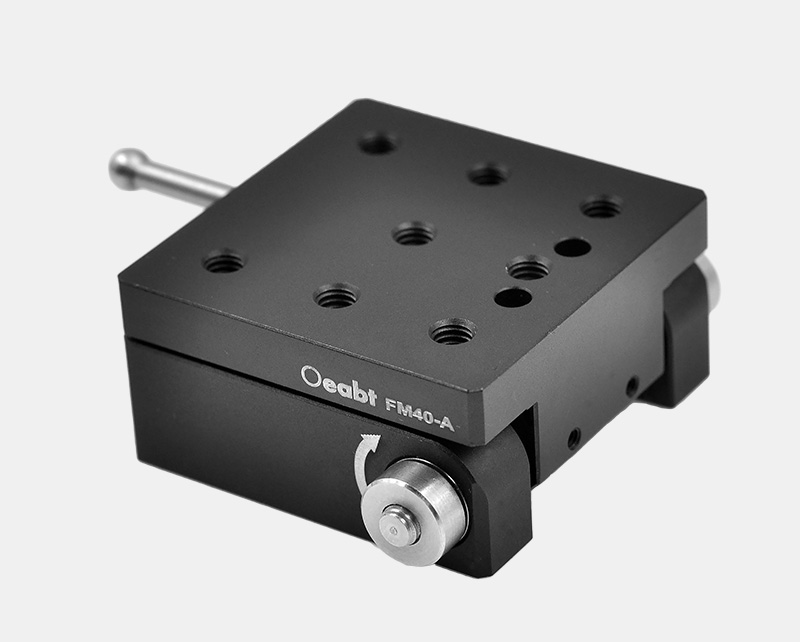

• The stage is equipped with 8 (M4) threaded holes for mounting various components.
• Can be installed on stainless steel support rods.

The flip stage makes adding or removing components from the setup easier without repositioning them on the optical platform. The angle of the top plate can be switched between 0° and 90° relative to the optical platform surface. The 90° flip of the stage enables optical path switching and reproduction with excellent repeatability.

Technical Description

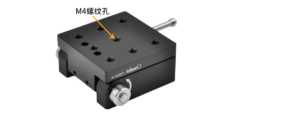

The stage is equipped with 8 M4 threaded holes for adapting and mounting various mirror mounts.

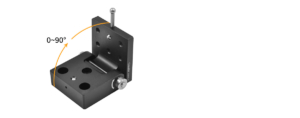

Using the included M5-to-M6 adapter at the bottom for installation on support rods, the angle of the top plate can be switched between 0° and 90° relative to the optical platform surface.

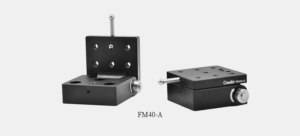

Assembly

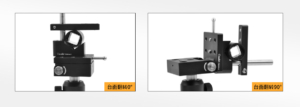

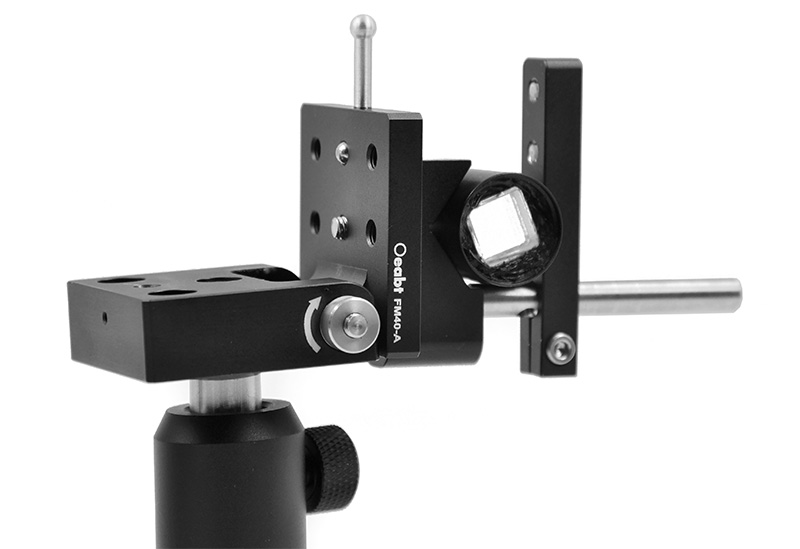

Application Example

The flip stage makes adding or removing components from the setup easier without repositioning them on the optical platform.

Engineering Drawing Download

FM40-A-Engineering Drawing
