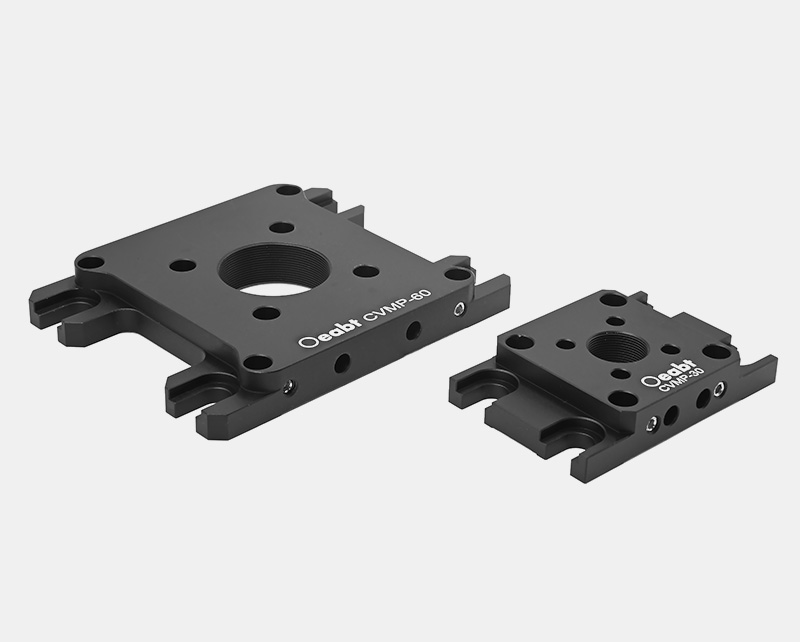

CVMP Series Cage Vertical Mounting Plate
CVMP Series Cage Vertical Mounting Plate
$37.40
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Mounts cage assemblies vertically to optical platforms
- Compatible with 16 mm, 30 mm, and 60 mm cage systems
- Center aperture compatible with SM05 or SM1 threaded components
- Countersunk slots for secure mounting to optical breadboards
The vertical mounting plate enables vertical mounting of 16 mm, 30 mm, and 60 mm cage systems to optical platform surfaces, and allows compatible conversion between differentsize cage systems.
| Model | CVMP30 | CVMP60 |
| Dimensions | 62.0×40.6×11.4 mm | 91.4×71.1×11.4 mm |
| Center Aperture | SM05 (0.535″40) internal thread | SM1 (1.035″40) internal thread |
| Cage Compatibility | 16 mm, 30 mm | 30 mm, 60 mm |
| Weight | 47.0 g | 120.0 g |
| Countersunk Slots | 4×Ø6.5 mm | 4×Ø6.5 mm |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
- The vertical mounting plate enables vertical mounting of 16 mm, 30 mm, and 60 mm cage systems to optical platform surfaces, and supports compatible conversion between differentsize cage systems. The CVMP30 converts between 16 mm and 30 mm cage systems, while the CVMP60 converts between 30 mm and 60 mm cage systems.
(2) The top surface features 8 mounting holes for cage rods, which can be secured using side set screws with a 2 mm hex wrench. In addition, the central SM05 or SM1 threaded hole allows compatibility with various SMseries threaded components, further expanding its application range.
(3) Four Ø6.5 mm countersunk slots are machined on all sides of the mounting plate, allowing stable mounting to both imperial and metric optical breadboards.

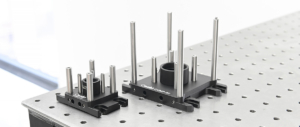

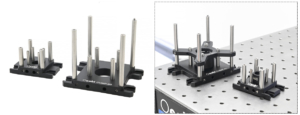

Assembly

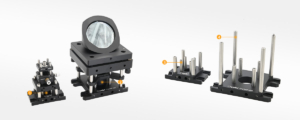

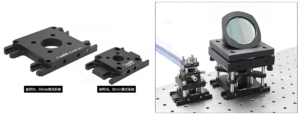

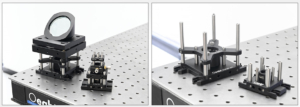

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CVMP-30, CVMP-60 |
| Optic Type |
