Product Description Quick-connect clamp mount for 30 mm and 60 mm cage systems Enables easy insertion and removal from cage systems Single locking screw on the clamp for fast, simple locking of cage assemblies Can be mounted on

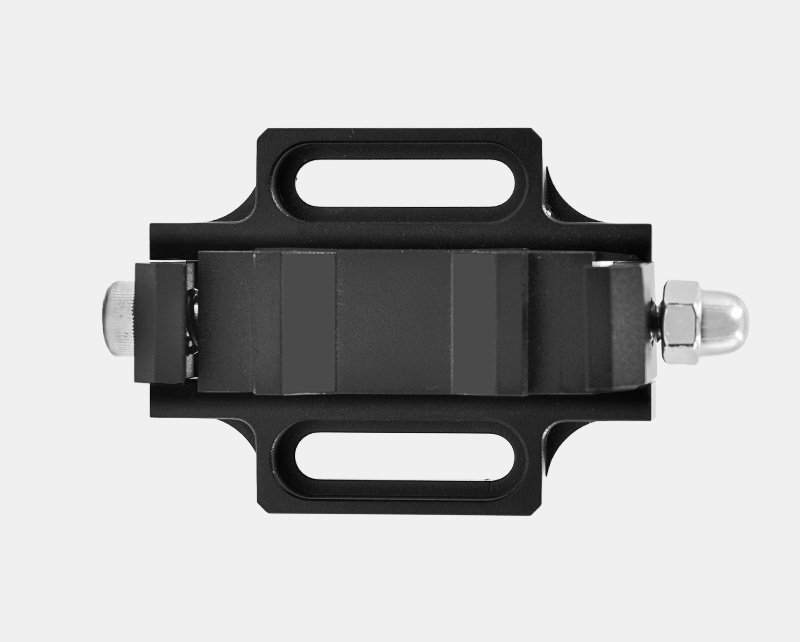

CSK-A Series Clamp Mount
Price range: $3.60 through $44.00
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description

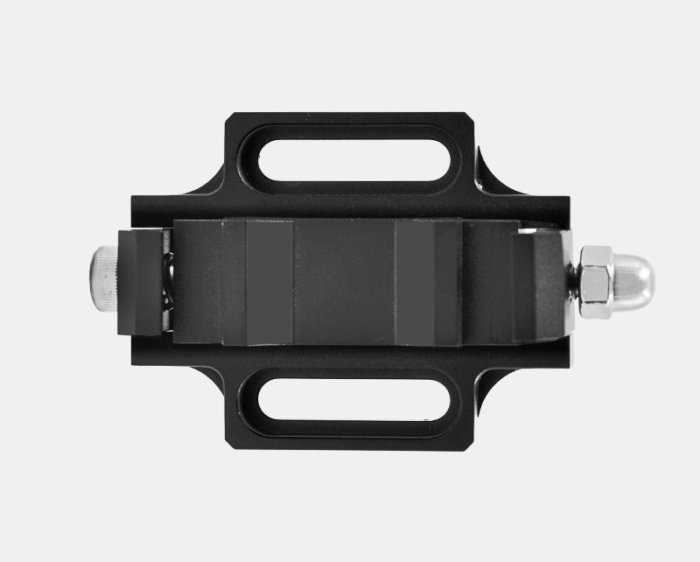

Product Description
- Quick-connect clamp mount for 30 mm and 60 mm cage systems
- Enables easy insertion and removal from cage systems
- Single locking screw on the clamp for fast, simple locking of cage assemblies

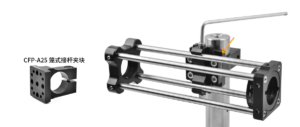

- Can be mounted on a Ø25 mm post with a post clamp block
- Allows fast, stable setup of cage systems
The clamp mount is designed for 30 mm and 60 mm cage systems respectively. Two parallel cage rods are inserted into the mount and secured with a single screw. The entire cage system can be supported by a single post. A 3/16 in (5 mm) ball-end screwdriver is used to tighten the high-stability flexible locking mechanism, fixing the mount to the Ø25 mm post.
Technical Description

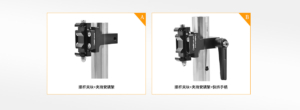

(1) Four M4 screws can be installed into the Ø4 mm, 20 mm long counterbored holes to secure the mount to a post clamp block (cage post clamp blocks available separately). The top is secured with a single screw; a ball-end screwdriver tightens the high-stability flexible locking mechanism to firmly attach the mount to a Ø25 mm post.

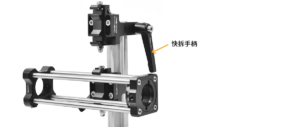

(2) This is a kit with a quick-release handle for fast adjustment of the clamp mount. The handle is used to lock the clamp block to the post. Handle length: 2.36 in (60 mm), with a 1/4″-20 (M6) bolt for direct twist installation, reducing setup and alignment time for adjusting the clamp mount.

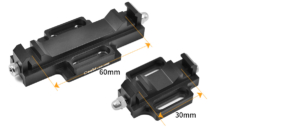

(3) 30 mm clamp mount dimensions: 46 mm × 35 mm
60 mm clamp mount dimensions: 76 mm × 35 mm
Uses a threaded bar and spring drive for quick, convenient fastening.
Assembly

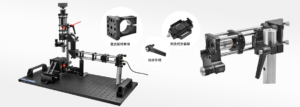

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | CSK-A30, CSK-A60, CFP-A25, M6-16 |
| Optic Type |
