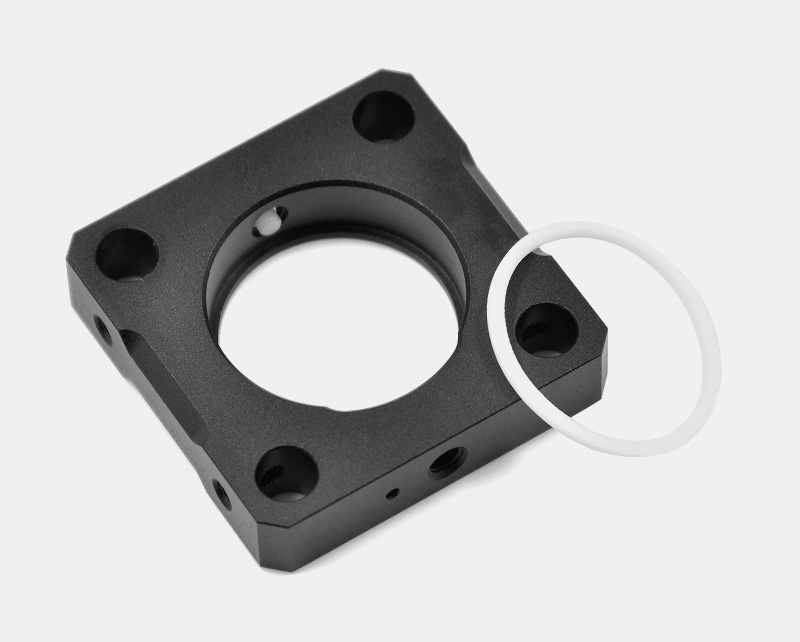

CSJ-25 30mm Cage Plate Mount

Description

Product Description

• The CSJ-25 cage plate mount is suitable for mounting optical elements compatible with Ø1 inch (25.4mm) or 25mm specifications
• Optical elements can be mounted directly within 30mm cage systems
• The limiting hole mounting area provides stable two-line contact for optical elements
• Can be mounted on stainless steel connecting rods via the M4 threaded mounting holes at the bottom
• Secures elements with nylon set screws on the top

This cage plate enables the mounting of Ø1 inch reflectors or other optical components into 30mm cage systems. The limiting hole mounting area delivers stable two-line contact for optical elements. Nylon set screws are featured on the top of the cage plate, with which optical elements can be fixed using a ball head screwdriver or a hex wrench. An 8-32 (M4) threaded hole is also provided at the bottom for connecting rod installation. Each cage rod through-hole is fitted with a set screw on the side, which can be tightened with a ball head screwdriver.

Technical Description

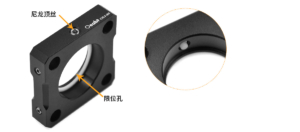

(1) Nylon set screws enable stable fixation of optical lenses; the limiting hole mounting area provides stable two-line contact for optical elements.

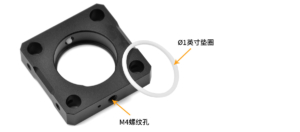

(2) The M4 threaded hole at the bottom allows mounting on stainless steel connecting rods for the combination and construction of various opto-mechanical components. One Ø1 inch PTFE washer is included; additional washers are available for separate purchase.

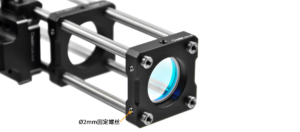

(3) M6 through-holes are compatible with Ø6mm cage rods; the side-mounted cage rod set screws are 2mm and can fix the cage rods stably.

Assembly

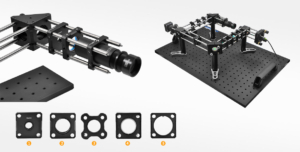

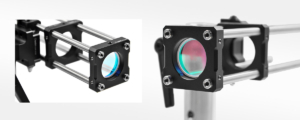

Application Examples

Engineering Drawings

CSJ-25 Engineering Drawing
