Product Description The CSJ-13 SM05 threaded cage plate accepts Ø1/2 inch optical components. It features a 0.35 inch (8.89 mm) thick center bore with SM05 threading, compatible with Ø1/2 inch lens sleeves. Maximum optical component thickness:

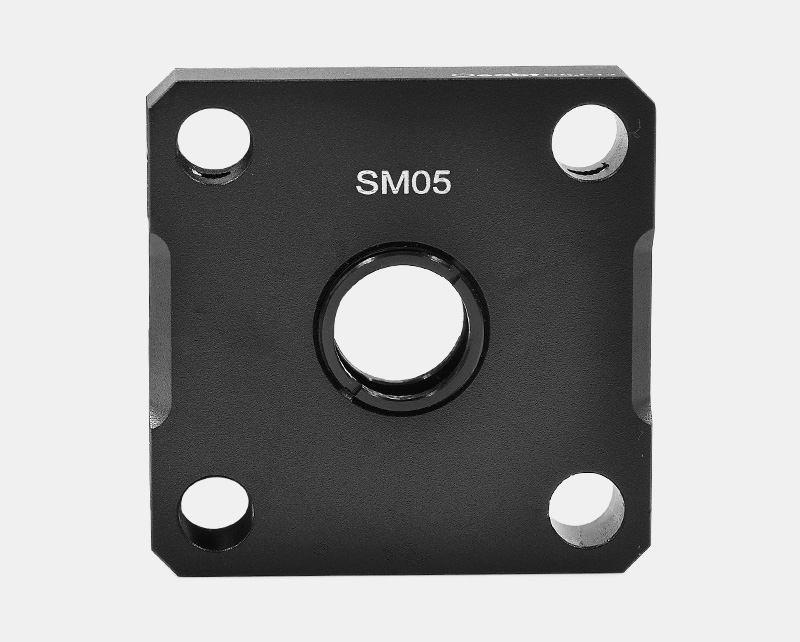

CSJ-13 SM05 Threaded Cage Plate
$19.60
Similar products
- CPF30 Adjustable Cage System Mount
- CSD-M Series QuickRelease Cage Plate
- CRD-25 30mm Cage Rotation Mount
- CDM-12 Ring-Driven Adjustable Iris Diaphragm
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- The CSJ-13 SM05 threaded cage plate accepts Ø1/2 inch optical components.
- It features a 0.35 inch (8.89 mm) thick center bore with SM05 threading, compatible with Ø1/2 inch lens sleeves.
- Maximum optical component thickness: 5 mm.
- The cage plate is supplied with two SM05 retaining rings.
- A bottom M4 threaded hole allows mounting on stainless steel posts.
- Compatible with 30 mm cage systems.
The CSJ-13 threaded cage plate has a center SM05 (0.535‑40) threaded hole, compatible with Ø1/2 inch lens sleeves. The center threaded hole can also directly mount Ø1/2 inch optics up to 0.2 inch (5 mm) thick. For added convenience, both top and bottom faces feature an 8‑32 (M4) threaded hole for post mounting.
Technical Description

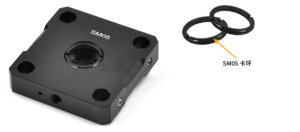

- The CSJ-13 threaded cage plate has a center SM05 (0.535‑40) threaded hole, compatible with Ø1/2 inch lens sleeves. The center threaded hole can also directly mount Ø1/2 inch optics up to 0.2 inch (5 mm) thick. (Two SM05 retaining rings are included; additional rings are available separately.)

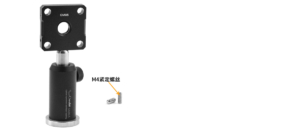

- For added convenience, both top and bottom faces feature an 8‑32 (M4) threaded hole for post mounting.

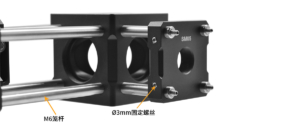

- M6 through holes accept 6 mm cage rods. Each cage rod through hole has one Ø3 mm setscrew on the side, which can be locked with a 5/64 inch (2.0 mm) hex key.
Assembly

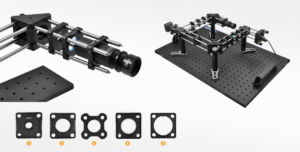

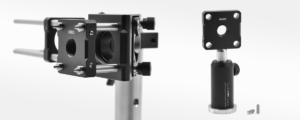

Application Examples
Engineering Drawings
Additional information
| Weight | 0.029 kg |
|---|---|
| Dimensions | 4.1 × 4.1 × 0.9 cm |
| Diameter | |
| Optic Type |
