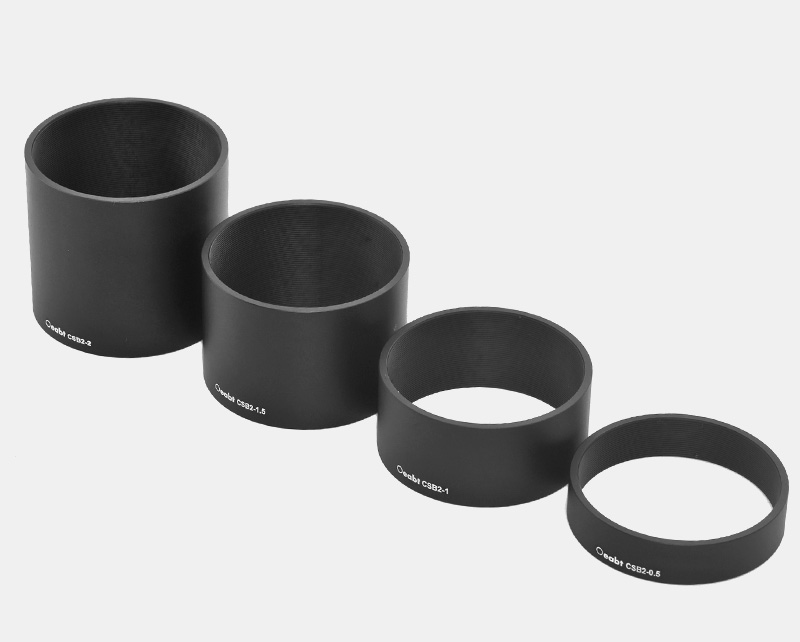

CSB2 Series Ø2 Inch Female-to-Female Lens Tube
Price range: $18.00 through $24.00
Similar products

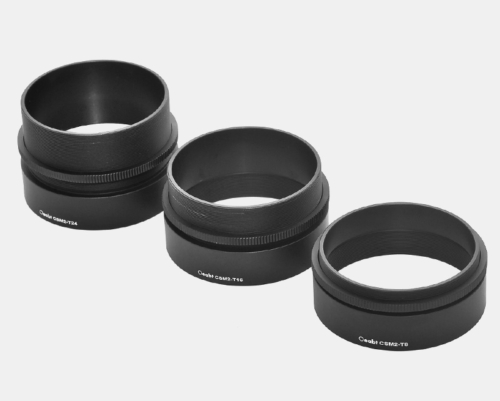

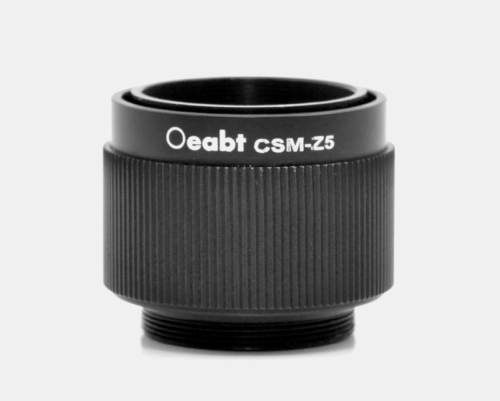

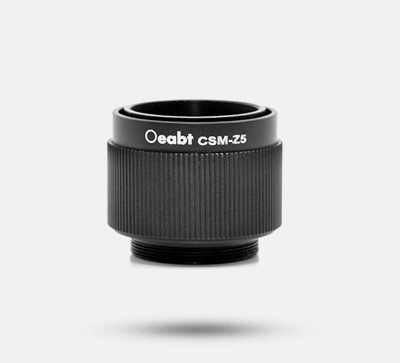

- CSM Series Lens Tube Adapters
- SM1-T Series 1-inch Diameter Sleeve Connectors
- CSM1-1 Series SM1 Lens Sleeve Connectors
- SA-PL Adjustable Positioning Sleeve
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Features SM2 (2.035″-40) threaded bores for mounting Ø2 inch (Ø50.8 mm) optical elements.
- Unlike CSA2 series stackable lens tubes, optical elements can be accessed from both ends.
- Multiple lens tubes can be stacked using lens tube connectors.
- Couples two components with SM2 external threads.
- Directly compatible with our 60 mm cage assembly system.
- Can serve as a lightshielding component for lens tubes to block light paths and provide opaque solutions.

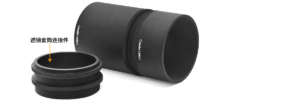

These Ø2 inch stackable lens tubes enable quick and simple construction of compact optical assemblies. One end of the internally threaded lens tube is unshouldered, allowing access to mounted optical elements from both ends. To connect these lens tubes endtoend, lens tube connectors are used. They directly engage all SM2 (2.035″-40) threaded components for flexible construction of complex optomechanical assemblies.
Technical Description

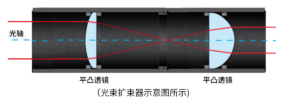

These lens tubes are ideal for building compact optical assemblies. The Ø2 inch lens tubes hold one or more optical elements (as shown in the beam expander diagram). Optical elements are separated and fixed with retaining rings positioned at the desired depth within the lens tube. (Two retaining rings are included; additional rings are available for separate purchase.)
These Ø2 inch stackable lens tubes enable quick and simple construction of compact optical assemblies. One end of the internally threaded lens tube is unshouldered, allowing access to mounted optical elements from both ends. To connect these lens tubes endtoend, lens tube connectors are used. They directly engage all SM2 (2.035″-40) threaded components for flexible construction of complex optomechanical assemblies.

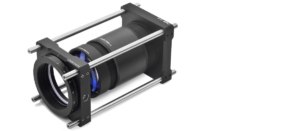

Compatible with our 60 mm cage assembly system. In cage systems, they can be used as lightshielding elements for lens tubes to block light paths and provide opaque solutions.
Multiple models are available.
Assembly

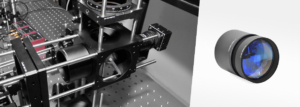

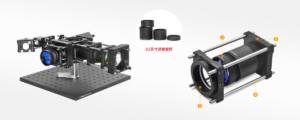

Application Examples
