Specifications: Ø25.2*31.8mm

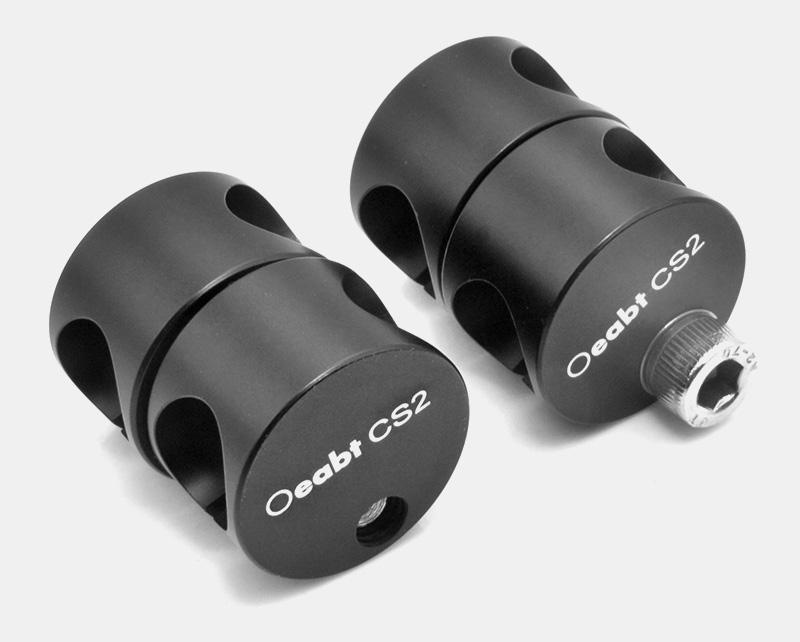

CS2 Adjustable Angle Post Clamps
$25.40
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Designed for Ø12mm stainless steel rods, enabling connection of two rods at any angle.
- Flexible design provides excellent clamping force.

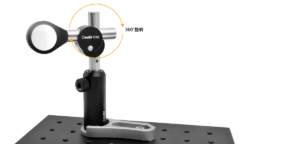

- 360° rough rotation with manual knobs for easy adjustment.
- Both rods are tightened simultaneously using knurled knobs.
The rod clamp facilitates connecting two Ø12mm stainless steel rods at any angle with 360° rotation capability. Its flexible clamping mechanism allows simultaneous tightening of both rods via side M6 cap screws—applying moderate finger pressure on the clamping screws enables quick and secure rod installation.
Technical Description
The rod clamp facilitates connecting two Ø12mm stainless steel rods at any angle with 360° rotation capability. Its flexible clamping mechanism allows simultaneous tightening of both rods via side M6 cap screws—applying moderate finger pressure on the clamping screws enables quick and secure rod installation.

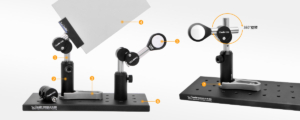

Application Schematic:

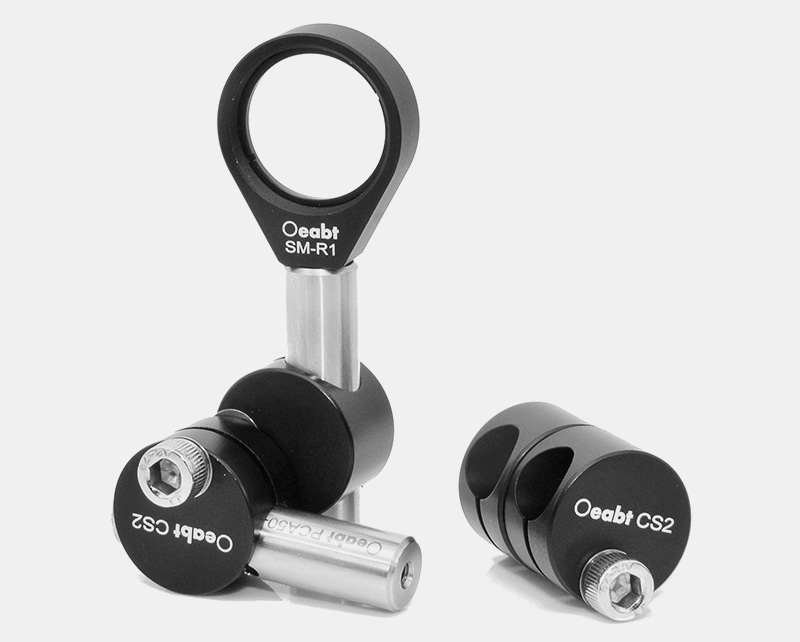

Assembly

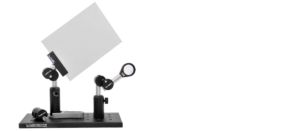

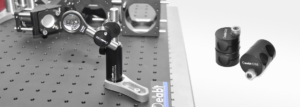

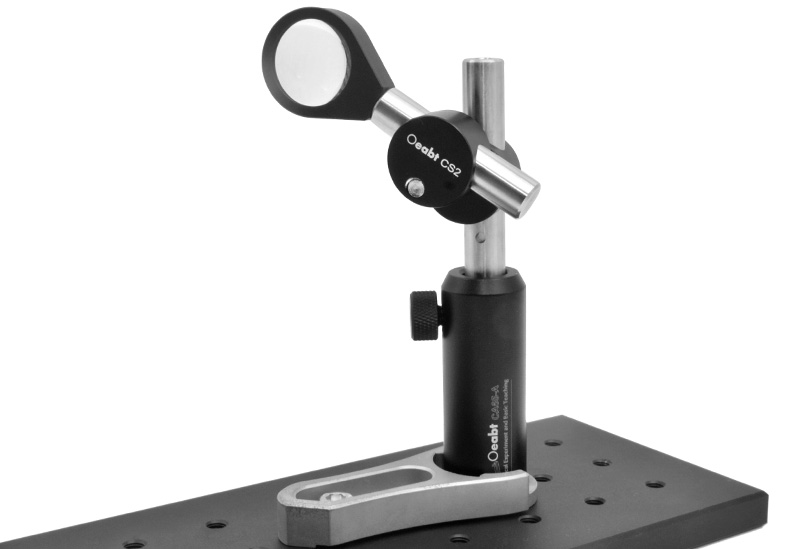

Application Example
Engineering Drawing Download
Additional information
| Weight | 0.0328 kg |
|---|---|
| Diameter | |
| Optic Type |
