Product Description
- Can build up to 6 segments of optomechanical components at right angles;
- Integrated aluminum construction with screw holes or counterbores for installation;
- Available in square sizes with M4 or M6 threads;

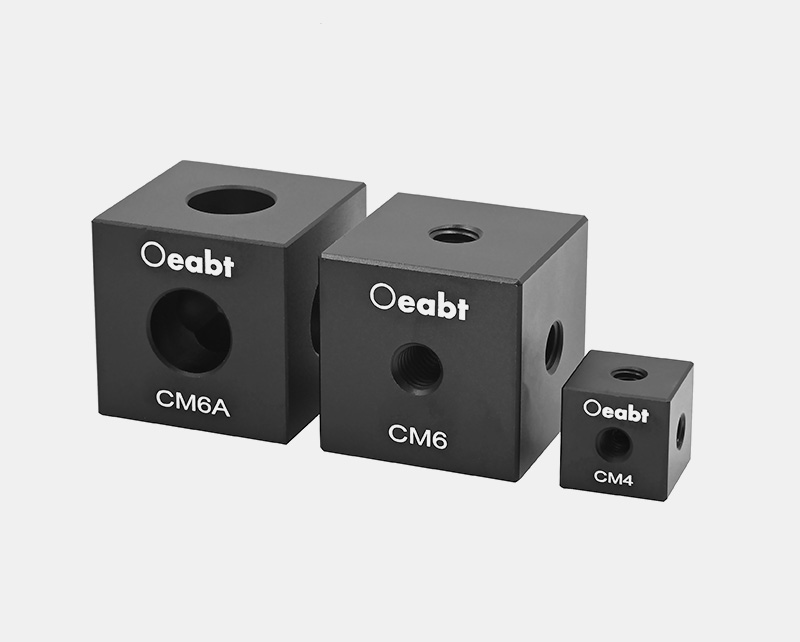

The construction cube is made of a solid aluminum block, featuring excellent rigidity and durability.
| Model | CM4 | CM6 | CM6A |
| Specification | 12.7*12.7*12.7mm | 25*25*25mm | 25.4*25.4*25.4mm |
| Thread Type | 6 M4 holes | 6 M6 holes | 6 M6 counterbores |
| Weight | 4.5g | 37.5g | 31.8g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The construction cube is manufactured from a solid aluminum block, boasting superior rigidity and durability. Each cube is designed with central threaded holes or counterbores on all six faces, allowing connection via stud bolts and supporting the assembly of up to 6 segments of optomechanical components.

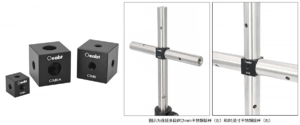

(2) These cubes are particularly suitable for use in the assembly of optomechanical components. For example, two Ø1 inch or 12mm connecting rods can be mounted at right angles on the cube to form a stable support structure, simplifying the connection method of the overall structure.

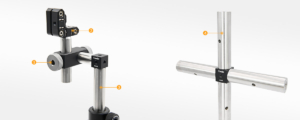

Assembly

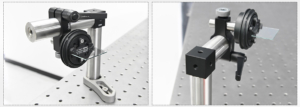

Application Examples
