Product Description Right-angle bracket for vertical installation; Constructs translation stages with XY and XYZ configurations; Integrated aluminum structure with excellent rigidity; The vertical assembly adapter plate is ideal for translation stages requiring XY configuration or XYZ
APT-90 & BASE-P Series Vertical Assembly Adapter Plate
Price range: $38.80 through $47.20
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Right-angle bracket for vertical installation;
- Constructs translation stages with XY and XYZ configurations;
- Integrated aluminum structure with excellent rigidity;

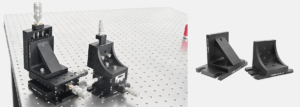

The vertical assembly adapter plate is ideal for translation stages requiring XY configuration or XYZ multi-axis configuration. Two sizes of mounting plates are suitable for most conventional translation stages.
Right-Angle Bracket
| Model | APT-90C | APT-90D |
| Specification | 76.2*73.2*63.5mm | 61.0*61.0*61.0mm |
| Screw Hole Type | Side End Face: 4 M6 holes;Bottom End Face: 2 M6 counterbores | Side End Face: 4 M6 counterbores;Bottom End Face: 4 M6 counterbores |
| Weight | 184.4g | 293.0g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Mounting Base Plate
| Model | BASE-P1 | BASE-P2 |
| Specification | 108.030.510.2mm | 111.875.79.1mm |
| Screw Hole Type | 4 M6 holes, 4 M6 counterbore slots | 2 M6 holes, 4 M6 counterbore slots |
| Weight | 125.4g | 193.0g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
The vertical assembly adapter plate is well-suited for translation stages that need XY configuration or XYZ multi-axis configuration. Two sizes of mounting plates are compatible with most conventional translation stages.

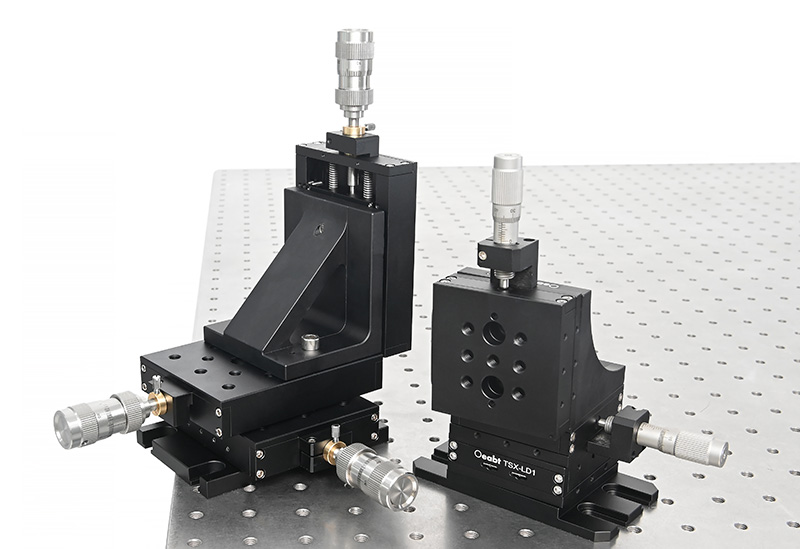

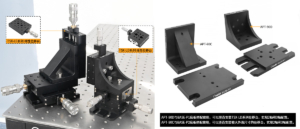

- The combination of APT-90D right-angle bracket and BASE-P1 base plate allows vertical installation of TSX-LD series translation stages, enabling 2-axis and 3-axis configurations.
- The combination of APT-90C right-angle bracket and BASE-P2 base plate allows vertical installation of translation stages with larger overall dimensions, realizing 2-axis and 3-axis configurations.

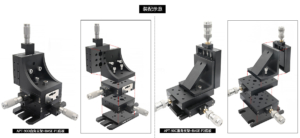

Assembly

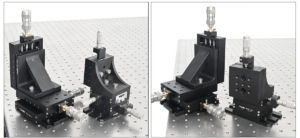

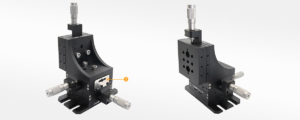

Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | APT-90C, APT-90D, BASE-P1, BASE-P2 |
| Optic Type |
