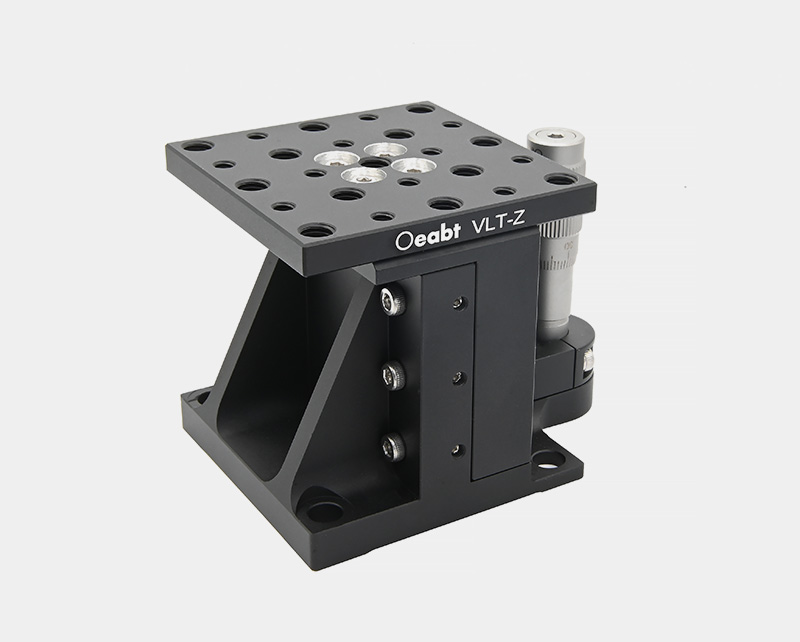

VLT-Z Vertical Translation Stage
$110.40
Similar products
- DRL51 Series Differential Regulator
- SM Series Vernier Micrometer Head
- KCH-A Series Bus Communication and Power Hub
- PACS-2 Split-type Three-channel PZT Controller
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Z-axis travel: 11 mm
- Micrometer drive: 0.5 mm per revolution
- Top plate with M4 and M6 threaded hole arrays
- Mountable to optical breadboards or platforms via bottom through holes

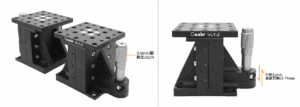

The VLT-Z vertical translation stage offers a height adjustment range of 11 mm, with an operating height from 63.0 mm to 74.0 mm.
| Model | VLT-Z |
| Dimensions | 83.3 × 61.0 × 63.0 mm |
| Travel Range | 11 mm |
| Adjustment Accuracy | 0.5 mm per revolution, resolution 10 μm |
| Hole Types | 12×M4, 13×M6, 4×Ø6.4 mm (through holes) |
| Weight | 418.4 g |
| Material | 7075 Aluminum Alloy |
Technical Notes
The VLT-Z vertical translation stage provides an 11 mm height adjustment range (operating height: 63.0 mm – 74.0 mm). The precision micrometer drive features 10 μm divisions and 0.5 mm vertical travel per revolution, enabling precise positioning for optical system assembly and alignment.

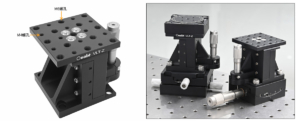

The top mounting plate is equipped with 13 M6 and 12 M4 threaded holes, supporting installation of various standard optical components and accessories for flexible system integration. The stage uses cross-roller bearings to ensure smooth and consistent motion throughout the travel range.

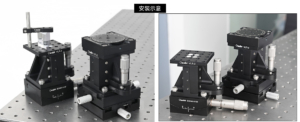

Assembly

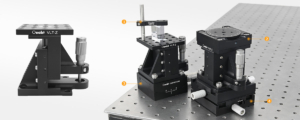

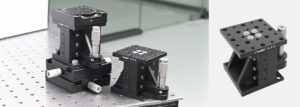

Application Examples
Engineering Drawings
Additional information
| Weight | 0.4184 kg |
|---|---|
| Dimensions | 8.33 × 6.1 × 6.3 cm |
| Optic Type |
