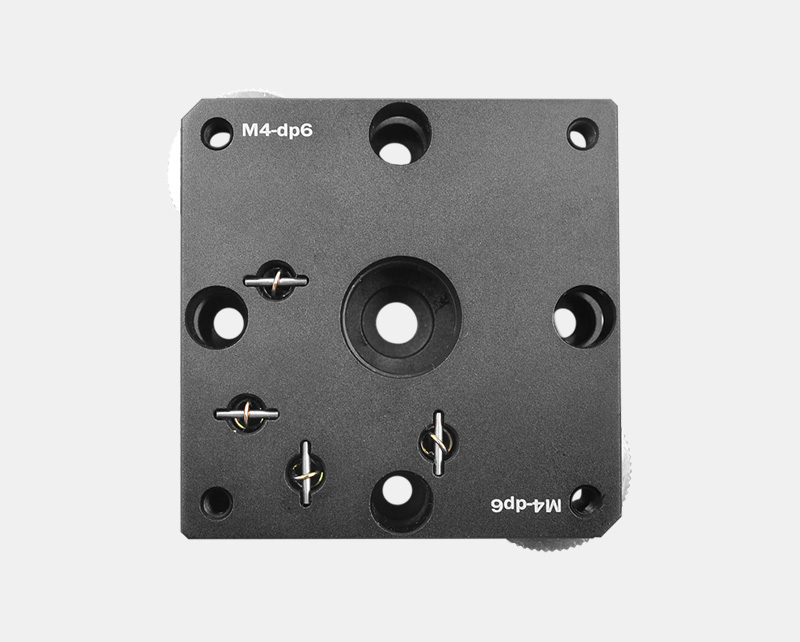

Product Description The horizontal tilt stage can be combined with translation stages, linear stages, optical lens calibration and adjustment sensors for positioning applications Maximum adjustable tilt angle of ±4° with a load capacity of 4 kgf
BK60A Series Manual Horizontal Tilt Stage
$35.00
Similar products
- DRL51 Series Differential Regulator
- SM Series Vernier Micrometer Head
- KCH-A Series Bus Communication and Power Hub
- PACS-2 Split-type Three-channel PZT Controller
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- The horizontal tilt stage can be combined with translation stages, linear stages, optical lens calibration and adjustment sensors for positioning applications
- Maximum adjustable tilt angle of ±4° with a load capacity of 4 kgf
- 6 mm through holes on the base for secure fixation
- 16 mm threaded holes on the working tabletop for adapting various optical components
- M4 threaded holes at the four corners of the tabletop for flexible mounting of all types of optical components
This horizontal tilt stage is applicable for positioning in combination with translation stages, linear stages and optical lens calibration & adjustment sensors, as well as for 2D position adjustment of optical components and fine spatial positioning of XY axes.
Technical Notes
The horizontal tilt stage is suitable for positioning when combined with translation stages, linear stages and optical lens calibration & adjustment sensors. It is also used for 2D position adjustment of optical components and fine spatial positioning of XY axes.
Assembly
Application Examples
Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | BK60A-M6, BK60A-22 |
| Optic Type |
