Product Description Modular manual differential driver; Suitable for our Nano series flexible displacement stages or linear displacement stages; Coarse adjustment stroke: 13mm, 0.5mm per turn; Fine adjustment stroke: 300μm, 50μm per turn; Theoretical fine adjustment accuracy:

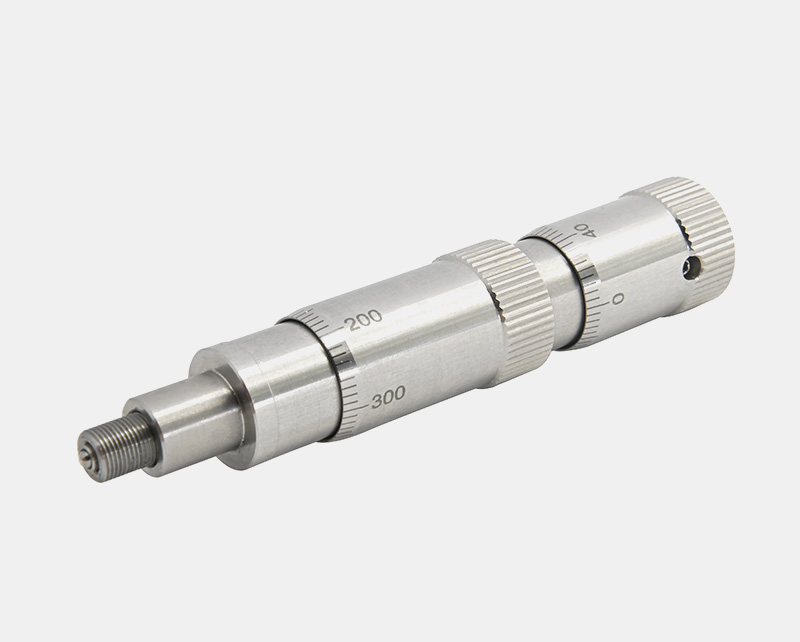

DRL51 Series Differential Regulator
$192.00
Similar products
- SM Series Vernier Micrometer Head
- KCH-A Series Bus Communication and Power Hub
- PACS-2 Split-type Three-channel PZT Controller
- M6 Series Fine Adjustment Screws
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Modular manual differential driver;
- Suitable for our Nano series flexible displacement stages or linear displacement stages;
- Coarse adjustment stroke: 13mm, 0.5mm per turn;
- Fine adjustment stroke: 300μm, 50μm per turn;
- Theoretical fine adjustment accuracy: 1μm;
- Compatible with displacement stages with Ø9.5mm or M14*1.0 mounting holes;
The DRL series regulators provide high resolution and repeatability. The lever mechanism amplifies the resolution of the high-precision fine adjustment thread, resulting in small axial displacement.
| Coarse Adjustment Stroke | 13mm, 0.5mm/turn |
| Fine Adjustment Stroke | 300μm, 50μm/turn |
| Theoretical Accuracy | 1μm |
| Material | 304 Stainless Steel |
| Model | DRL51-A | DRL51-C |
| Specification | Ø20.0*72.8mm | Ø20.0*82.8mm |
| Mounting Hole Diameter | Ø9.5mm | M14*1.0 |
| Weight | 88.0g | 95.7g |
Technical Description
(1) The DRL series regulators provide high resolution and repeatability. The lever mechanism amplifies the resolution of the high-precision fine adjustment thread, resulting in small axial displacement. This unique method provides uniform and smooth movement, largely independent of the load.

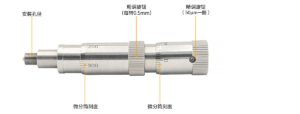

(2) Two knobs are used for coarse and fine adjustment. The coarse adjustment can provide an accuracy of 0.5mm per turn within the stroke, while the fine adjustment has a stroke of 300µm and 50µm per turn (the ratio of the fine scale to the distance is not a linear relationship). The modular adapter can be connected to mounting holes with Ø9.5mm or M14*1.0.

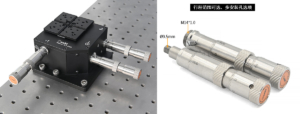

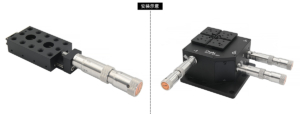

Assembly

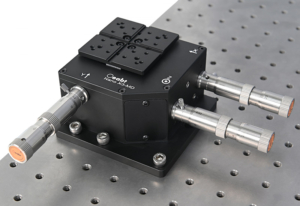

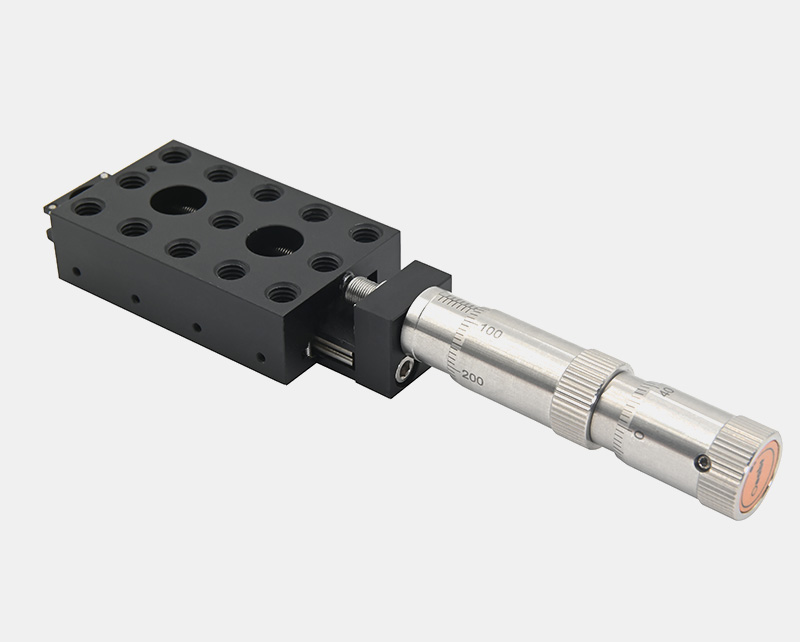

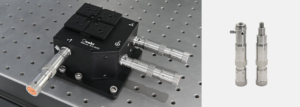

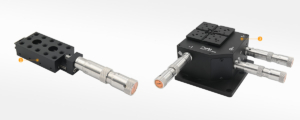

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Model | DRL51-A, DRL51-C |
| Optic Type |
