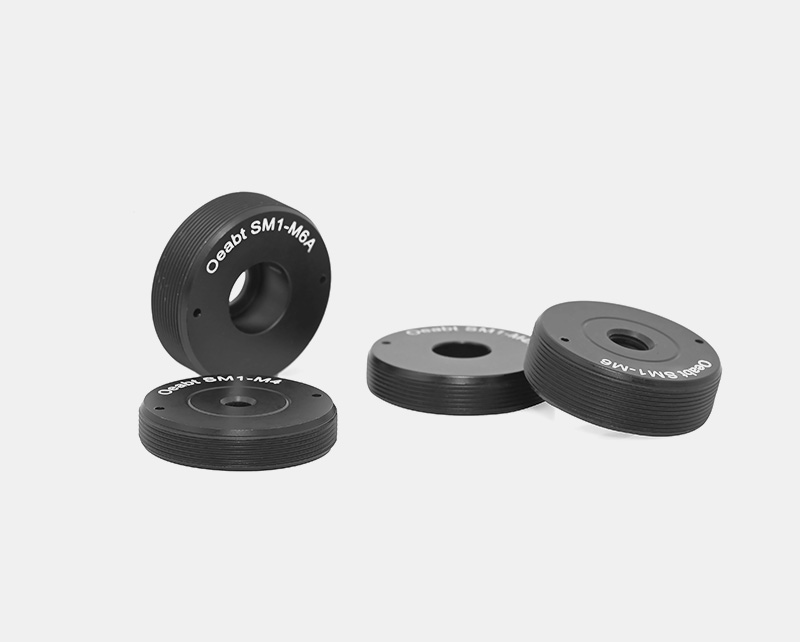

SM1-M Series SM1 Threaded Adapters
$10.00
Description
Product Description
- Integrates standard optical-mechanical components with SM1 threaded components;
- SM1 (1.035”-40) external thread;
- Converts SM1 to M4/M6;
- Internal threaded hole or counterbored hole optional;
The SM1-M Series Adapters feature SM1 (1.035”-40) external threads, with one M4/M6 threaded hole or counterbored hole at the center. They enable the integration of standard M4/M6 optical-mechanical components with elements equipped with SM1 standard threads.
| Model | SM1-M4 | SM1-M4A | SM1-M6 | SM1-M6A |
| Specification | Ø26.2*5.7mm | Ø26.2*5.7mm | Ø26.2*8.3mm | Ø26.2*8.3mm |
| External Thread | SM1 (1.035”-40) external thread | SM1 (1.035”-40) external thread | SM1 (1.035”-40) external thread | SM1 (1.035”-40) external thread |

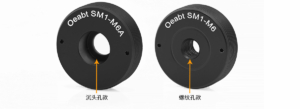

| Central Aperture | M4 threaded hole | Ø4.8mm counterbored hole | M6 threaded hole | Ø6.7mm counterbored hole |
| Weight | 7.7g | 7.3g | 10.9g | 10.0g |
| Material | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy | 7075 Aluminum Alloy |
Technical Description
(1) The SM1-M Series Adapters are equipped with SM1 (1.035”-40) external threads, with one M4/M6 threaded hole or counterbored hole at the center. They can integrate standard M4/M6 optical-mechanical components with elements having SM1 standard threads.
(2) When the counterbored hole type adapter is not locked, it facilitates the installation of components and allows free-angle rotation.

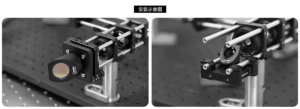

Assembly

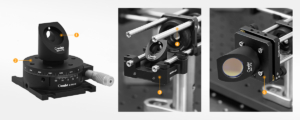

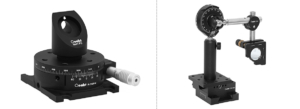

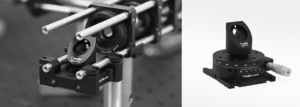

Application Examples
Engineering Drawing
Additional information
| Weight | N/A |
|---|---|
| Model | SM1-M4, SM1-M4A, SM1-M6, SM1-M6A |
