RK-T Series Kinematic Rotation Mounts

Description

• Integrates tilt (pitch/roll) and rotation adjustment in one unit.
• Dual-axis or tri-axis lockable, offering ±4° tilt (pitch/roll) and 6.4mm Z-axis translation.
• 360° rotatable mount with 2° graduation, lockable.

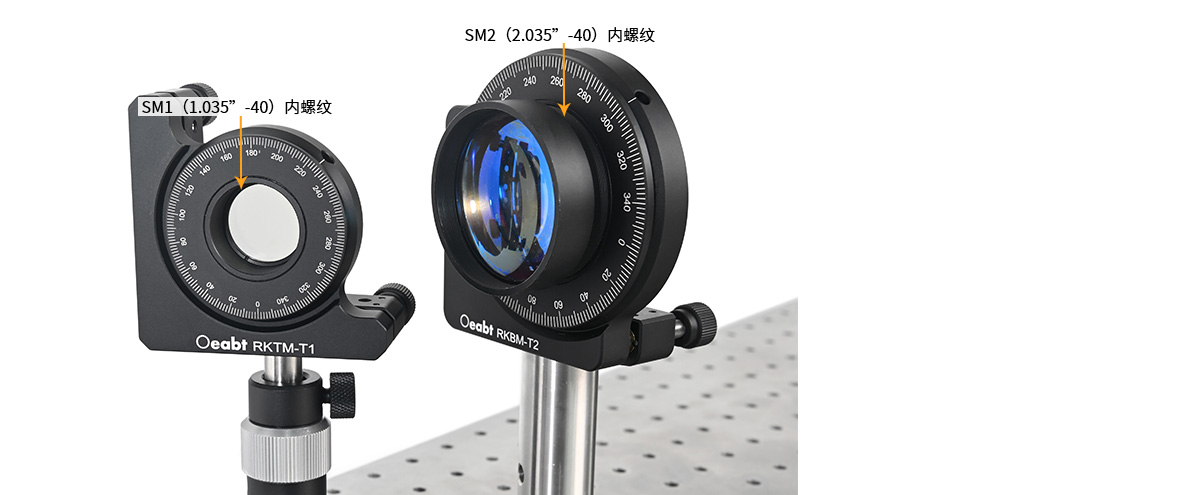

• Features SM1 and SM2 internal threads, compatible with Ø1 inch (≤11.9mm thick) and Ø2 inch (≤12.0mm thick) optical components.
• Equipped with M4 counterbores at the base, supporting left-hand and right-hand installation.

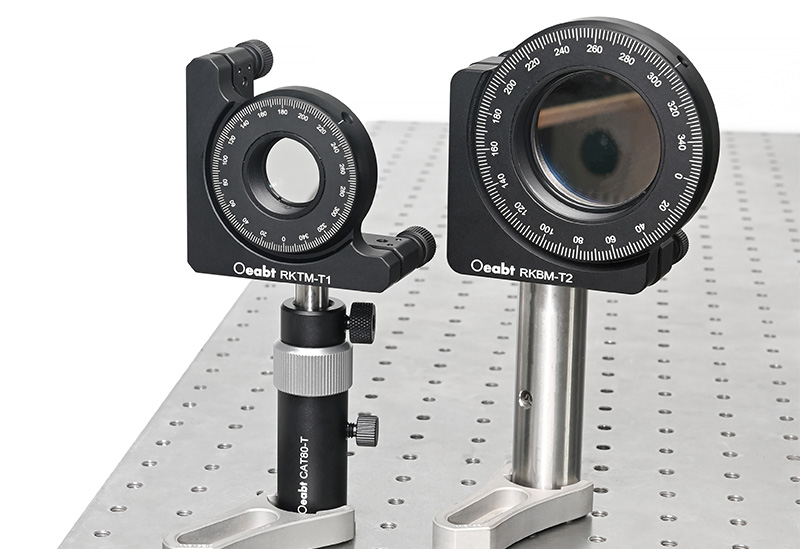

The optical rotation adjustment mount combines the functions of our tri-axis/dual-axis adjustment mount and rotation mount. It can rotate continuously 360° and provide ±4° tilt (pitch/roll) adjustment, making it ideal for applications requiring precise control of the angular position and rotation of optical components—such as polarizing optical elements like linear polarizers or waveplates.

Technical Description

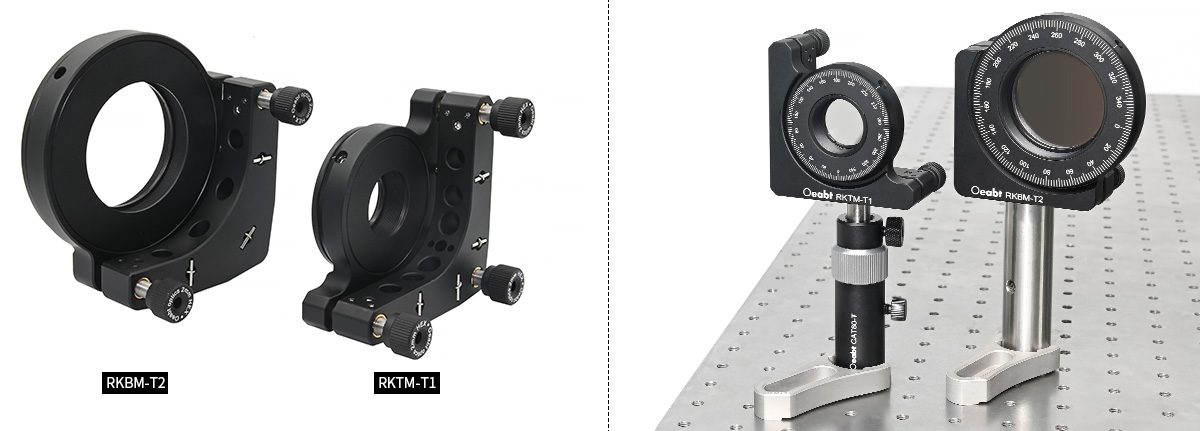

• The mount integrates tilt (pitch/roll) and rotation adjustment, with lockable axes. RKTM-T1 supports tri-axis (XYZ, R) adjustment, while RKBM-T2 supports dual-axis (XY, R) adjustment. Both enable 360° continuous rotation and ±4° tilt, suitable for polarizing optical components that require precise angular positioning.

• RKTM-T1 is designed to hold Ø1 inch optical components (≤11.9mm thick), and RKBM-T2 for Ø2 inch components (≤12.0mm thick). Components are secured with included SM retaining rings. It is also compatible with lens tube series, which can be screwed into the mount to fix thicker optical components.

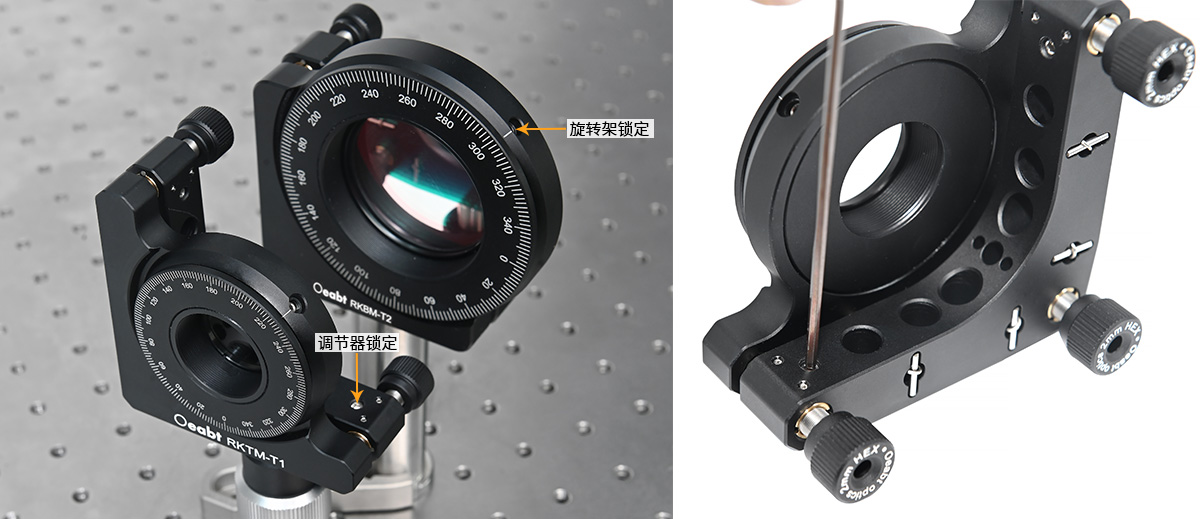

• The mount’s rotation can be fixed with a locking screw, tightened or loosened using a 2mm hex wrench. Each M6*0.35mm adjuster is equipped with a side locking screw, also lockable via a 2mm hex wrench.

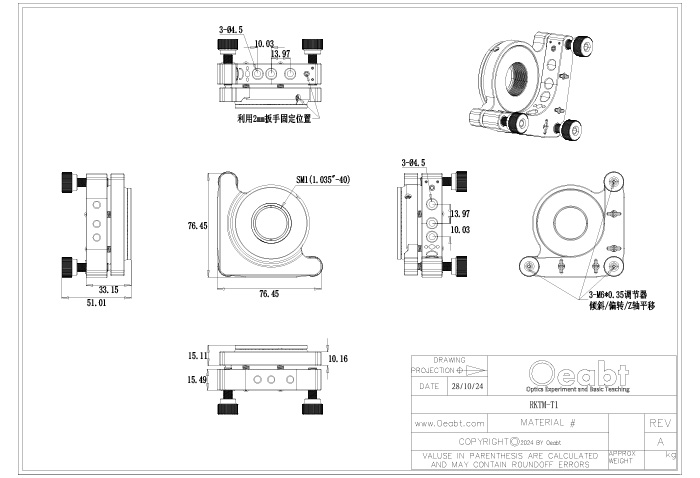

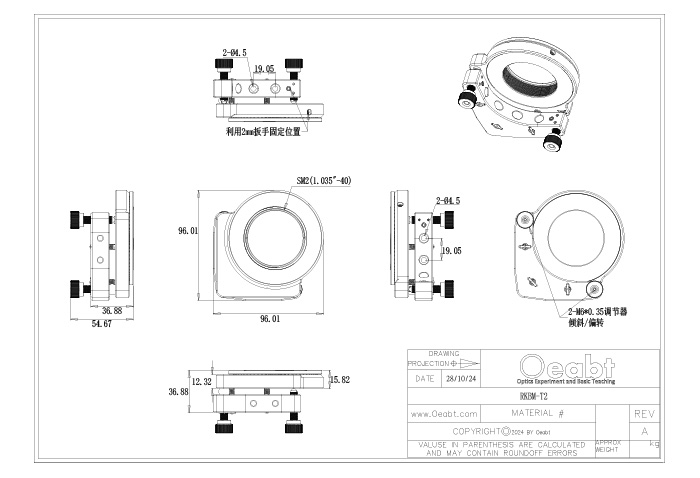

Engineering Drawing
