PMK2-45 45° Adapter

Description

Product Description

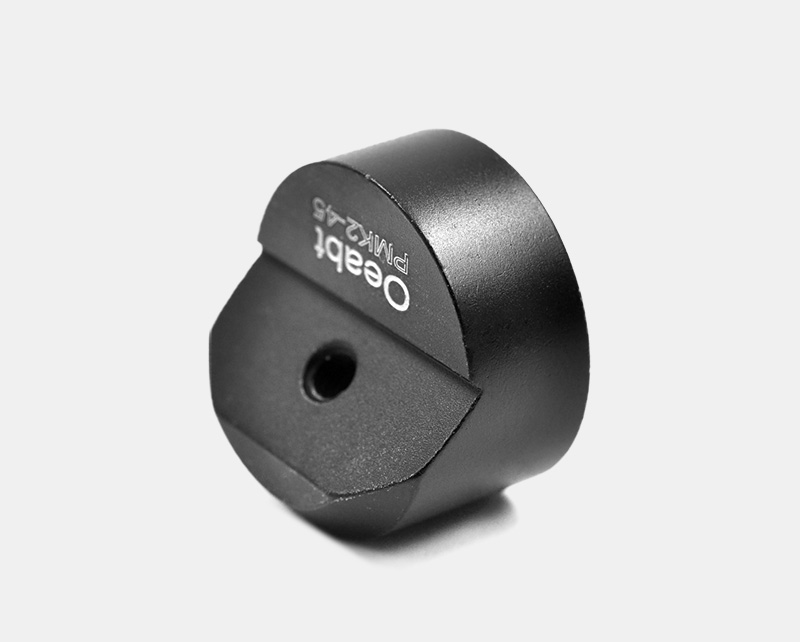

• Used for 45° tilting of frames, with built-in M6 screw holes on the bottom surface;
• Adapter block dimensions: Ø25×17mm, compatible with CF50-S columns;
• Made of 6061-T6 aluminum alloy;

This 25mm-diameter adapter serves as a connecting part for 2D standard frames. Installed under the frame, it provides an upward 45° tilt—horizontally incident light will be reflected vertically. It can be used with MK series frames.

Technical Description

The 25mm-diameter adapter functions as an adapter for 2D standard frames. Mounted beneath the frame, it enables an upward 45° tilt, allowing horizontally incident light to reflect vertically. It is compatible with MK series frames.

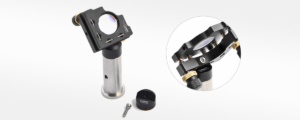

Assembly

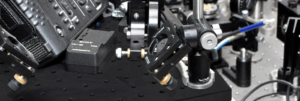

Application Examples

Engineering Drawings

PMK2-45 Engineering Drawing
