Product Description Mounting fixtures for Ø12mm or 12.7mm rods at different angles. Angle options: Fixed 90° (single limit hole); Fixed 45° (left or right direction, two limit holes); Fixed 90° to each other or 0° parallel
PC12 Series Ø12mm Angle Post Clamp
Price range: $12.00 through $16.00
Similar products
- TAMH Series Ø2-Inch Three-Axis Adjustment Mounts
- FWO-A2 Dual-Wheel Filter Wheel
- PJ30-A Series Post Mount Beam
- S/N0002_3 Universal Joint
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- Mounting fixtures for Ø12mm or 12.7mm rods at different angles.
- Angle options: Fixed 90° (single limit hole); Fixed 45° (left or right direction, two limit holes); Fixed 90° to each other or 0° parallel installation (two limit holes); Continuous 360° rotation (two limit holes).
- Aluminum thumb screws provide the clamping force required for locking.
The PC12 series angle fixtures are multi-functional assembly accessories designed to optimize rod installation.
| Model | Dimensions | Angle Installation | Limit Holes | Thread Type | Weight | Compatible Rods |

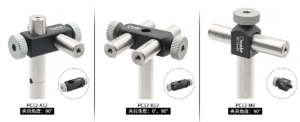

| PC12-A12 | 52.8*15.7*15.7mm | 90° fixed | 2 places | / | 21.7g | Ø12mm (Ø12.7mm) rods |
| PC12-B12 | 63.2*15.8*15.8mm | 0° fixed, 90° fixed | 2 places | 1x M4 (counterbore) | 25.1g | Ø12mm (Ø12.7mm) rods |
| PC12-M6 | 29.4*15.8*15.8mm | 90° fixed | 1 place | 1x M6 (bolt) | 12.1g | Ø12mm (Ø12.7mm) rods |

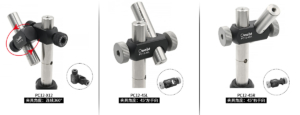

| PC12-45R | 55.5*15.8*15.8mm | 45° right-hand fixed | 2 places | / | 20.7g | Ø12mm (Ø12.7mm) rods |
| PC12-45L | 55.5*15.8*15.8mm | 45° left-hand fixed | 2 places | / | 20.7g | Ø12mm (Ø12.7mm) rods |
| PC12-X12 | 46.9*33.5*15.8mm | Continuous 360° rotation | 2 places | / | 38.2g | Ø12mm (Ø12.7mm) rods |

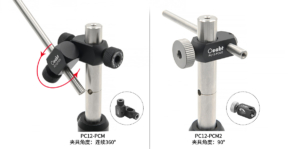

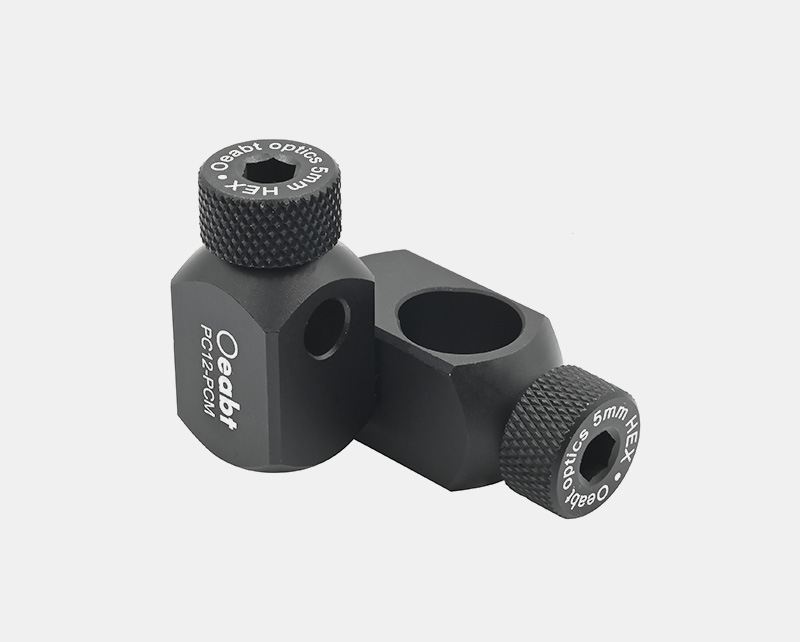

| PC12-PCM | 47.4*33.1*15.8mm | Continuous 360° rotation | 2 places | / | 40.5g | Ø6mm cage rods; Ø12mm (12.7mm) rods |

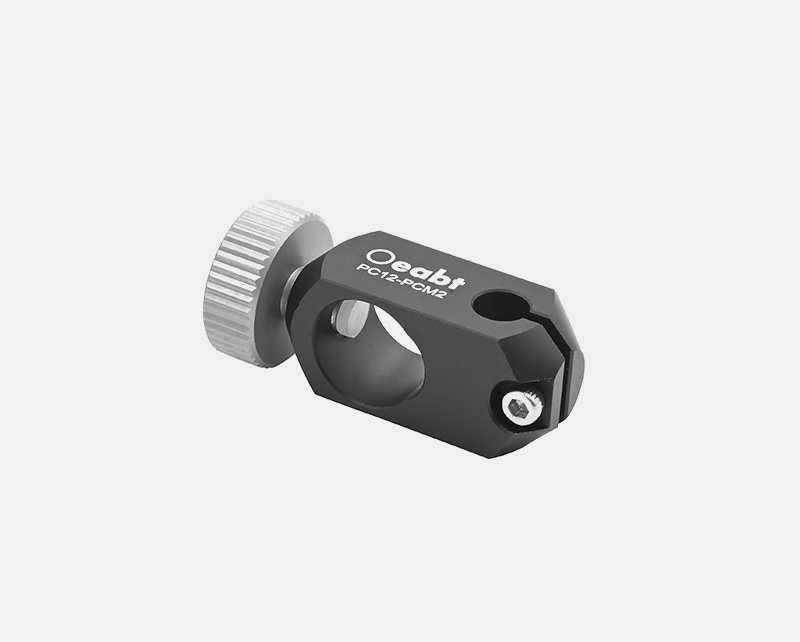

| PC12-PCM2 | 40.3*15.2*14.5mm | 90° fixed | 2 places | / | 13.5g | Ø12mm (Ø12.7mm) rods |
Technical Description
The PC12 series angle fixtures are multi-functional assembly accessories designed to optimize rod installation. They can firmly position Ø12mm (Ø12.7mm) rods in various angular directions, including fixed 0°, 90° installation or continuous 360° rotation, enabling flexible and compact rigid structure layouts.

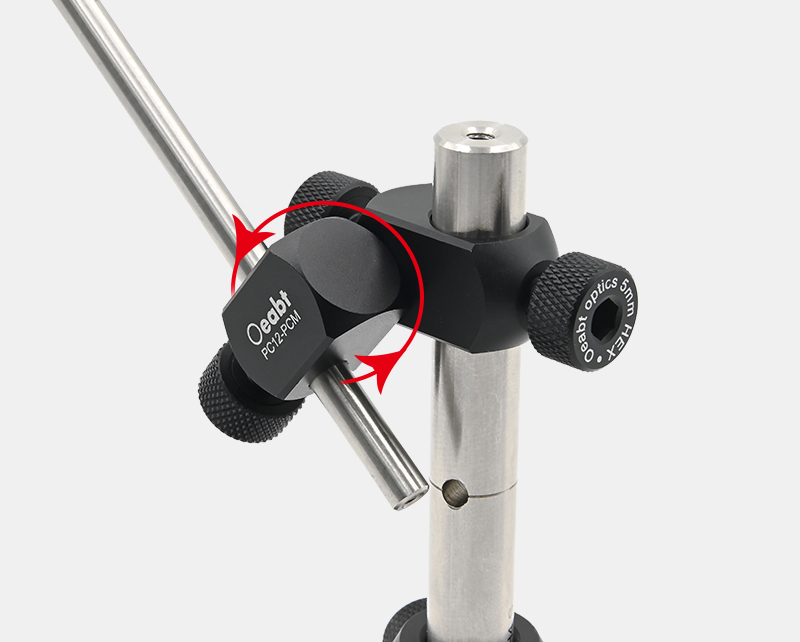

In addition, the angle fixtures can effectively combine the installation of Ø12mm (Ø12.7mm) rods and cage components, compatible with the option of installing Ø6mm support rods onto Ø12mm rods. They are used for vertical installation and also available in versions with continuous 360° adjustment.

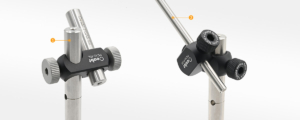

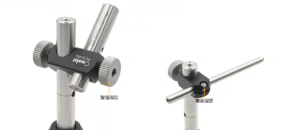

Each rod has an independent locking mechanism, and aluminum thumb screws can firmly fix the rods. Combined with rotational angles, it facilitates independent adjustment of each component.
Assembly
Manual assembly and installation

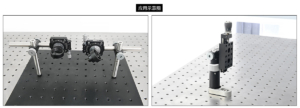

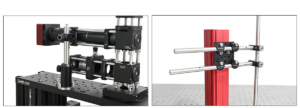

Application Example
Engineering Drawing Download
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | PC12-A12, PC12-B12, PC12-M6, PC12-45R, PC12-45L, PC12-X12, PC12-PCM, PC12-PCM2 |
| Diameter | |
| Optic Type |
