Product Description The internal structure of the vibration isolation table adopts a three-layer honeycomb sandwich structure, which can effectively reduce vibration. Top panel thickness: 6 mm, made of 430 high-permeability nickel-alloy stainless steel with sandblasted finish.

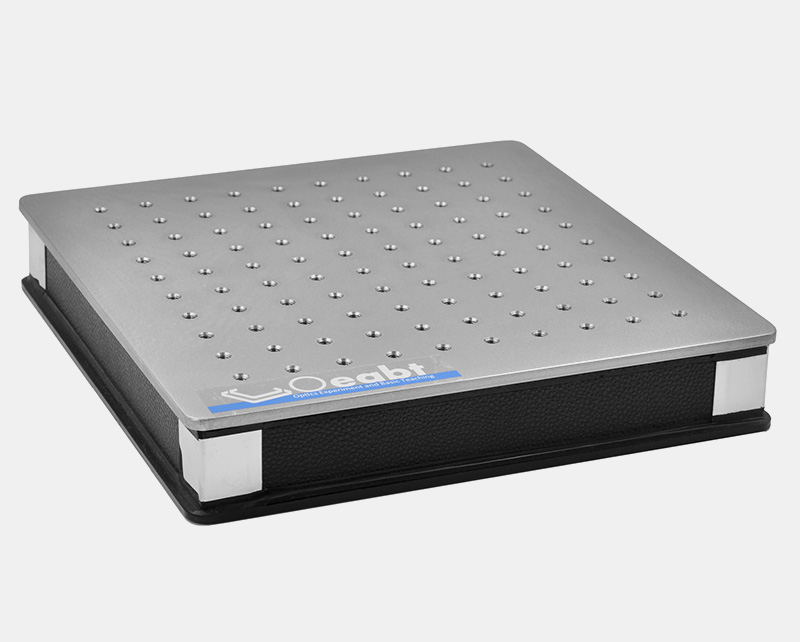

OTD-S Series Vibration Isolation Breadboard
Price range: $156.00 through $491.80
Similar products
- OPH-86 Series Vibration Isolation Table Stand
- OP Series Optical Vibration Isolation Platform
- OTD-QF-S6090 Desktop Pneumatic Vibration Isolation Platform
- Breadboard Handle
Compatible accessories
- Heat-resistant Focusing Lens Focal Lens Plastic Lens 200℃ for 200-500mW Laser
- Heat-resistant Collimating Lens Focusing Lens Plastic Lens 200℃ for <500mW Laser
- Laser Beam Homogenizer / Optical Diffuser Lens Divergence Angle 9° for Red Green Laser
- Laser Alignment Card Double-frequency Card IR Detection Display Card 900-1100nm
Related categories
Description
Product Description
- The internal structure of the vibration isolation table adopts a three-layer honeycomb sandwich structure, which can effectively reduce vibration.

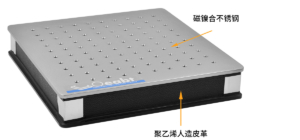

- Top panel thickness: 6 mm, made of 430 high-permeability nickel-alloy stainless steel with sandblasted finish.
- Bottom plate thickness: 5 mm, made of carbon steel with oxidation treatment.
- Side wall: 2 mm thick carbon steel, covered with polyethylene artificial leather.
- Flatness: Tolerance of 0.05 mm within any 60×60 mm area.

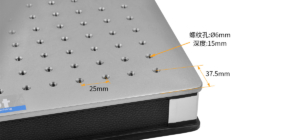

- Panel threaded holes: Metric M6, thread depth: 15 mm.
- Grid spacing: 25×25 mm, edge margin: 37.5 mm.
The vibration isolation table uses a three-layer honeycomb sandwich structure to effectively attenuate vibration. The 6 mm top plate is made of 430 high-permeability nickel-alloy stainless steel and processed by a large-scale surface grinding machine, with a panel flatness of 0.1 mm per meter. This optical platform is widely used in optics, electronics, precision machinery, aerospace, precision chemistry, nondestructive testing, biochemical research and other fields. Its dynamic mechanical properties directly affect the accuracy and reliability of test results. The optical platform eliminates the interference of ground vibration on the worktable and achieves working stability through elastic support.
Technical Specifications
| Item | Details | ||
| Model | OTD-S3030 | OTD-S4060 | OTD-S6060 |
| Dimensions | 300×300×51.5 mm | 400×600×51.5 mm | 600×600×51.5 mm |
| Weight | 10.5 kg | 29 kg | 43 kg |
| Top Plate | 6.0 mm 430 magnetic nickelalloy steel, sandblasted | ||
| Bottom Plate | 6.0 mm 430 magnetic nickelalloy steel, sandblasted | ||
| Side Wall | 2.0 mm carbon steel with polyethylene artificial leather cover | ||
| Damping Method | Orifice damping | ||
| Top Surface | Full M6 threaded hole matrix (25×25 mm), 37.5 mm edge margin | ||
| Surface Flatness | +0.1 mm (over any 600×600 mm area) | ||
| Threaded Holes | Metric M6, 15 mm deep | ||
| Natural Frequency | ＜2.5 Hz | ||
| Flatness | ＜0.05 mm/m² | ||
| Load Capacity | 100 kg/m² | ||
| Surface Roughness | ＜0.8 μm | ||
| Repeat Positioning Accuracy | ＜0.05 mm |
Notes
- Standard hole pattern: Metric M6, 25×25 mm matrix, 37.5 mm edge margin.
- Natural frequency of the table: ＜5 Hz. The panel is made of 430 highpermeability nickelalloy stainless steel, processed by a large surface grinder; the frame is trimmed with polyethylene artificial leather.

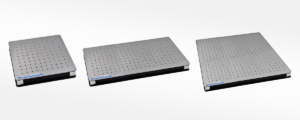

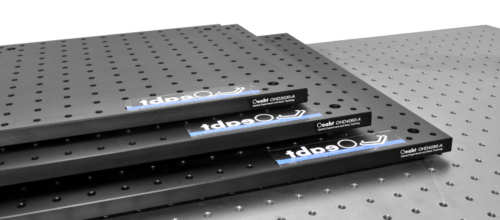

- Multiple sizes are available.
Assembly

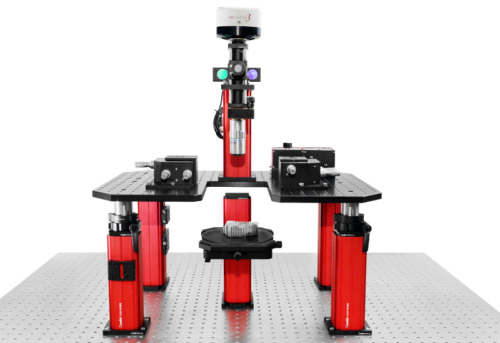

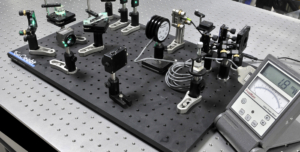

Application Examples

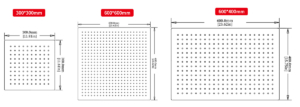

Engineering Drawings
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | OTD-S3030, OTD-S4060, OTD-S6060 |
| Diameter | |
| Optic Type |
